第9章 PrometheusAlert告警聚合
1.介绍
项目地址：
https://github.com/feiyu563/PrometheusAlert
PrometheusAlert是开源的运维告警中心消息转发系统，支持主流的监控系统Prometheus、Zabbix，日志系统Graylog2，Graylog3、数据可视化系统Grafana、SonarQube。阿里云-云监控，以及所有支持WebHook接口的系统发出的预警消息，支持将收到的这些消息发送到钉钉，微信，email，飞书，腾讯短信，腾讯电话，阿里云短信，阿里云电话，华为短信，百度云短信，容联云电话，七陌短信，七陌语音，TeleGram，百度Hi(如流)，Kafka等。
2.安装部署
如果是k8s环境，直接运行官方提供好的yaml资源配置清单即可，按照需求修改并填写相关信息后apply应用即可。
cat > PrometheusAlert-Deployment.yaml << 'EOF'
# apiVersion: v1
# kind: Namespace
# metadata:
# name: monitoring
---
apiVersion: v1
data:
app.conf: |
#---------------------↓全局配置-----------------------
appname = PrometheusAlert
#登录用户名
login_user=prometheusalert
#登录密码
login_password=prometheusalert
#监听地址
httpaddr = "0.0.0.0"
#监听端口
httpport = 8080
runmode = dev
#设置代理 proxy = http://123.123.123.123:8080
proxy =
#开启JSON请求
copyrequestbody = true
#告警消息标题
title=PrometheusAlert
#链接到告警平台地址
GraylogAlerturl=http://graylog.org
#钉钉告警 告警logo图标地址
logourl=https://raw.githubusercontent.com/feiyu563/PrometheusAlert/master/doc/alert-center.png
#钉钉告警 恢复logo图标地址
rlogourl=https://raw.githubusercontent.com/feiyu563/PrometheusAlert/master/doc/alert-center.png
#短信告警级别(等于3就进行短信告警) 告警级别定义 0 信息,1 警告,2 一般严重,3 严重,4 灾难
messagelevel=3
#电话告警级别(等于4就进行语音告警) 告警级别定义 0 信息,1 警告,2 一般严重,3 严重,4 灾难
phonecalllevel=4
#默认拨打号码(页面测试短信和电话功能需要配置此项)
defaultphone=xxxxxxxx
#故障恢复是否启用电话通知0为关闭,1为开启
phonecallresolved=0
#是否前台输出file or console
logtype=file
#日志文件路径
logpath=logs/prometheusalertcenter.log
#转换Prometheus,graylog告警消息的时区为CST时区(如默认已经是CST时区，请勿开启)
prometheus_cst_time=0
#数据库驱动，支持sqlite3，mysql,postgres如使用mysql或postgres，请开启db_host,db_port,db_user,db_password,db_name的注释
db_driver=sqlite3
#db_host=127.0.0.1
#db_port=3306
#db_user=root
#db_password=root
#db_name=prometheusalert
#是否开启告警记录 0为关闭,1为开启
AlertRecord=0
#是否开启告警记录定时删除 0为关闭,1为开启
RecordLive=0
#告警记录定时删除周期，单位天
RecordLiveDay=7
# 是否将告警记录写入es7，0为关闭，1为开启
alert_to_es=0
# es地址，是[]string
# beego.Appconfig.Strings读取配置为[]string，使用";"而不是","
to_es_url=http://localhost:9200
# to_es_url=http://es1:9200;http://es2:9200;http://es3:9200
# es用户和密码
# to_es_user=username
# to_es_pwd=password
# 长连接最大空闲数
maxIdleConns=100
# 热更新配置文件
open-hotreload=0
#---------------------↓webhook-----------------------
#是否开启钉钉告警通道,可同时开始多个通道0为关闭,1为开启
open-dingding=1
#默认钉钉机器人地址
ddurl=https://oapi.dingtalk.com/robot/send?access_token=xxxxx
#是否开启 @所有人(0为关闭,1为开启)
dd_isatall=1
#是否开启钉钉机器人加签，0为关闭,1为开启
# 使用方法：https://oapi.dingtalk.com/robot/send?access_token=XXXXXX&secret=mysecret
open-dingding-secret=0
#是否开启微信告警通道,可同时开始多个通道0为关闭,1为开启
open-weixin=1
#默认企业微信机器人地址
wxurl=https://qyapi.weixin.qq.com/cgi-bin/webhook/send?key=xxxxx
#是否开启飞书告警通道,可同时开始多个通道0为关闭,1为开启
open-feishu=1
#默认飞书机器人地址
fsurl=https://open.feishu.cn/open-apis/bot/hook/xxxxxxxxx
# webhook 发送 http 请求的 contentType, 如 application/json, application/x-www-form-urlencoded，不配置默认 application/json
wh_contenttype=application/json
#---------------------↓腾讯云接口-----------------------
#是否开启腾讯云短信告警通道,可同时开始多个通道0为关闭,1为开启
open-txdx=0
#腾讯云短信接口key
TXY_DX_appkey=xxxxx
#腾讯云短信模版ID 腾讯云短信模版配置可参考 prometheus告警:{1}
TXY_DX_tpl_id=xxxxx
#腾讯云短信sdk app id
TXY_DX_sdkappid=xxxxx
#腾讯云短信签名 根据自己审核通过的签名来填写
TXY_DX_sign=腾讯云
#是否开启腾讯云电话告警通道,可同时开始多个通道0为关闭,1为开启
open-txdh=0
#腾讯云电话接口key
TXY_DH_phonecallappkey=xxxxx
#腾讯云电话模版ID
TXY_DH_phonecalltpl_id=xxxxx
#腾讯云电话sdk app id
TXY_DH_phonecallsdkappid=xxxxx
#---------------------↓华为云接口-----------------------
#是否开启华为云短信告警通道,可同时开始多个通道0为关闭,1为开启
open-hwdx=0
#华为云短信接口key
HWY_DX_APP_Key=xxxxxxxxxxxxxxxxxxxxxx
#华为云短信接口Secret
HWY_DX_APP_Secret=xxxxxxxxxxxxxxxxxxxxxx
#华为云APP接入地址(端口接口地址)
HWY_DX_APP_Url=https://rtcsms.cn-north-1.myhuaweicloud.com:10743
#华为云短信模板ID
HWY_DX_Templateid=xxxxxxxxxxxxxxxxxxxxxx
#华为云签名名称，必须是已审核通过的，与模板类型一致的签名名称,按照自己的实际签名填写
HWY_DX_Signature=华为云
#华为云签名通道号
HWY_DX_Sender=xxxxxxxxxx
#---------------------↓阿里云接口-----------------------
#是否开启阿里云短信告警通道,可同时开始多个通道0为关闭,1为开启
open-alydx=0
#阿里云短信主账号AccessKey的ID
ALY_DX_AccessKeyId=xxxxxxxxxxxxxxxxxxxxxx
#阿里云短信接口密钥
ALY_DX_AccessSecret=xxxxxxxxxxxxxxxxxxxxxx
#阿里云短信签名名称
ALY_DX_SignName=阿里云
#阿里云短信模板ID
ALY_DX_Template=xxxxxxxxxxxxxxxxxxxxxx
#是否开启阿里云电话告警通道,可同时开始多个通道0为关闭,1为开启
open-alydh=0
#阿里云电话主账号AccessKey的ID
ALY_DH_AccessKeyId=xxxxxxxxxxxxxxxxxxxxxx
#阿里云电话接口密钥
ALY_DH_AccessSecret=xxxxxxxxxxxxxxxxxxxxxx
#阿里云电话被叫显号，必须是已购买的号码
ALY_DX_CalledShowNumber=xxxxxxxxx
#阿里云电话文本转语音（TTS）模板ID
ALY_DH_TtsCode=xxxxxxxx
#---------------------↓容联云接口-----------------------
#是否开启容联云电话告警通道,可同时开始多个通道0为关闭,1为开启
open-rlydh=0
#容联云基础接口地址
RLY_URL=https://app.cloopen.com:8883/2013-12-26/Accounts/
#容联云后台SID
RLY_ACCOUNT_SID=xxxxxxxxxxx
#容联云api-token
RLY_ACCOUNT_TOKEN=xxxxxxxxxx
#容联云app_id
RLY_APP_ID=xxxxxxxxxxxxx
#---------------------↓邮件配置-----------------------
#是否开启邮件
open-email=1
#邮件发件服务器地址
Email_host=smtp.qq.com
#邮件发件服务器端口
Email_port=465
#邮件帐号
Email_user=邮件接收者@qq.com
#邮件密码
Email_password=xxxxx
#邮件标题
Email_title=PrometheusAlert
#默认发送邮箱
Default_emails=邮件接收者@qq.com
#---------------------↓七陌云接口-----------------------
#是否开启七陌短信告警通道,可同时开始多个通道0为关闭,1为开启
open-7moordx=0
#七陌账户ID
7MOOR_ACCOUNT_ID=Nxxx
#七陌账户APISecret
7MOOR_ACCOUNT_APISECRET=xxx
#七陌账户短信模板编号
7MOOR_DX_TEMPLATENUM=n
#注意：七陌短信变量这里只用一个var1，在代码里写死了。
#-----------
#是否开启七陌webcall语音通知告警通道,可同时开始多个通道0为关闭,1为开启
open-7moordh=0
#请在七陌平台添加虚拟服务号、文本节点
#七陌账户webcall的虚拟服务号
7MOOR_WEBCALL_SERVICENO=xxx
# 文本节点里被替换的变量，我配置的是text。如果被替换的变量不是text，请修改此配置
7MOOR_WEBCALL_VOICE_VAR=text
#---------------------↓telegram接口-----------------------
#是否开启telegram告警通道,可同时开始多个通道0为关闭,1为开启
open-tg=0
#tg机器人token
TG_TOKEN=xxxxx
#tg消息模式 个人消息或者频道消息 0为关闭(推送给个人)，1为开启(推送给频道)
TG_MODE_CHAN=0
#tg用户ID
TG_USERID=xxxxx
#tg频道name或者id, 频道name需要以@开始
TG_CHANNAME=xxxxx
#tg api地址, 可以配置为代理地址
#TG_API_PROXY="https://api.telegram.org/bot%s/%s"
#---------------------↓workwechat接口-----------------------
#是否开启workwechat告警通道,可同时开始多个通道0为关闭,1为开启
open-workwechat=0
# 企业ID
WorkWechat_CropID=xxxxx
# 应用ID
WorkWechat_AgentID=xxxx
# 应用secret
WorkWechat_AgentSecret=xxxx
# 接受用户
WorkWechat_ToUser="zhangsan|lisi"
# 接受部门
WorkWechat_ToParty="ops|dev"
# 接受标签
WorkWechat_ToTag=""
# 消息类型, 暂时只支持markdown
# WorkWechat_Msgtype = "markdown"
#---------------------↓百度云接口-----------------------
#是否开启百度云短信告警通道,可同时开始多个通道0为关闭,1为开启
open-baidudx=0
#百度云短信接口AK(ACCESS_KEY_ID)
BDY_DX_AK=xxxxx
#百度云短信接口SK(SECRET_ACCESS_KEY)
BDY_DX_SK=xxxxx
#百度云短信ENDPOINT（ENDPOINT参数需要用指定区域的域名来进行定义，如服务所在区域为北京，则为）
BDY_DX_ENDPOINT=http://smsv3.bj.baidubce.com
#百度云短信模版ID,根据自己审核通过的模版来填写(模版支持一个参数code：如prometheus告警:{code})
BDY_DX_TEMPLATE_ID=xxxxx
#百度云短信签名ID，根据自己审核通过的签名来填写
TXY_DX_SIGNATURE_ID=xxxxx
#---------------------↓百度Hi(如流)-----------------------
#是否开启百度Hi(如流)告警通道,可同时开始多个通道0为关闭,1为开启
open-ruliu=0
#默认百度Hi(如流)机器人地址
BDRL_URL=https://api.im.baidu.com/api/msg/groupmsgsend?access_token=xxxxxxxxxxxxxx
#百度Hi(如流)群ID
BDRL_ID=123456
#---------------------↓bark接口-----------------------
#是否开启telegram告警通道,可同时开始多个通道0为关闭,1为开启
open-bark=0
#bark默认地址, 建议自行部署bark-server
BARK_URL=https://api.day.app
#bark key, 多个key使用分割
BARK_KEYS=xxxxx
# 复制, 推荐开启
BARK_COPY=1
# 历史记录保存,推荐开启
BARK_ARCHIVE=1
# 消息分组
BARK_GROUP=PrometheusAlert
#---------------------↓语音播报-----------------------
#语音播报需要配合语音播报插件才能使用
#是否开启语音播报通道,0为关闭,1为开启
open-voice=1
VOICE_IP=127.0.0.1
VOICE_PORT=9999
#---------------------↓飞书机器人应用-----------------------
#是否开启feishuapp告警通道,可同时开始多个通道0为关闭,1为开启
open-feishuapp=1
# APPID
FEISHU_APPID=cli_xxxxxxxxxxxxx
# APPSECRET
FEISHU_APPSECRET=xxxxxxxxxxxxxxxxxxxxxx
# 可填飞书 用户open_id、user_id、union_ids、部门open_department_id
AT_USER_ID="xxxxxxxx"
#---------------------↓告警组-----------------------
# 有其他新增的配置段，请放在告警组的上面
# 暂时仅针对 PrometheusContronller 中的 /prometheus/alert 路由
# 告警组如果放在了 wx, dd... 那部分的上分，beego section 取 url 值不太对。
# 所以这里使用 include 来包含另告警组配置
# 是否启用告警组功能
open-alertgroup=0
# 自定义的告警组既可以写在这里，也可以写在单独的文件里。
# 写在单独的告警组配置里更便于修改。
# include "alertgroup.conf"
#---------------------↓kafka地址-----------------------
# kafka服务器的地址
open-kafka=1
kafka_server = 127.0.0.1:9092
# 写入消息的kafka topic
kafka_topic = devops
# 用户标记该消息是来自PrometheusAlert,一般无需修改
kafka_key = PrometheusAlert
user.csv: |
2019年4月10日,15888888881,小张,15999999999,备用联系人小陈,15999999998,备用联系人小赵
2019年4月11日,15888888882,小李,15999999999,备用联系人小陈,15999999998,备用联系人小赵
2019年4月12日,15888888883,小王,15999999999,备用联系人小陈,15999999998,备用联系人小赵
2019年4月13日,15888888884,小宋,15999999999,备用联系人小陈,15999999998,备用联系人小赵
kind: ConfigMap
metadata:
name: prometheus-alert-center-conf
namespace: monitoring
---
apiVersion: apps/v1
kind: Deployment
metadata:
labels:
app: prometheus-alert-center
alertname: prometheus-alert-center
name: prometheus-alert-center
namespace: monitoring
spec:
replicas: 1
selector:
matchLabels:
app: prometheus-alert-center
alertname: prometheus-alert-center
template:
metadata:
labels:
app: prometheus-alert-center
alertname: prometheus-alert-center
spec:
containers:
- image: feiyu563/prometheus-alert:v4.9.1
name: prometheus-alert-center
env:
- name: TZ
value: "Asia/Shanghai"
ports:
- containerPort: 8080
name: http
resources:
limits:
cpu: 200m
memory: 200Mi
requests:
cpu: 100m
memory: 100Mi
volumeMounts:
- name: prometheus-alert-center-conf-map
mountPath: /app/conf/app.conf
subPath: app.conf
- name: prometheus-alert-center-conf-map
mountPath: /app/user.csv
subPath: user.csv
volumes:
- name: prometheus-alert-center-conf-map
configMap:
name: prometheus-alert-center-conf
items:
- key: app.conf
path: app.conf
- key: user.csv
path: user.csv
---
apiVersion: v1
kind: Service
metadata:
labels:
alertname: prometheus-alert-center
name: prometheus-alert-center
namespace: monitoring
annotations:
prometheus.io/scrape: 'true'
prometheus.io/port: '8080'
spec:
ports:
- name: http
port: 8080
targetPort: http
selector:
app: prometheus-alert-center
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: prometheus-ingress
namespace: monitoring
spec:
rules:
- host: alert-center.local
http:
paths:
- path: /
pathType: ImplementationSpecific
backend:
service:
name: prometheus-alert-center
port:
number: 8080
EOF
应用后查看资源创建状态：
[root@master-01 ~]# kubectl -n monitoring get pod|grep "prometheus-alert-center"
prometheus-alert-center-69c9d5d7fd-mp8s8 1/1 Running 0 149m
[root@master-01 ~]# kubectl -n monitoring get svc|grep "prometheus-alert-center"
prometheus-alert-center ClusterIP 10.98.227.20 <none> 8080/TCP 152m
[root@master-01 ~]# kubectl -n monitoring get ingress|grep "prometheus-alert-center"
prometheus-alert-center <none> alert-center.local localhost 80 153m

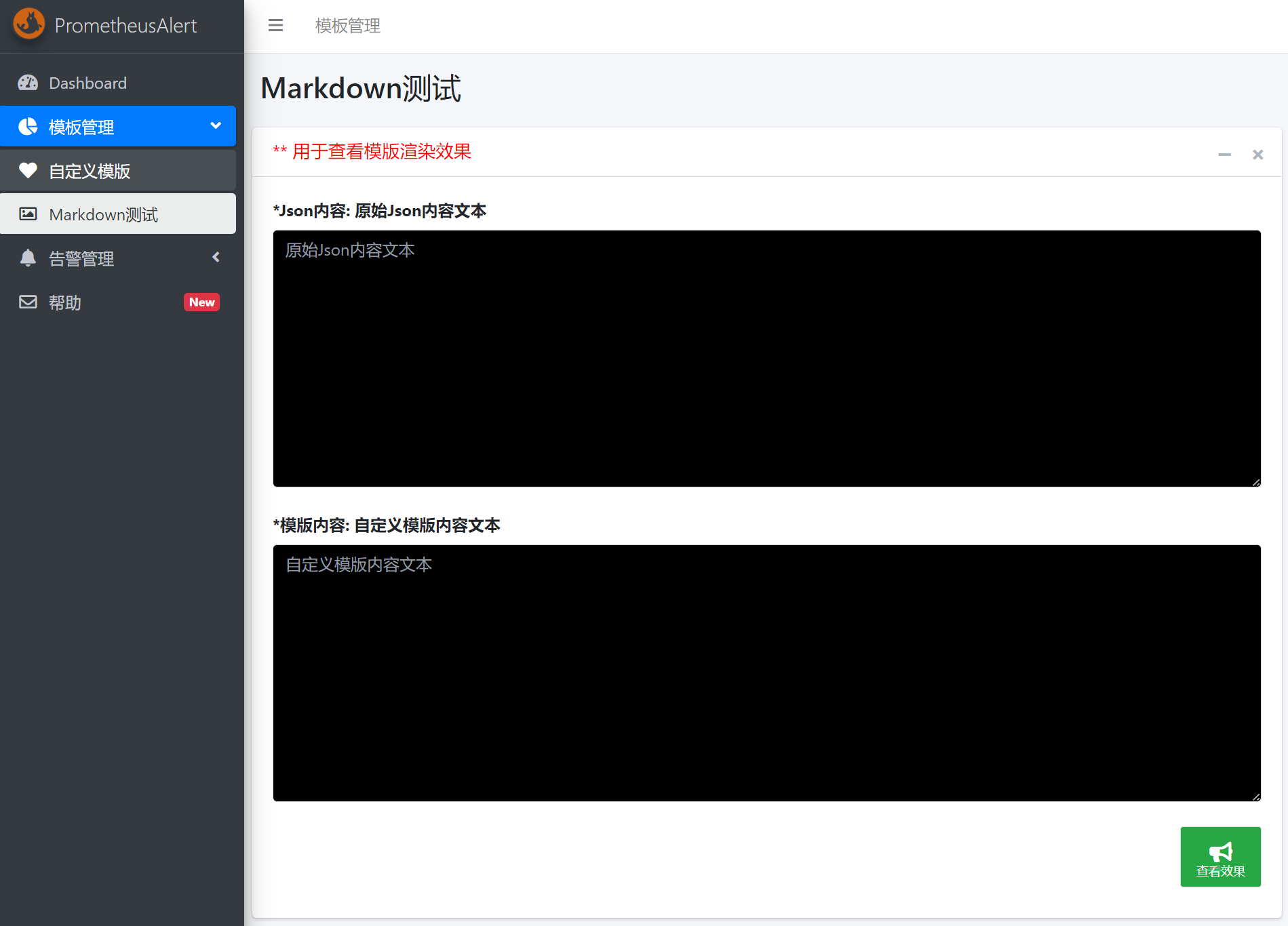

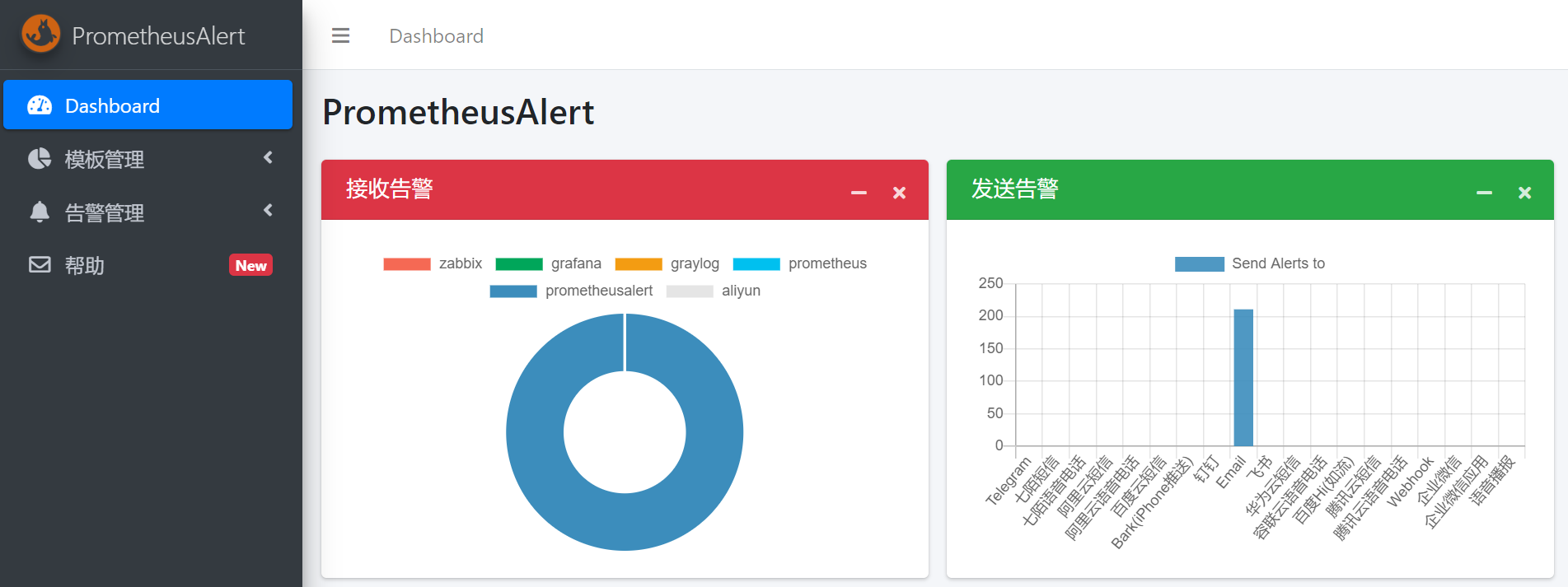

打开web界面:
3.prometheus-operator接入配置
如果是prometheus-operator的项目，那么只需要修改 alertmanager-secret.yaml 配置，将webhook的地址填写为prometheus-alert的service名称即可：
cat > alertmanager-secret.yaml << 'EOF'
apiVersion: v1
kind: Secret
metadata:
labels:
alertmanager: main
app.kubernetes.io/component: alert-router
app.kubernetes.io/name: alertmanager
app.kubernetes.io/part-of: kube-prometheus
app.kubernetes.io/version: 0.21.0
name: alertmanager-main
namespace: monitoring
type: Opaque
stringData:
alertmanager.yaml: |-
global:
resolve_timeout: 5m
route:
group_by: ['instance']
group_wait: 10m
group_interval: 10s
repeat_interval: 10m
receiver: 'web.hook.prometheusalert'
receivers:
- name: 'web.hook.prometheusalert'
webhook_configs:
- url: 'http://prometheus-alert-center:8080/prometheusalert?type=email&tpl=prometheus-email&email=vim27@qq.com'
EOF
生效后的配置查看:
[root@master-01 ~]# kubectl get secret alertmanager-main-generated -n monitoring -o json | jq -r '.data."alertmanager.yaml"' | base64 --decode
global:
resolve_timeout: 5m
route:
group_by: ['instance']
group_wait: 10m
group_interval: 10s
repeat_interval: 10m
receiver: 'web.hook.prometheusalert'
receivers:
- name: 'web.hook.prometheusalert'
webhook_configs:
- url: 'http://prometheus-alert-center:8080/prometheusalert?type=email&tpl=prometheus-email&email=vim27@qq.com'

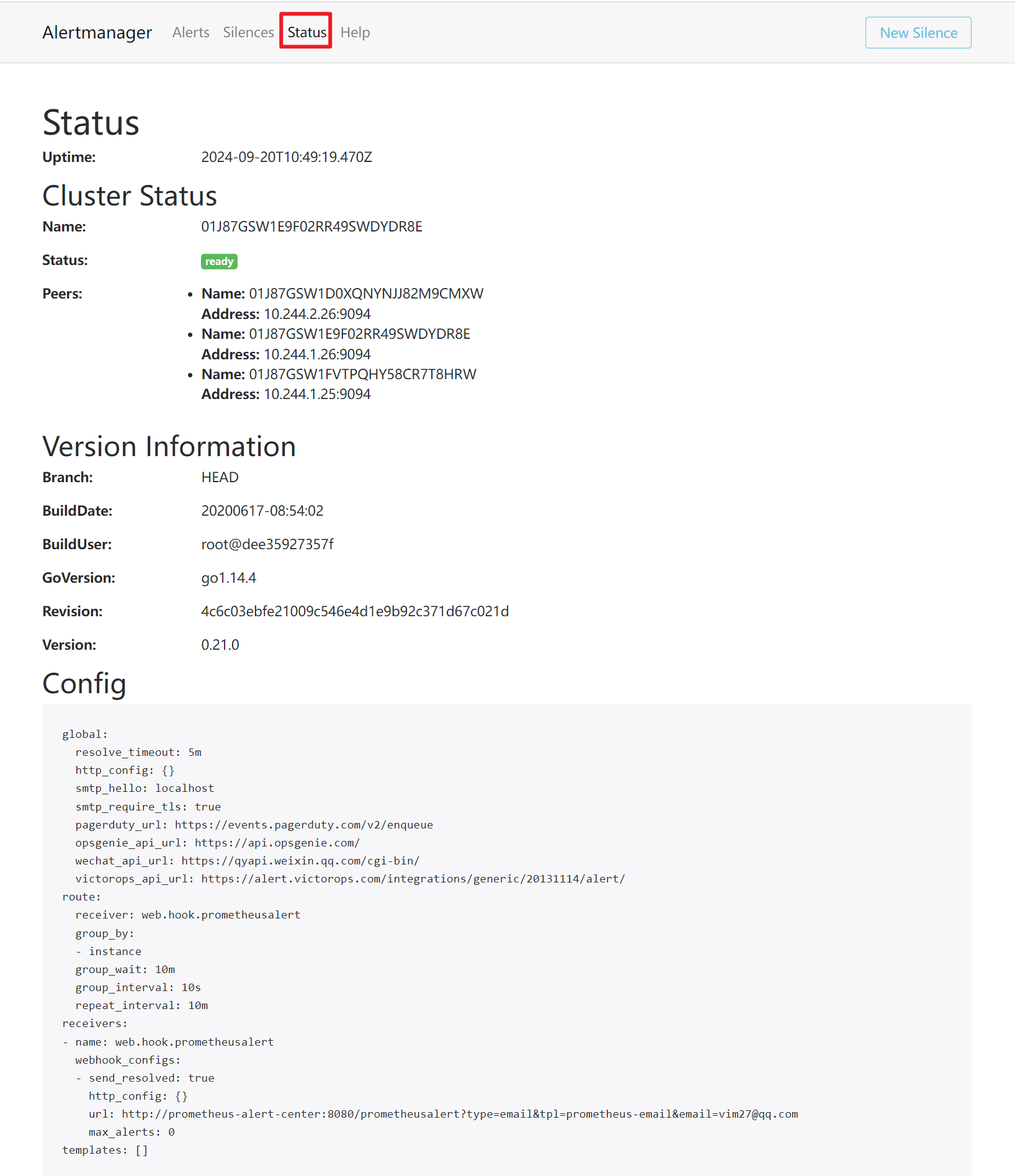

alertmanager的web页面可以查看是否生效:
4.对接邮件告警配置
在PrometheusAlert的web页面可以方便的调试和测试告警模版是否正确生效，点击Markdown测试可以看到有两个方框可以用来填写内容，一个是报警的原始json文本，一个是我们自定义的模版
报警的原始json文本可以通过查看prometheus-alert-center的日志获取到:
[root@master-01 ~]# kubectl -n monitoring logs -f prometheus-alert-center-69c9d5d7fd-mp8s8
这里随便摘抄一段简短的报警信息:
{"receiver":"web\\.hook\\.prometheusalert","status":"firing","alerts":[{"status":"firing","labels":{"alertname":"KubeDeploymentReplicasMismatch","container":"kube-rbac-proxy-main","deployment":"mysql-dp","instance":"10.244.2.19:8443","job":"kube-state-metrics","namespace":"default","prometheus":"monitoring/k8s","severity":"warning"},"annotations":{"description":"Deployment default/mysql-dp has not matched the expected number of replicas for longer than 15 minutes.","runbook_url":"https://github.com/prometheus-operator/kube-prometheus/wiki/kubedeploymentreplicasmismatch","summary":"Deployment has not matched the expected number of replicas."},"startsAt":"2024-09-20T13:09:56.729Z","endsAt":"0001-01-01T00:00:00Z","generatorURL":"http://prometheus-k8s-1:9090/graph?g0.expr=%28kube_deployment_spec_replicas%7Bjob%3D%22kube-state-metrics%22%7D+%21%3D+kube_deployment_status_replicas_available%7Bjob%3D%22kube-state-metrics%22%7D%29+and+%28changes%28kube_deployment_status_replicas_updated%7Bjob%3D%22kube-state-metrics%22%7D%5B10m%5D%29+%3D%3D+0%29\u0026g0.tab=1","fingerprint":"d3c4dfbd62a8075a"}],"groupLabels":{"instance":"10.244.2.19:8443"},"commonLabels":{"alertname":"KubeDeploymentReplicasMismatch","container":"kube-rbac-proxy-main","deployment":"mysql-dp","instance":"10.244.2.19:8443","job":"kube-state-metrics","namespace":"default","prometheus":"monitoring/k8s","severity":"warning"},"commonAnnotations":{"description":"Deployment default/mysql-dp has not matched the expected number of replicas for longer than 15 minutes.","runbook_url":"https://github.com/prometheus-operator/kube-prometheus/wiki/kubedeploymentreplicasmismatch","summary":"Deployment has not matched the expected number of replicas."},"externalURL":"http://alertmanager-main-0:9093","version":"4","groupKey":"{}:{instance=\"10.244.2.19:8443\"}","truncatedAlerts":0}
经过json格式化后的内容：
{
"receiver": "web\\.hook\\.prometheusalert",
"status": "firing",
"alerts": [{
"status": "firing",
"labels": {
"alertname": "KubeDeploymentReplicasMismatch",
"container": "kube-rbac-proxy-main",
"deployment": "mysql-dp",
"instance": "10.244.2.19:8443",
"job": "kube-state-metrics",
"namespace": "default",
"prometheus": "monitoring/k8s",
"severity": "warning"
},
"annotations": {
"description": "Deployment default/mysql-dp has not matched the expected number of replicas for longer than 15 minutes.",
"runbook_url": "https://github.com/prometheus-operator/kube-prometheus/wiki/kubedeploymentreplicasmismatch",
"summary": "Deployment has not matched the expected number of replicas."
},
"startsAt": "2024-09-20T13:09:56.729Z",
"endsAt": "0001-01-01T00:00:00Z",
"generatorURL": "http://prometheus-k8s-1:9090/graph?g0.expr=%28kube_deployment_spec_replicas%7Bjob%3D%22kube-state-metrics%22%7D+%21%3D+kube_deployment_status_replicas_available%7Bjob%3D%22kube-state-metrics%22%7D%29+and+%28changes%28kube_deployment_status_replicas_updated%7Bjob%3D%22kube-state-metrics%22%7D%5B10m%5D%29+%3D%3D+0%29\u0026g0.tab=1",
"fingerprint": "d3c4dfbd62a8075a"
}],
"groupLabels": {
"instance": "10.244.2.19:8443"
},
"commonLabels": {
"alertname": "KubeDeploymentReplicasMismatch",
"container": "kube-rbac-proxy-main",
"deployment": "mysql-dp",
"instance": "10.244.2.19:8443",
"job": "kube-state-metrics",
"namespace": "default",
"prometheus": "monitoring/k8s",
"severity": "warning"
},
"commonAnnotations": {
"description": "Deployment default/mysql-dp has not matched the expected number of replicas for longer than 15 minutes.",
"runbook_url": "https://github.com/prometheus-operator/kube-prometheus/wiki/kubedeploymentreplicasmismatch",
"summary": "Deployment has not matched the expected number of replicas."
},
"externalURL": "http://alertmanager-main-0:9093",
"version": "4",
"groupKey": "{}:{instance=\"10.244.2.19:8443\"}",
"truncatedAlerts": 0
}
默认的邮件报警模版:
{{ $var := .externalURL}}{{ range $k,$v:=.alerts }}
{{if eq $v.status "resolved"}}
<h1><a href ={{$v.generatorURL}}>Prometheus恢复信息</a></h1>
<h2><a href ={{$var}}>{{$v.labels.alertname}}</a></h2>
<h5>告警级别：{{$v.labels.severity}}</h5>
<h5>开始时间：{{$v.startsAt}}</h5>
<h5>结束时间：{{$v.endsAt}}</h5>
<h5>故障主机IP：{{$v.labels.instance}}</h5>
<h3>{{$v.annotations.description}}</h3>
<img src=https://raw.githubusercontent.com/feiyu563/PrometheusAlert/master/doc/alert-center.png />
{{else}}
<h1><a href ={{$v.generatorURL}}>Prometheus告警信息</a></h1>
<h2><a href ={{$var}}>{{$v.labels.alertname}}</a></h2>
<h5>告警级别：{{$v.labels.severity}}</h5>
<h5>开始时间：{{$v.startsAt}}</h5>
<h5>故障主机IP：{{$v.labels.instance}}</h5>
<h3>{{$v.annotations.description}}</h3>
<img src=https://raw.githubusercontent.com/feiyu563/PrometheusAlert/master/doc/alert-center.png />
{{end}}
{{ end }}

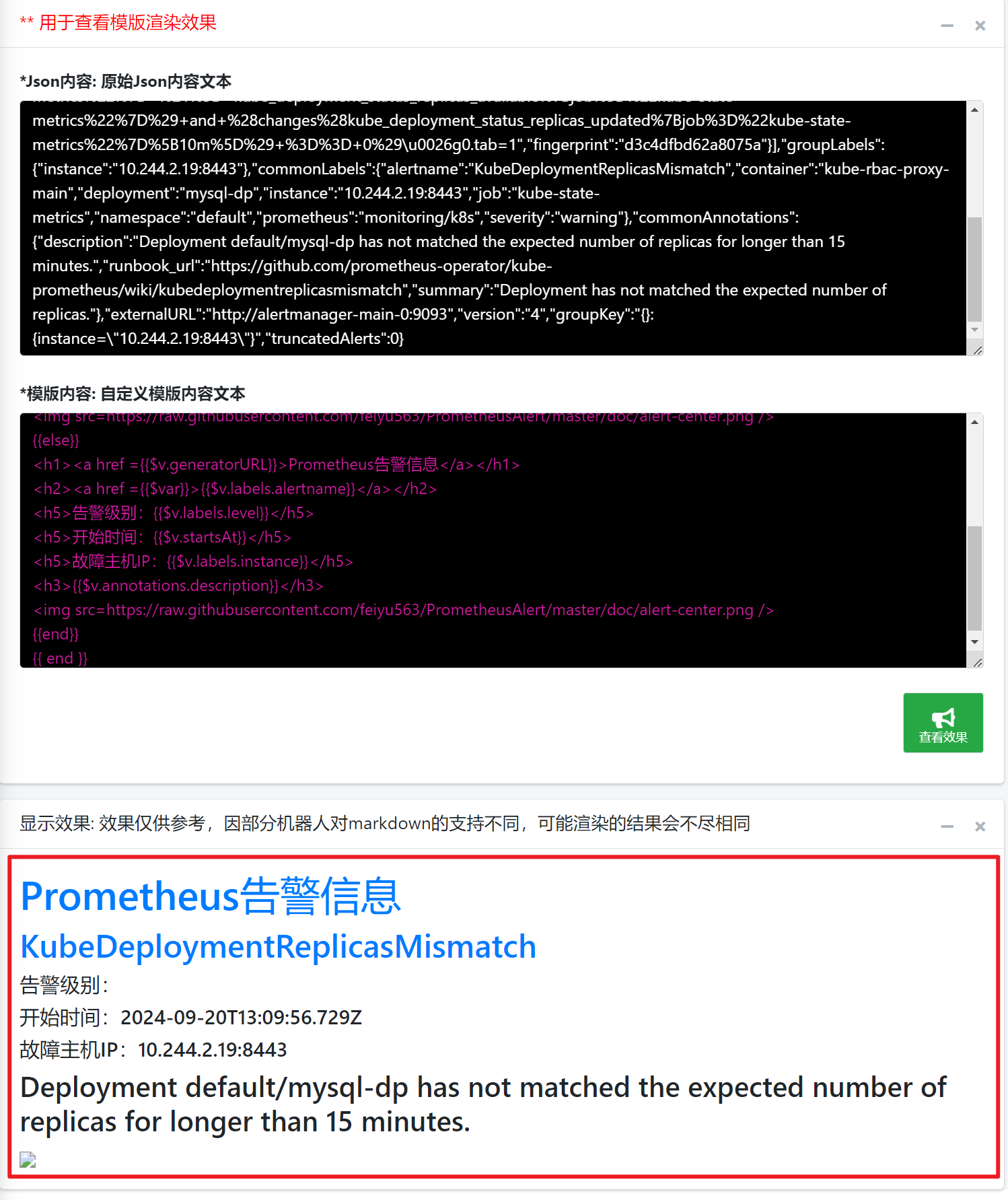

默认邮件报警展示效果:
我们可以看到其实展示效果并不好，我们精简并调整一下报警模版：
{{ $var := .externalURL}}{{ range $k,$v:=.alerts }}
{{if eq $v.status "resolved"}}
<h3>告警名称：{{$v.labels.alertname}}</h3>
<h3>告警级别：{{$v.labels.level}}</h3>
<h3>告警实例：{{$v.labels.instance}}</h3>
<h3>告警详情：{{$v.annotations.description}}</h3>
<h3>开始时间：{{$v.startsAt}}</h3>
<h3>结束时间：{{$v.endsAt}}</h5>
{{else}}
<h3>告警名称：{{$v.labels.alertname}}</h3>
<h3>告警级别：{{$v.labels.level}}</h3>
<h3>开始时间：{{$v.startsAt}}</h3>
<h3>告警实例：{{$v.labels.instance}}</h3>
<h3>告警详情：{{$v.annotations.description}}</h3>
{{ end }}
{{ end }}

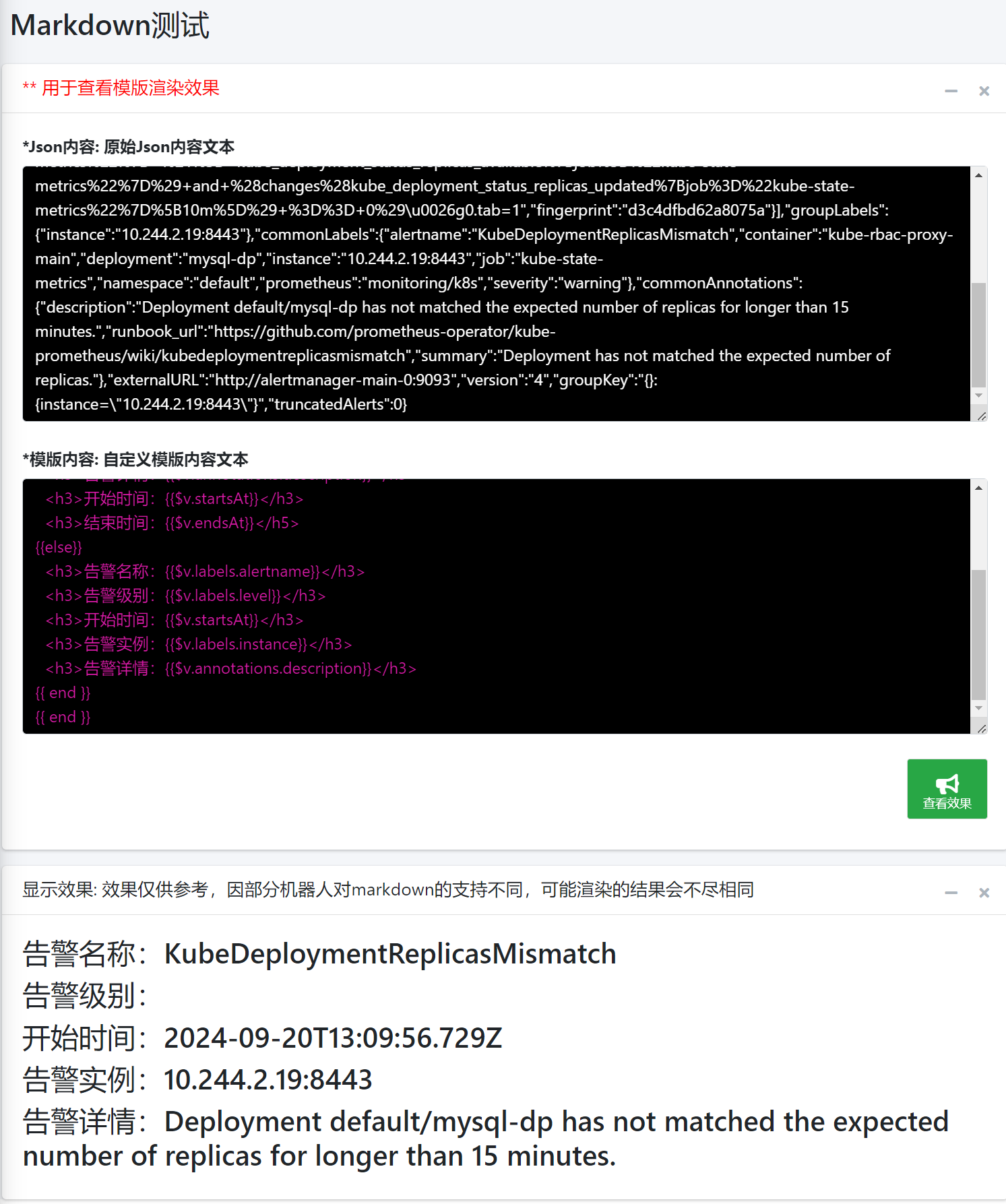

再次测试渲染效果:

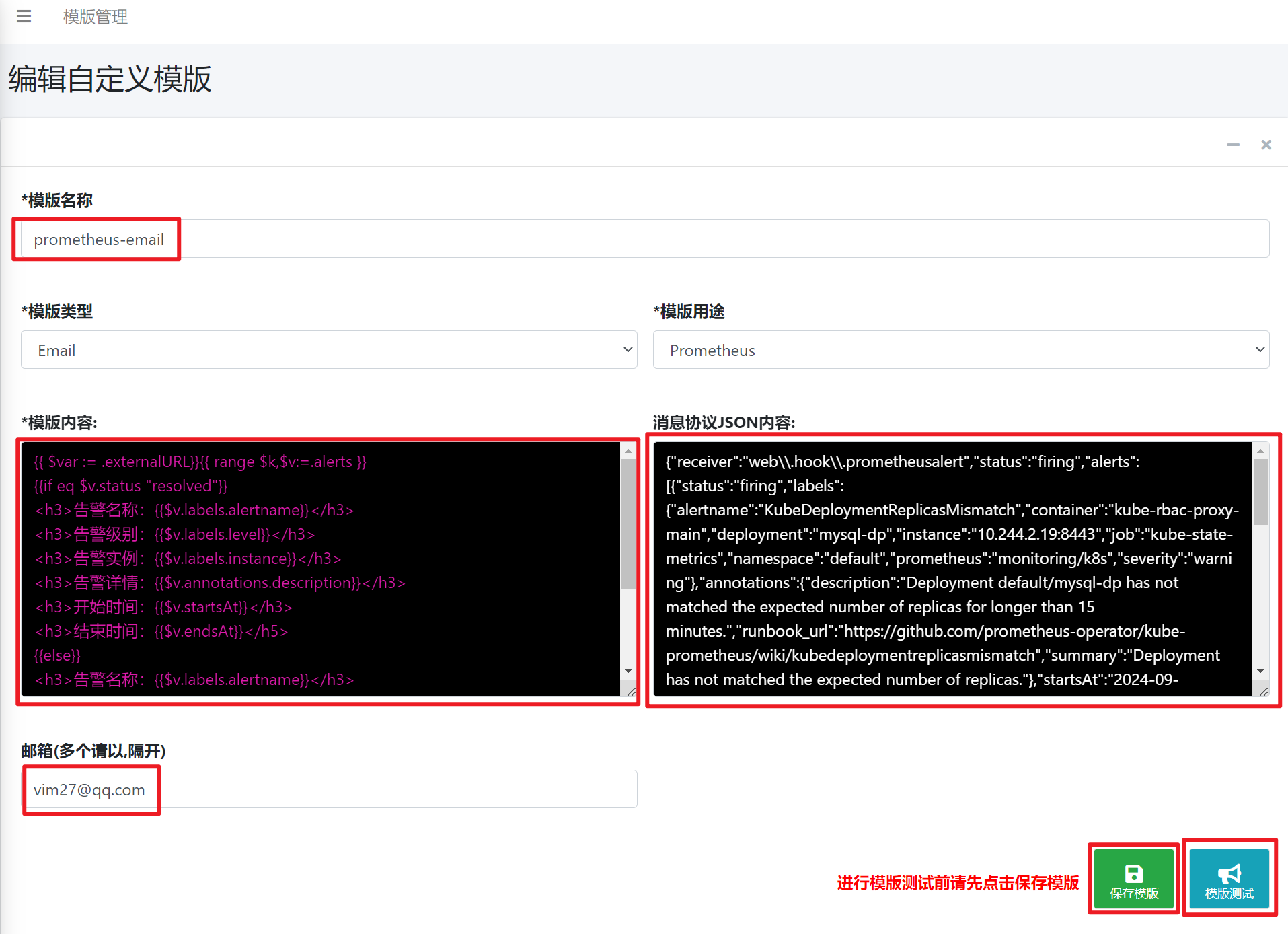

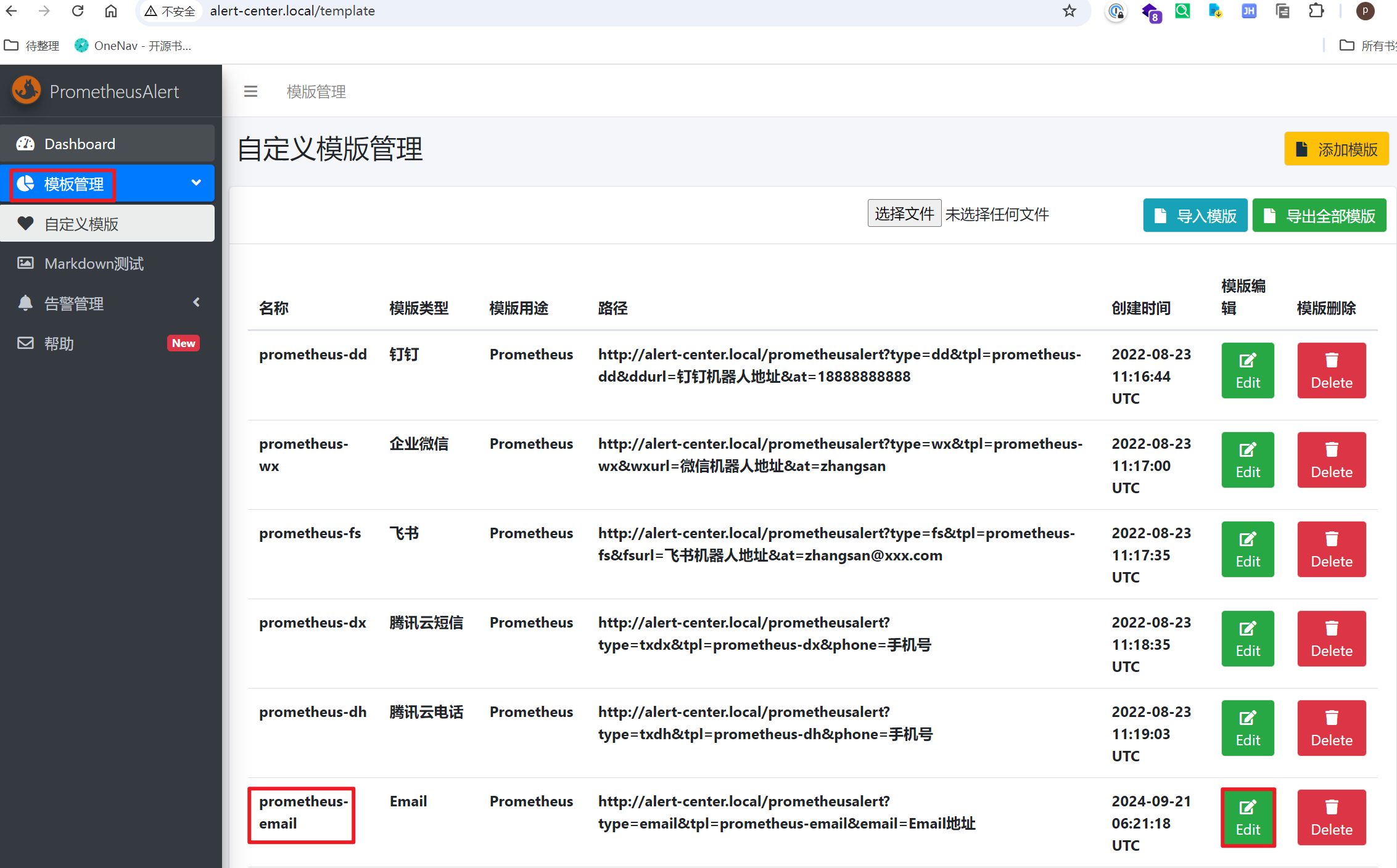

现在的效果已经好很多了，如果测试没有问题，我们就可以真正的去替换相应的email模版了，点击模版管理，选择email

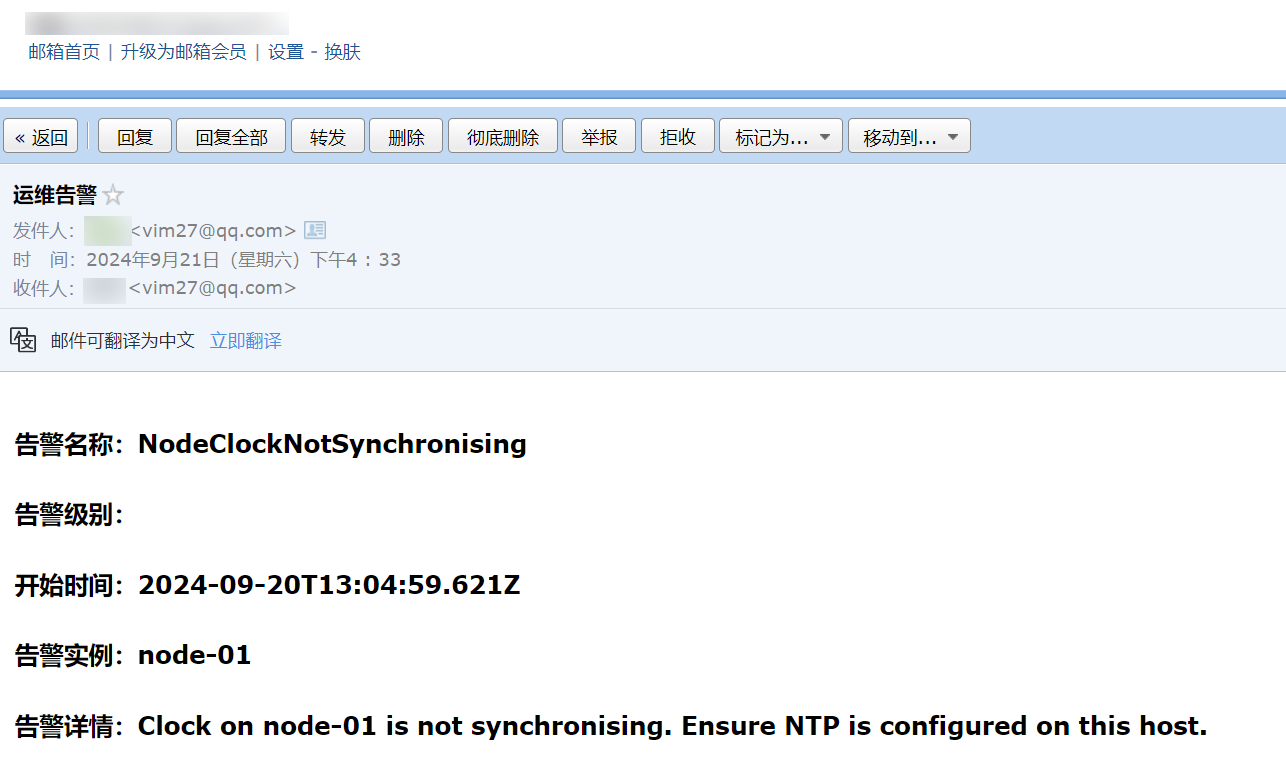

邮件效果：
5.对接钉钉告警配置

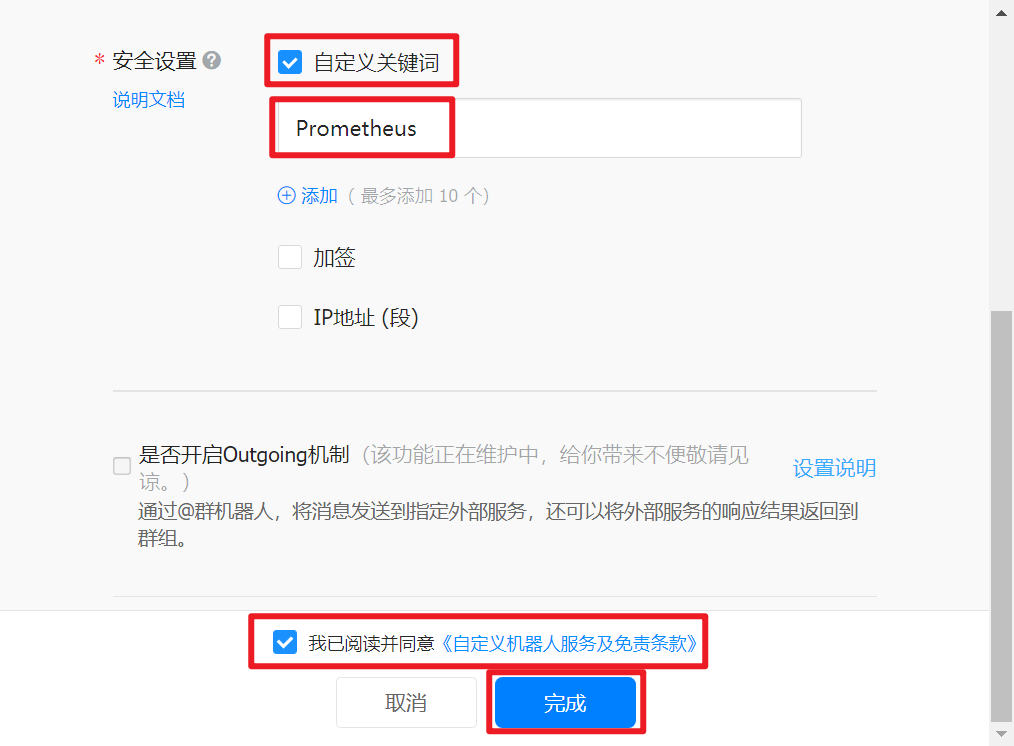

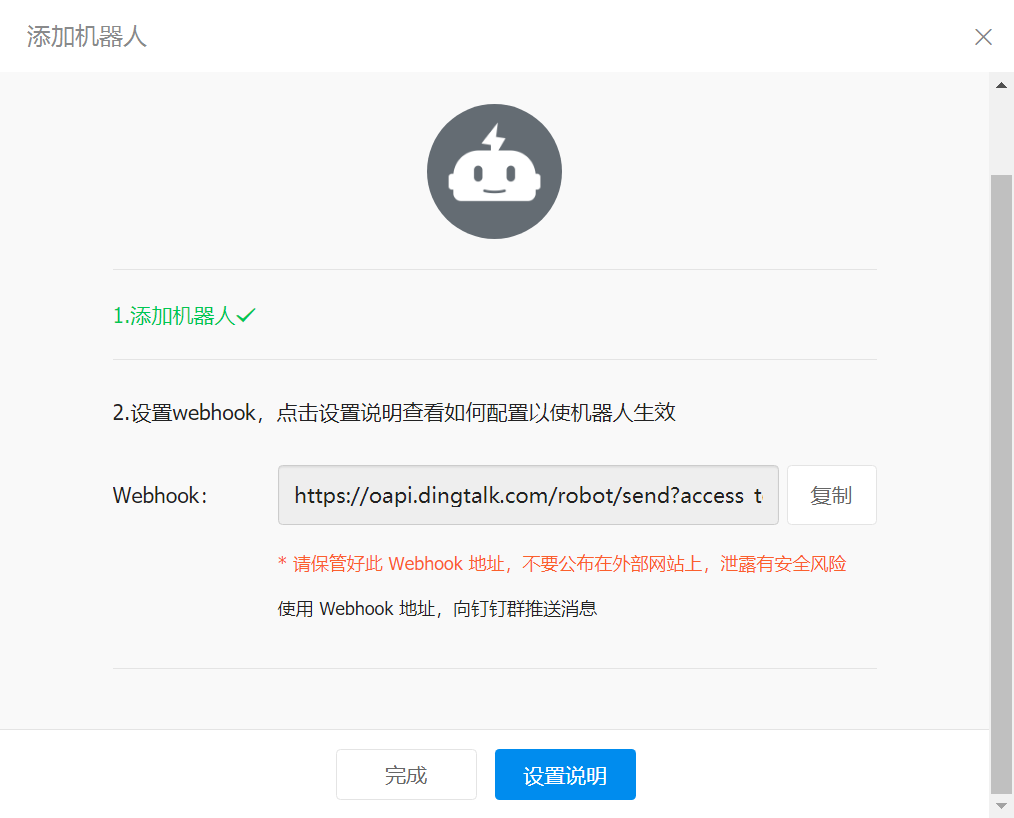

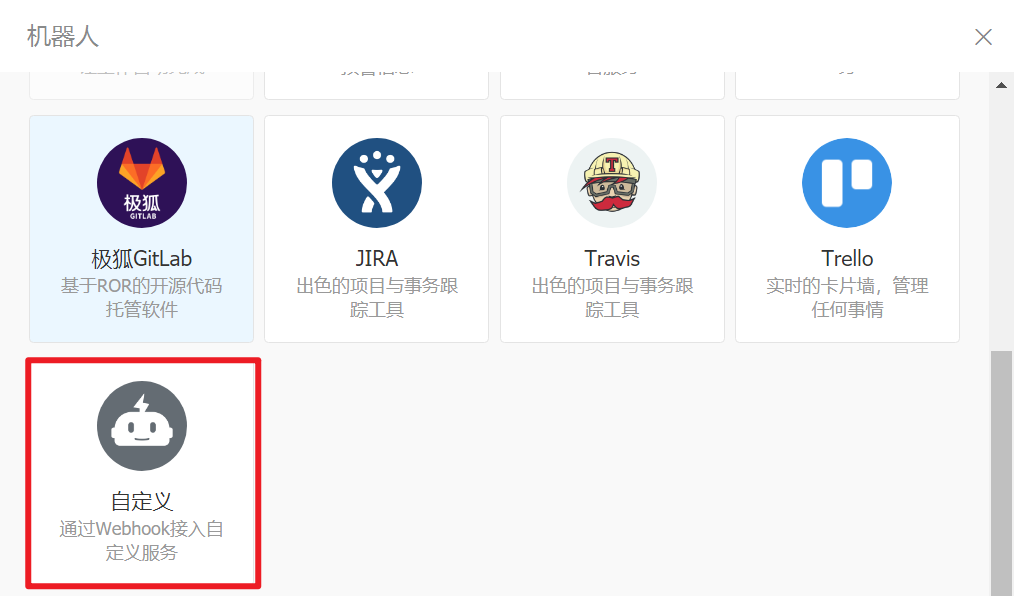

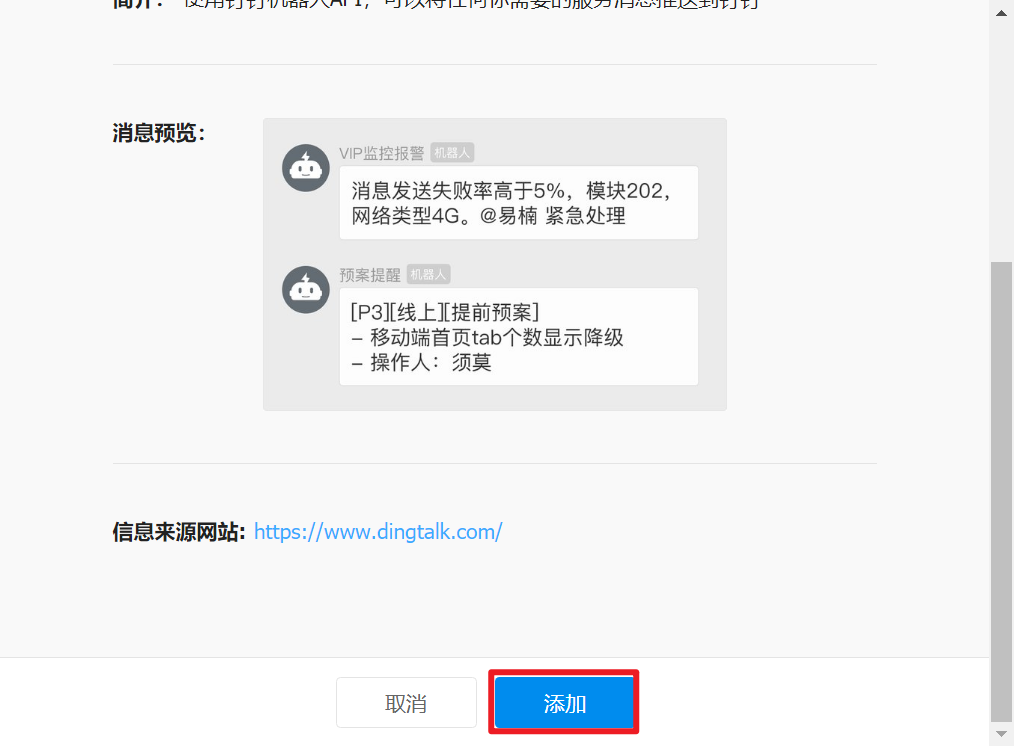

第一步：钉钉添加机器人
https://oapi.dingtalk.com/robot/send?access_token=3cc684fa9182e659bc3b60d89a5bc4c8764ca93f01c6036397f2d025f31dbe0f

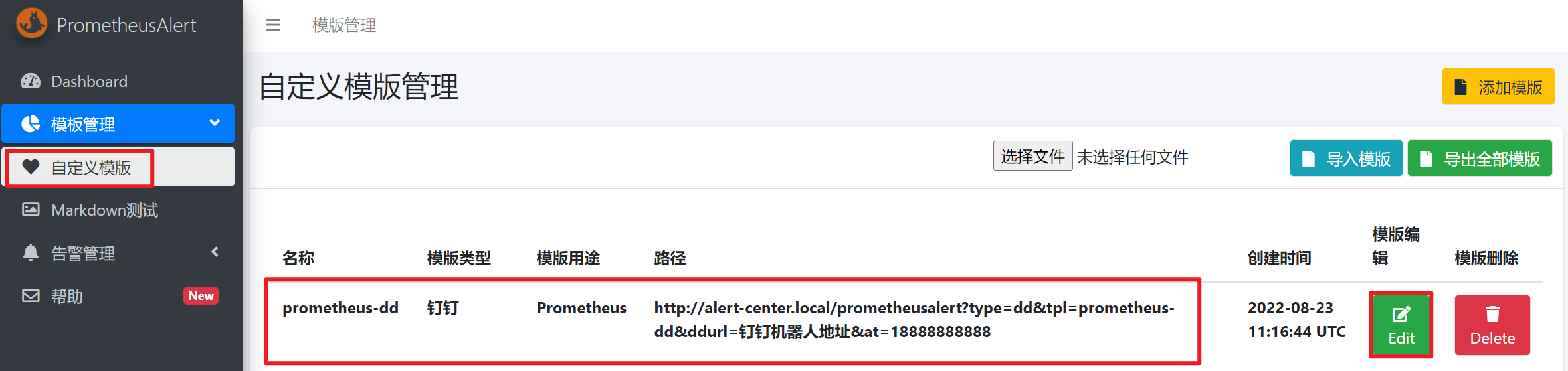

第二步：在PrometheusAlert图形界面修改
默认的钉钉告警模版:
{{ $var := .externalURL}}{{ range $k,$v:=.alerts }}
{{if eq $v.status "resolved"}}
## [Prometheus恢复信息]({{$v.generatorURL}})
#### [{{$v.labels.alertname}}]({{$var}})
###### 告警级别：{{$v.labels.level}}
###### 开始时间：{{$v.startsAt}}
###### 结束时间：{{$v.endsAt}}
###### 故障主机IP：{{$v.labels.instance}}
##### {{$v.annotations.description}}
{{else}}
## [Prometheus告警信息]({{$v.generatorURL}})
#### [{{$v.labels.alertname}}]({{$var}})
###### 告警级别：{{$v.labels.level}}
###### 开始时间：{{$v.startsAt}}
###### 故障主机IP：{{$v.labels.instance}}
##### {{$v.annotations.description}}
{{end}}
{{ end }}
{{ $urimsg:=""}}{{ range $key,$value:=.commonLabels }}{{$urimsg = print $urimsg $key "%3D%22" $value "%22%2C" }}{{end}}[*** 点我屏蔽该告警]({{$var}}/#/silences/new?filter=%7B{{SplitString $urimsg 0 -3}}%7D)
修改后的钉钉告警模版:
{{ $var := .externalURL}}{{ range $k,$v:=.alerts }}
{{if eq $v.status "resolved"}}
##### 告警名称：{{$v.labels.alertname}}
##### 告警级别：{{$v.labels.level}}
##### 告警实例：{{$v.labels.instance}}
##### 告警详情：{{$v.annotations.description}}
##### 开始时间：{{$v.startsAt}}
##### 结束时间：{{$v.endsAt}}
{{else}}
##### 告警名称：{{$v.labels.alertname}}
##### 告警级别：{{$v.labels.level}}
##### 开始时间：{{$v.startsAt}}
##### 告警实例：{{$v.labels.instance}}
##### 告警详情：{{$v.annotations.description}}
{{ end }}
{{ end }}
钉钉接收的效果：
第三步：修改alertmanager-secret.yaml
增加钉钉的webhook
cat > alertmanager-secret.yaml << 'EOF'
apiVersion: v1
kind: Secret
metadata:
labels:
alertmanager: main
app.kubernetes.io/component: alert-router
app.kubernetes.io/name: alertmanager
app.kubernetes.io/part-of: kube-prometheus
app.kubernetes.io/version: 0.21.0
name: alertmanager-main
namespace: monitoring
type: Opaque
stringData:
alertmanager.yaml: |-
global:
resolve_timeout: 5m
route:
group_by: ['instance']
group_wait: 10m
group_interval: 10s
repeat_interval: 10m
receiver: 'dingding.webhook.prometheusalert'
receivers:
- name: 'email.webhook.prometheusalert'
webhook_configs:
- url: 'http://prometheus-alert-center:8080/prometheusalert?type=email&tpl=prometheus-email&email=vim27@qq.com'
- name: 'dingding.webhook.prometheusalert'
webhook_configs:
- url: 'http://prometheus-alert-center:8080/prometheusalert?type=dd&tpl=prometheus-dd&ddurl=https://oapi.dingtalk.com/robot/send?access_token=3cc684fa9182e659bc3b60d89a5bc4c8764ca93f01c6036397f2d025f31dbe0f'
EOF
查看告警效果:
更新: 2024-09-23 17:26:56
