第5章 AlertManager

第5章 Alertmanager报警

Prometheus告警规则

prometheus告警规则由以下部分组成

• 告警名称：告警任务的名字
• 告警规则：就是具体报警的PromQ查询的结果持续多久后(During)触发报警

报警介质：

• 邮件
• 钉钉
• 飞书

安装

cat > alertmanager.yml << 'EOF'
apiVersion: v1
kind: ConfigMap
metadata:
  name: alert-config
  namespace: prom
data:
  config.yml: |-
    global:
      # 当alertmanager持续多长时间未接收到告警后标记告警状态为 resolved
      resolve_timeout: 5m
      # 配置邮件发送信息
      smtp_smarthost: 'smtp.qq.com:465'
      smtp_from: '526195417@qq.com'
      smtp_auth_username: '526195417@qq.com'
      smtp_auth_password: 'mtbxhvaqonvrbgia'
      smtp_hello: 'qq.com'
      smtp_require_tls: false
    # 所有报警信息进入后的根路由，用来设置报警的分发策略
    route:
      # 这里的标签列表是接收到报警信息后的重新分组标签，例如，接收到的报警信息里面有许多具有 cluster=A 和 alertname=LatncyHigh 这样的标签的报警信息将会批量被聚合到一个分组里面
      group_by: ['alertname', 'cluster']
      # 当一个新的报警分组被创建后，需要等待至少 group_wait 时间来初始化通知，这种方式可以确保您能有足够的时间为同一分组来获取多个警报，然后一起触发这个报警信息。
      group_wait: 30s

      # 相同的group之间发送告警通知的时间间隔
      group_interval: 30s

      # 如果一个报警信息已经发送成功了，等待 repeat_interval 时间来重新发送他们，不同类型告警发送频率需要具体配置
      repeat_interval: 1h

      # 默认的receiver：如果一个报警没有被一个route匹配，则发送给默认的接收器
      receiver: default

      # 上面所有的属性都由所有子路由继承，并且可以在每个子路由上进行覆盖。
      routes:
      - receiver: email
        group_wait: 10s
        group_by: ['instance'] # 根据instance做分组
        match:
          team: node
    receivers:
    - name: 'default'
      email_configs:
      - to: '526195417@qq.com'
        send_resolved: true  # 接受告警恢复的通知
    - name: 'email'
      email_configs:
      - to: '526195417@qq.com'
        send_resolved: true
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: alertmanager
  namespace: prom
  labels:
    app: alertmanager
spec:
  selector:
    matchLabels:
      app: alertmanager
  template:
    metadata:
      labels:
        app: alertmanager
    spec:
      volumes:
      - name: alertcfg
        configMap:
          name: alert-config
      containers:
      - name: alertmanager
        image: prom/alertmanager:v0.21.0
        imagePullPolicy: IfNotPresent
        args:
        - "--config.file=/etc/alertmanager/config.yml"
        ports:
        - containerPort: 9093
          name: http
        volumeMounts:
        - mountPath: "/etc/alertmanager"
          name: alertcfg
        resources:
          requests:
            cpu: 100m
            memory: 256Mi
          limits:
            cpu: 100m
            memory: 256Mi
---
apiVersion: v1
kind: Service
metadata:
  name: alertmanager
  namespace: prom
  labels:
    app: alertmanager
spec:
  selector:
    app: alertmanager
  ports:
    - name: web
      port: 9093
      targetPort: http
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: alertmanager
  namespace: prom
  labels:
    app: alertmanager
spec:
  rules:
  - host: alertmanager.k8s.com
    http:
      paths:
      - path: /
        pathType: ImplementationSpecific
        backend:
          service:
            name: alertmanager
            port:
              number: 9093
EOF

应用配置：

[root@node1 prom]# kubectl apply -f alertmanager.yml
configmap/alert-config created
deployment.apps/alertmanager created
service/alertmanager created
ingress.networking.k8s.io/alertmanager created

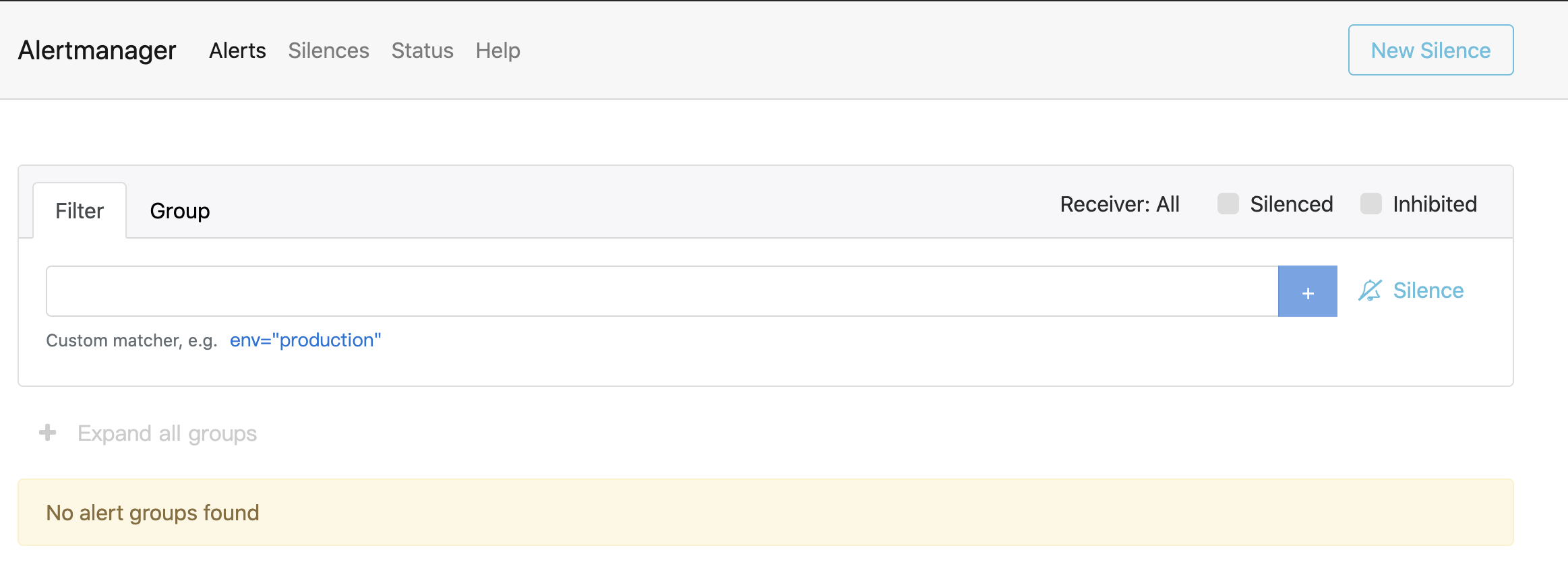

访问查看

配置报警规则

编写报警规则

cat > prom-cm.yml << 'EOF'
apiVersion: v1
kind: ConfigMap
metadata:
  name: prometheus-config
  namespace: prom
data:
  prometheus.yml: |
    global:
      scrape_interval: 15s
      scrape_timeout: 15s
      evaluation_interval: 30s  # 默认情况下每分钟对告警规则进行计算
    alerting:
      alertmanagers:
      - static_configs:
        - targets: ["alertmanager:9093"]
    rule_files:
    - /etc/prometheus/rules.yml
    scrape_configs:
   .........其他配置..........
  rules.yml: |
    groups:
    - name: test-node-mem
      rules:
      - alert: NodeMemoryUsage
        expr: (node_memory_MemTotal_bytes - (node_memory_MemFree_bytes + node_memory_Buffers_bytes + node_memory_Cached_bytes)) / node_memory_MemTotal_bytes * 100 > 20
        for: 2m
        labels:
          team: node
        annotations:
          summary: "{{$labels.instance}}: High Memory usage detected"
          description: "{{$labels.instance}}: Memory usage is above 20% (current value is: {{ $value }}"
EOF

报警规则解释

一条报警规则主要由以下几部分组成：

• alert：告警规则的名称
• expr：报警规则的PromQL查询语句
• for：评估等待时间 (Pending Duration)，触发后持续多久后才发送，等待期间的告警状态为pending
• labels：自定义标签，可以附加在告警上
• annotations：指定另一组标签，用于报警信息展示，可以通过$labels引用标签的值
• summary：报警主题
• description：具体的报警内容

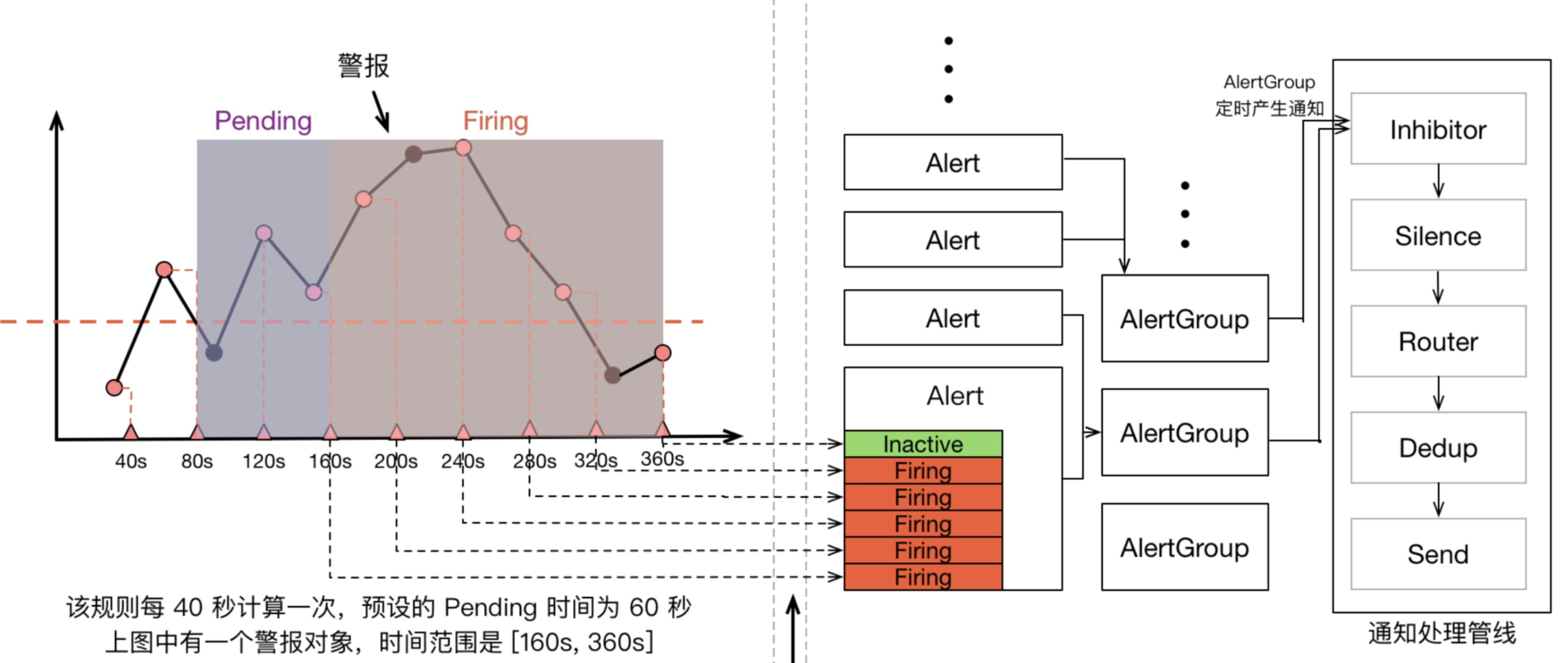

报警状态解释

• pending: 表示在设置的阈值时间范围内被激活了
• firing: 表示超过设置的阈值时间被激活了
• inactive: 表示当前报警信息处于非活动状态

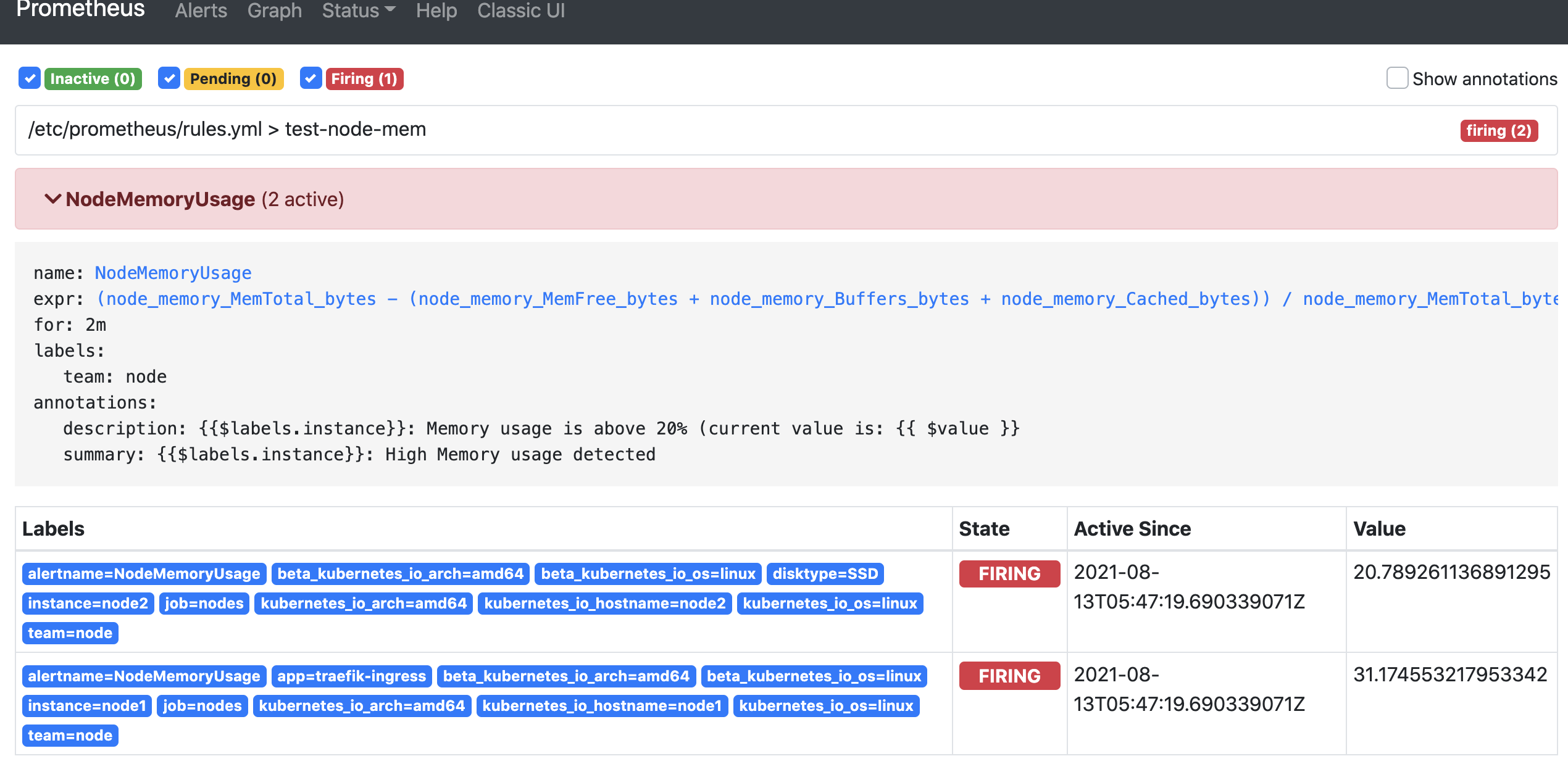

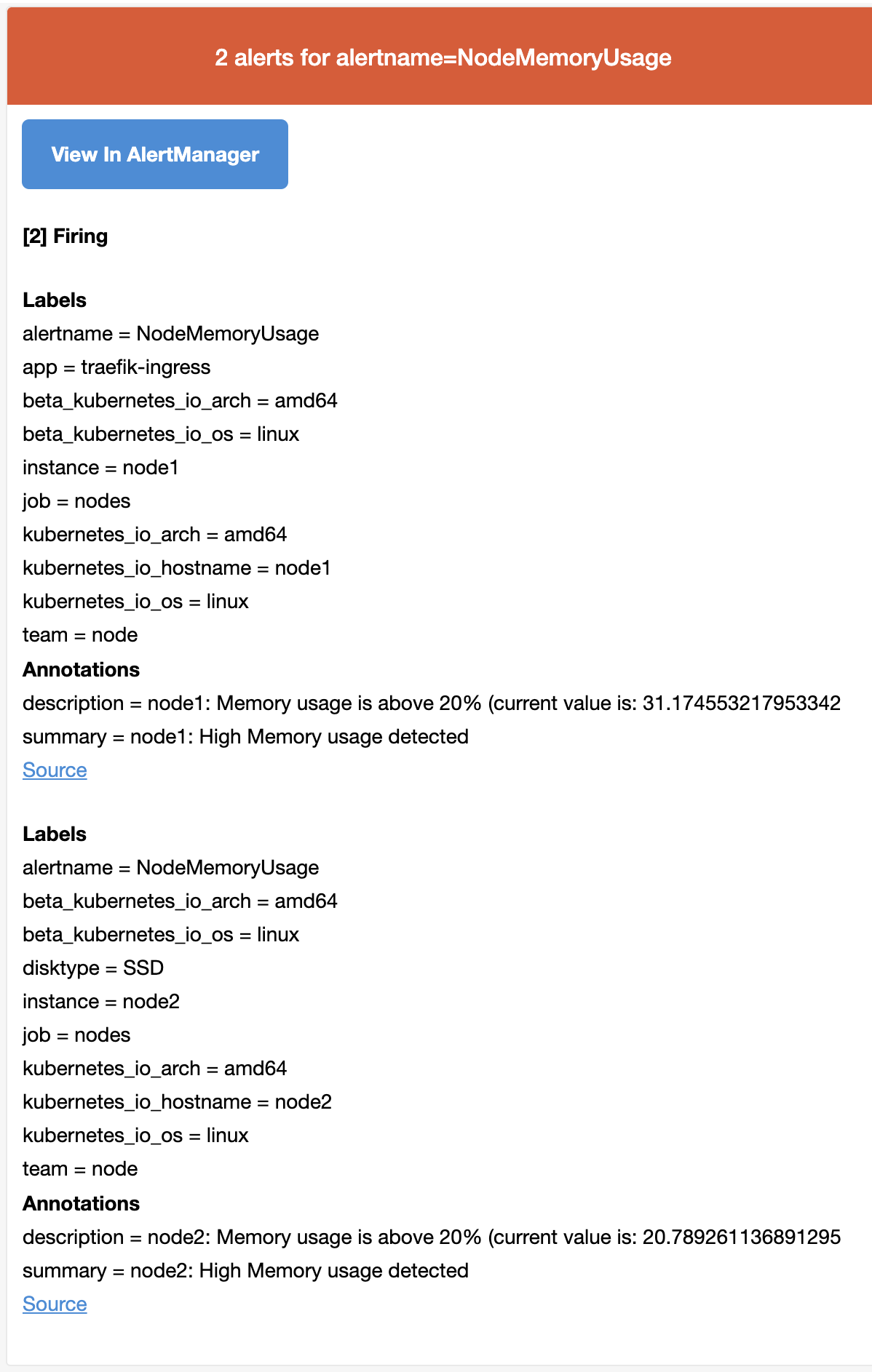

报警效果

报警概念

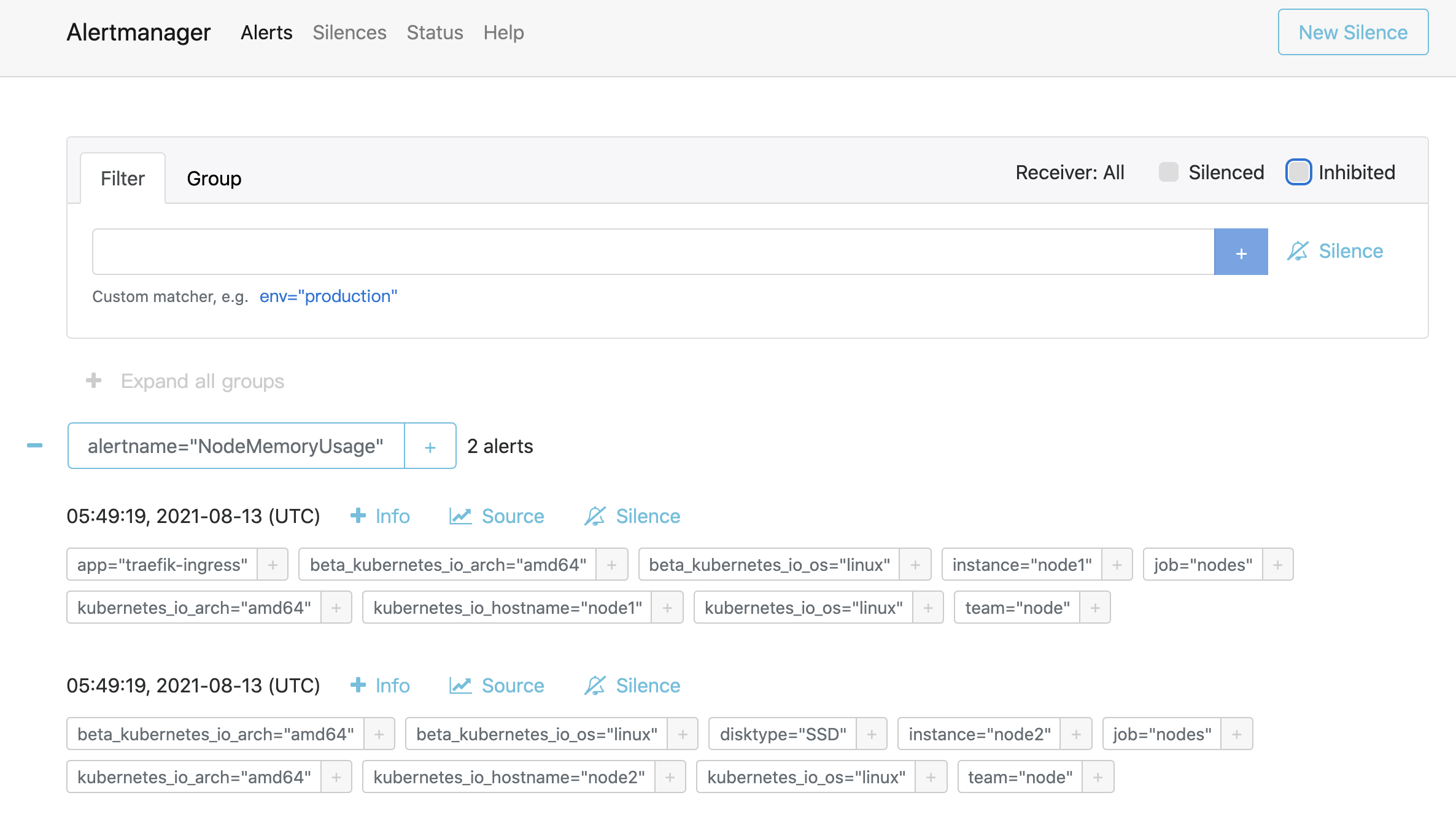

访问Altermanager页面可以查看报警详情

这里有两个新的概念

• Inhibition: 抑制 简单来说就是避免连锁反应
• Sliences: 静默 指定时间简单的忽略所有警报

第x章 报警规则收集

报警规则非常全的网站：

https://awesome-prometheus-alerts.grep.to/rules

举例：添加磁盘的报警规则：

修改prom-cm配置：

rules.yml: |
    groups:
    - name: test-node-mem
      rules:
      - alert: NodeMemoryUsage
        expr: (node_memory_MemTotal_bytes - (node_memory_MemFree_bytes + node_memory_Buffers_bytes + node_memory_Cached_bytes)) / node_memory_MemTotal_bytes * 100 > 20
        for: 2m
        labels:
          team: node
        annotations:
          summary: "{{$labels.instance}}: High Memory usage detected"
          description: "{{$labels.instance}}: Memory usage is above 20% (current value is: {{ $value }}"
      - alert: HostOutOfDiskSpace
        expr: (node_filesystem_avail_bytes * 100) / node_filesystem_size_bytes < 10 and ON (instance, device, mountpoint) node_filesystem_readonly == 0
        for: 2m
        labels:
          severity: warning
        annotations:
          summary: Host out of disk space (instance {{ $labels.instance }})
          description: "Disk is almost full (< 10% left)\n  VALUE = {{ $value }}\n  LABELS = {{ $labels }}"

重启并加载即可

第x章 自定义邮件告警模版

alert配置文件

https://prometheus.io/docs/alerting/latest/configuration/

默认的告警模版：

https://raw.githubusercontent.com/prometheus/alertmanager/master/template/default.tmpl

如果自定义邮件告警：

...
config.yml: |-
  templates:
  - '/etc/alertmanager/template_email.tmpl'
...
  receivers:
   - name: 'email'
     email_configs:
     - to: 'vim27@qq.com'
       send_resolved: true
       html: '{{ template "email.template" . }}'
...
  template_email.tmpl: |-
    {{ define "email.template" }}
    {{ range .Alerts }}
      {{ if eq .Status "firing" }}
        <h3>告警级别：{{ .Labels.severity }}</h3>
        <h3>告警概述：{{ .Annotations.summary }}</h3>
        <h3>告警详情：{{ .Annotations.description }}</h3>
        <h3>报警实例：{{ .Labels.instance }}</h3>
        <h3>开始时间：{{ .StartsAt.Format "2006-01-02 15:04:05" }}</h3>
      {{ else if eq .Status "resolved" }}
        <h3>恢复概述：{{ .Annotations.summary }}</h3>
        <h3>恢复实例：{{ .Labels.instance }}</h3>
        <h3>恢复时间：{{ .EndsAt.Format "2006-01-02 15:04:05" }}</h3>
      {{ end }}
    {{ end }}
    {{ end }}
