第4章 Nginx反向代理

https://www.processon.com/view/link/665178275a676876a641cf95?cid=66503a19e033962c8d0b2687

https://www.processon.com/view/link/66598a2cee40852c5fdd6d7d?cid=6659212f94997339cdd4f28d

第1章反向代理和负载均衡

1.什么是反向代理和负载均衡

后端有多个服务器，通过反向代理将用户流量均衡的分摊，实现负载均衡的效果

2.实现反向代理和负载均衡的软件

HAproxy：只做反向代理

Nginx：既可以做web服务器，也可以做反向代理服务器，反向代理和负载均衡都是Nginx的模块

第2章 Nginx反向代理模块

1.官方地址

https://nginx.org/en/docs/http/ngx_http_proxy_module.html#proxy_pass

2.关键指令

proxy_pass http://要转发到的后端服务器IP地址;

proxy_set_header Host $http_host;		#lb服务器将用户访问网站的HOST信息传递后后端的web服务器
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;	#将用户的真实IP传递给后端的web服务器
proxy_set_header X-Forwarded-Proto $scheme;   # 确保后端应用程序知道原始请求是通过什么类型的协议发起的

proxy_connect_timeout 30;				#代理与后端服务器连接超时时间(代理连接超时)
proxy_read_timeout 60;					#代理等待后端服务器的响应时间
proxy_buffering on;						  #把后端返回的内容先放到缓冲区当中，然后再返回给客户端,边收边传,不是全部接收完再传给客户端
proxy_buffer_size 32k;					#设置nginx代理保存用户头信息的缓冲区大小
proxy_buffers 4 128k;					  #proxy_buffers缓冲区

3.配置举例

简单代理配置：

location / {
    proxy_pass http://10.0.0.7;
    proxy_set_header Host $http_host;
	  proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    proxy_set_header X-Forwarded-Proto $scheme;
}

完善代理配置：

location / {
    # 主要的代理传递指令
    proxy_pass http://10.0.0.7;

    # 设置头信息，确保后端可以接收到正确的客户端数据
    proxy_set_header Host $host;
    proxy_set_header X-Real-IP $remote_addr;
    proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    proxy_set_header X-Forwarded-Proto $scheme;

    # WebSocket 支持
    proxy_http_version 1.1;
    proxy_set_header Upgrade $http_upgrade;
    proxy_set_header Connection "upgrade";

    # 连接与超时设置
    proxy_connect_timeout 30s;  # 后端服务器连接超时时间
    proxy_read_timeout 60s;     # 从后端服务器读取数据的超时时间
    proxy_send_timeout 60s;     # 发送请求到后端服务器的超时时间

    # 缓存和性能优化
    proxy_buffering on;        # 启用缓存响应内容
    proxy_buffers 16 32k;      # 调整缓存大小
    proxy_buffer_size 64k;     # 单个连接的缓冲区大小
}

2.反向代理到单台web服务器

2.1 实验环境

lb-5  Nginx反向代理
web-7 web服务器

2.2 web-7部署测试环境

cat > /etc/nginx/conf.d/proxy.conf << 'EOF'
server {
    listen       80;
    server_name  proxy.luffy.com;

    location / {
        root  /code/proxy;
        index index.html;
    }
}
EOF

mkdir /code/proxy -p
echo web-7 > /code/proxy/index.html
chown -R www:www /code/
systemctl restart nginx

2.3 lb-5安装Nginx

cat > /etc/yum.repos.d/nginx.repo << 'EOF'
[nginx-stable]
name=nginx stable repo
baseurl=http://nginx.org/packages/centos/$releasever/$basearch/
gpgcheck=1
enabled=1
gpgkey=https://nginx.org/keys/nginx_signing.key
module_hotfixes=true

[nginx-mainline]
name=nginx mainline repo
baseurl=http://nginx.org/packages/mainline/centos/$releasever/$basearch/
gpgcheck=1
enabled=0
gpgkey=https://nginx.org/keys/nginx_signing.key
module_hotfixes=true
EOF
yum install nginx -y

2.4 lb-5编写Nginx反向代理配置文件

groupadd -g 1000 www
useradd -u 1000 -g 1000 -M -s /sbin/nologin www
sed -i '/^user/c user  www;' /etc/nginx/nginx.conf
rm -rf /etc/nginx/conf.d/default.conf

cat > /etc/nginx/conf.d/proxy.conf << 'EOF'
server {
    listen       80;
    server_name  proxy.luffy.com;

    location / {
        proxy_pass http://10.0.0.7;
        proxy_set_header Host $http_host;
	      proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    }
}
EOF

systemctl restart nginx

2.5 windows修改hosts解析

10.0.0.5 proxy.luffy.com

第3章 Nginx负载均衡模块

1.官网地址

https://nginx.org/en/docs/http/ngx_http_upstream_module.html

2.upstream 关键指令

**upstream** - 定义一个服务器组，可以在其中列出多个服务器地址及其相关配置。

**server** - 在 location 块中使用，指向 upstream 定义的服务器组。

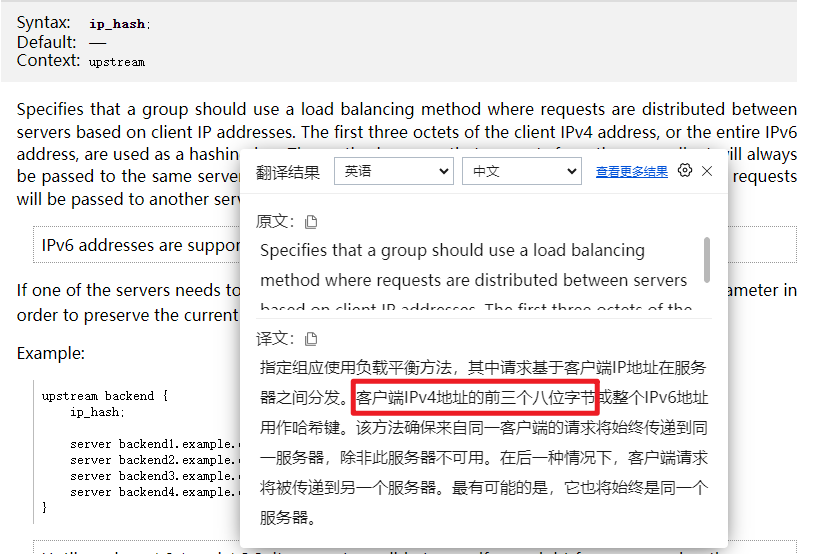

**ip_hash** - 启用会话持久化，使来自同一客户端IP的请求总是被转发到同一服务器。

**hash** -   对指定的键值进行哈希运算来决定请求应该被转发到哪个服务器。

**least_conn**：将请求路由到连接数最少的服务器，帮助实现负载平衡。

3.实验-反向代理到多台服务器实现负载均衡

3.1 web-8部署实验环境

cat > /etc/nginx/conf.d/proxy.conf << 'EOF'
server {
    listen       80;
    server_name  proxy.luffy.com;

    location / {
        root  /code/proxy;
        index index.html;
    }
}
EOF

mkdir /code/proxy -p
echo web-8 > /code/proxy/index.html
chown -R www:www /code/
systemctl restart nginx

3.2 lb-5编写反向代理负载均衡配置

cat > /etc/nginx/conf.d/proxy.conf << 'EOF'
upstream web_pool {
    server 10.0.0.7;
    server 10.0.0.8;
}

server {
    listen       80;
    server_name  proxy.luffy.com;

    location / {
        proxy_pass http://web_pool;
        proxy_set_header Host $http_host;
	      proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    }
}
EOF

systemctl restart nginx

4.负载均衡调度算法

轮询（Round Robin）：

默认采用轮询调度算法，即平均将请求分发到upstream定义的服务器IP地址池里。

权重（Weighted）：

cat > /etc/nginx/conf.d/proxy.conf << 'EOF'
upstream web_pool {
    server 10.0.0.7 weight=1;
    server 10.0.0.8 weight=2;
}

server {
    listen       80;
    server_name  proxy.luffy.com;

    location / {
        proxy_pass http://web_pool;
        proxy_set_header Host $http_host;
	      proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    }
}
EOF
systemctl restart nginx

测试

[root@lb-5 /etc/nginx/conf.d]# for i in {1..100};do curl -s 10.0.0.5;done|sort|uniq -c|sort -rn
     66 web-8
     34 web-7

[root@lb-5 /etc/nginx/conf.d]# for i in {1..1000};do curl -s 10.0.0.5;done|sort|uniq -c|sort -rn
    667 web-8
    333 web-7

IP 哈希（IP Hash）：

cat > /etc/nginx/conf.d/proxy.conf << 'EOF'
upstream web_pool {
    ip_hash;
	  server 10.0.0.7 ;
    server 10.0.0.8 ;
}

server {
    listen       80;
    server_name  proxy.luffy.com;

    location / {
        proxy_pass http://web_pool;
        proxy_set_header Host $http_host;
	      proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    }
}
EOF

systemctl restart nginx

URI 哈希（URI Hash）：

cat > /etc/nginx/conf.d/proxy.conf << 'EOF'
upstream web_pool {
    hash   $request_uri;
	  server 10.0.0.7 ;
    server 10.0.0.8 ;
}

server {
    listen       80;
    server_name  proxy.luffy.com;

    location / {
        proxy_pass http://web_pool;
        proxy_set_header Host $http_host;
	      proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    }
}
EOF

systemctl restart nginx

最少连接（Least Connections）

cat > /etc/nginx/conf.d/proxy.conf << 'EOF'
upstream web_pool {
    least_conn;
	  server 10.0.0.7;
    server 10.0.0.8;
}

server {
    listen       80;
    server_name  proxy.luffy.com;

    location / {
        proxy_pass http://web_pool;
        proxy_set_header Host $http_host;
	      proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    }
}
EOF

systemctl restart nginx

最少响应时间（ Least Time ）

cat > /etc/nginx/conf.d/proxy.conf << 'EOF'
upstream web_pool {
    least_time last_byte;  # 完整响应最快的服务器
    #least_time header;    # 响应头最快的服务器
    #least_time last_byte inflight;  # 考虑在途请求的完整响应时间

    server 10.0.0.7;
    server 10.0.0.8;
}

server {
    listen       80;
    server_name  proxy.luffy.com;

    location / {
        proxy_pass http://web_pool;
        proxy_set_header Host $http_host;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    }
}
EOF

systemctl restart nginx

5.server指令参数

backup 备用

cat > /etc/nginx/conf.d/proxy.conf << 'EOF'
upstream web_pool {
	  server 10.0.0.7 backup;
    server 10.0.0.8 ;
}

server {
    listen       80;
    server_name  proxy.luffy.com;

    location / {
        proxy_pass http://web_pool;
        proxy_set_header Host $http_host;
	      proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    }
}
EOF
systemctl restart nginx

down 停用

cat > /etc/nginx/conf.d/proxy.conf << 'EOF'
upstream web_pool {
	  server 10.0.0.7 down;
    server 10.0.0.8 ;
}

server {
    listen       80;
    server_name  proxy.luffy.com;

    location / {
        proxy_pass http://web_pool;
        proxy_set_header Host $http_host;
	      proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    }
}
EOF
systemctl restart nginx

max_conns 最大连接数

cat > /etc/nginx/conf.d/proxy.conf << 'EOF'
upstream web_pool {
	  server 10.0.0.7 max_conns=10;
    server 10.0.0.8 ;
}

server {
    listen       80;
    server_name  proxy.luffy.com;

    location / {
        proxy_pass http://web_pool;
        proxy_set_header Host $http_host;
	      proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    }
}
EOF
systemctl restart nginx

max_fails 最大失败数

cat > /etc/nginx/conf.d/proxy.conf << 'EOF'
upstream web_pool {
	  server 10.0.0.7 max_fails=3;
    server 10.0.0.8 ;
}

server {
    listen       80;
    server_name  proxy.luffy.com;

    location / {
        proxy_pass http://web_pool;
        proxy_set_header Host $http_host;
	      proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    }
}
EOF
systemctl restart nginx

fail_timeout 失败超时时间

cat > /etc/nginx/conf.d/proxy.conf << 'EOF'
upstream web_pool {
	  server 10.0.0.7 max_fails=3 fail_timeout=5 ;
    server 10.0.0.8 ;
}

server {
    listen       80;
    server_name  proxy.luffy.com;

    location / {
        proxy_pass http://web_pool;
        proxy_set_header Host $http_host;
	      proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    }
}
EOF
systemctl restart nginx

第4章 Nginx负载均衡实战

1.根据域名配置转发

需求：

blog.luffy.com  --> blog_pool
kod.luffy.com --> kod_pool

多个负载均衡池配的反向代理配置：

cat > /etc/nginx/conf.d/proxy.conf << 'EOF'
upstream blog_pool {
	server 10.0.0.7;
}

upstream kod_pool {
    server 10.0.0.8;
}

server {
    listen       80;
    server_name  blog.luffy.com;

    location / {
        proxy_pass http://blog_pool;
        proxy_set_header Host $http_host;
	      proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    }
}

server {
    listen       80;
    server_name  kod.luffy.com;

    location / {
        proxy_pass http://kod_pool;
        proxy_set_header Host $http_host;
	      proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    }
}

EOF
systemctl restart nginx

两个域名访问相同负载均衡地址池：

cat > /etc/nginx/conf.d/proxy.conf << 'EOF'
upstream web_pool {
	server 10.0.0.7;
	server 10.0.0.8;
}

server {
    listen       80;
    server_name  blog.luffy.com;

    location / {
        proxy_pass http://web_pool;
        proxy_set_header Host $http_host;
	      proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    }
}

server {
    listen       80;
    server_name  kod.luffy.com;

    location / {
        proxy_pass http://web_pool;
        proxy_set_header Host $http_host;
	      proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    }
}

EOF
systemctl restart nginx

精简配置:

cat > /etc/nginx/conf.d/proxy.conf << 'EOF'
upstream web_pool {
	server 10.0.0.7;
	server 10.0.0.8;
}

server {
    listen       80;
    server_name  blog.luffy.com kod.luffy.com;

    location / {
        proxy_pass http://web_pool;
        proxy_set_header Host $http_host;
	      proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    }
}
EOF

systemctl restart nginx

2.动静分离

所有图片类型的数据都转发到专门的图片服务器

upstream static {
    server 172.16.1.7;
    server 172.16.1.8;
}

upstream web {
    server 172.16.1.8;
    server 172.16.1.9;
    server 172.16.1.10;
    server 172.16.1.11;
}

server {
    listen 80;
    server_name blog.luffy.com;

    location / {
    	  proxy_pass http://web;
        proxy_set_header Host $http_host;
	      proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    }

    location ~ \.(gif|jpg|jpeg|png|bmp|swf|css|js)$ {
    	  proxy_pass http://static;
        proxy_set_header Host $http_host;
	      proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    }
}

第5章 Nginx四层代理

1.四层负载均衡小试身手

项目需求

lb-51和lb-52上分别安装了redis和mysql数据库
访问lb服务器的3306和6379可以代理到后端对应的数据库
ssh访问lb服务器的8000端口，代理到m-61的22端口上

lb-5服务器的nginx配置文件

stream {
     upstream redis_server {
         server 172.16.1.51:6379 max_fails=3 fail_timeout=30s;
         server 172.16.1.52:6379 max_fails=3 fail_timeout=30s;
     }

     upstream mysql_server {
         server 172.16.1.51:3306 max_fails=3 fail_timeout=30s;
         server 172.16.1.52:3306 max_fails=3 fail_timeout=30s;
     }

     server {
         listen 10.0.0.7:6379;
         proxy_pass redis_server;
         include proxy_params;
     }

     server {
         listen 10.0.0.7:3306;
         proxy_pass mysql_server;
         include proxy_params;
     }

     server {
         listen 10.0.0.7:3306;
         proxy_pass 172.16.1.61:22;
         include proxy_params;
     }
 }

 nginx -t
 systemctl restart nginx

访问并测试

redis-cli -h 10.0.0.5
mysql -uroot -p123 -h10.0.0.5

第6章代理参数配置优化

未优化前

cat > /etc/nginx/conf.d/proxy.conf << 'EOF'
upstream web_pool {
	server 10.0.0.7;
	server 10.0.0.8;
}

server {
    listen       80;
    server_name  kod.luffy.com;

    location / {
        proxy_pass http://web_pool;
        proxy_set_header Host $http_host;
	      proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
	      proxy_connect_timeout 30;
        proxy_send_timeout 60;
        proxy_read_timeout 60;
        proxy_buffering on;
        proxy_buffer_size 32k;
        proxy_buffers 4 128k;
    }
}

server {
    listen       80;
    server_name  blog.luffy.com;

    location / {
        proxy_pass http://web_pool;
        proxy_set_header Host $http_host;
	      proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
	      proxy_connect_timeout 30;
        proxy_send_timeout 60;
        proxy_read_timeout 60;
        proxy_buffering on;
        proxy_buffer_size 32k;
        proxy_buffers 4 128k;
    }
}
EOF

systemctl restart nginx

优化步骤

第一步：将相同的代理参数写入到一个文件里

cat > /etc/nginx/proxy_params << 'EOF'
proxy_set_header Host $http_host;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_connect_timeout 30;
proxy_send_timeout 60;
proxy_read_timeout 60;
proxy_buffering on;
proxy_buffer_size 32k;
proxy_buffers 4 128k;
EOF

第二步：跳转的配置文件里包含即可

cat > /etc/nginx/conf.d/proxy.conf << 'EOF'
upstream web_pool {
	server 10.0.0.7;
	server 10.0.0.8;
}

server {
    listen       80;
    server_name  kod.luffy.com blog.luffy.com;

    location / {
        proxy_pass http://web_pool;
        include proxy_params;
    }
}
EOF

systemctl restart nginx

更新: 2024-10-18 14:12:14

第1章 反向代理和负载均衡

1.什么是反向代理和负载均衡​

2.实现反向代理和负载均衡的软件​

第2章 Nginx反向代理模块

1.官方地址​

2.关键指令​

3.配置举例​

2.反向代理到单台web服务器​

2.1 实验环境​

2.2 web-7部署测试环境​

2.3 lb-5安装Nginx​

2.4 lb-5编写Nginx反向代理配置文件​

2.5 windows修改hosts解析​

第3章 Nginx负载均衡模块

1.官网地址​

2.upstream 关键指令​

3.实验-反向代理到多台服务器实现负载均衡​

3.1 web-8部署实验环境​

3.2 lb-5编写反向代理负载均衡配置​

4.负载均衡调度算法​

轮询（Round Robin）：​

权重（Weighted）：​

IP 哈希（IP Hash）：​

URI 哈希（URI Hash）：​

最少连接（Least Connections）​

最少响应时间（ Least Time ）​

5.server指令参数​

backup 备用​

down 停用​

max_conns 最大连接数​

max_fails 最大失败数​

fail_timeout 失败超时时间​

第4章 Nginx负载均衡实战

1.根据域名配置转发​

2.动静分离​

第5章 Nginx四层代理

1.四层负载均衡小试身手​

第6章 代理参数配置优化

未优化前​

优化步骤​

第1章反向代理和负载均衡

1.什么是反向代理和负载均衡

2.实现反向代理和负载均衡的软件

1.官方地址

2.关键指令

3.配置举例

2.反向代理到单台web服务器

2.1 实验环境

2.2 web-7部署测试环境

2.3 lb-5安装Nginx

2.4 lb-5编写Nginx反向代理配置文件

2.5 windows修改hosts解析

1.官网地址

2.upstream 关键指令

3.实验-反向代理到多台服务器实现负载均衡

3.1 web-8部署实验环境

3.2 lb-5编写反向代理负载均衡配置

4.负载均衡调度算法

轮询（Round Robin）：

权重（Weighted）：

IP 哈希（IP Hash）：

URI 哈希（URI Hash）：

最少连接（Least Connections）

最少响应时间（ Least Time ）

5.server指令参数

backup 备用

down 停用

max_conns 最大连接数

max_fails 最大失败数

fail_timeout 失败超时时间

1.根据域名配置转发

2.动静分离

1.四层负载均衡小试身手

第6章代理参数配置优化

未优化前

优化步骤
