第10章 Jenkins Pipeline共享库

1.什么是共享库​

https://www.jenkins.io/zh/doc/book/pipeline/shared-libraries/

官方介绍

由于流水线被组织中越来越多的项目所采用，常见的模式很可能会出现。在多个项目之间共享流水线有助于减少冗余并保持代码"DRY"。

流水线支持创建"共享库"，可以在外部源代码控制仓库中定义并加载到现有的流水线中。

2.共享库目录结构规划​

[root@jenkins-201 ~/jenkins-libray]# tree
.
├── JenkinsfileCD
├── JenkinsfileCI
├── resources
│   └── kaoshi-service.sh
└── src
    └── org
        └── devops
            ├── Artifact.groovy
            ├── Build.groovy
            ├── Checkout.groovy
            ├── Deploy.groovy
            └── Sonar.groovy

4 directories, 8 files

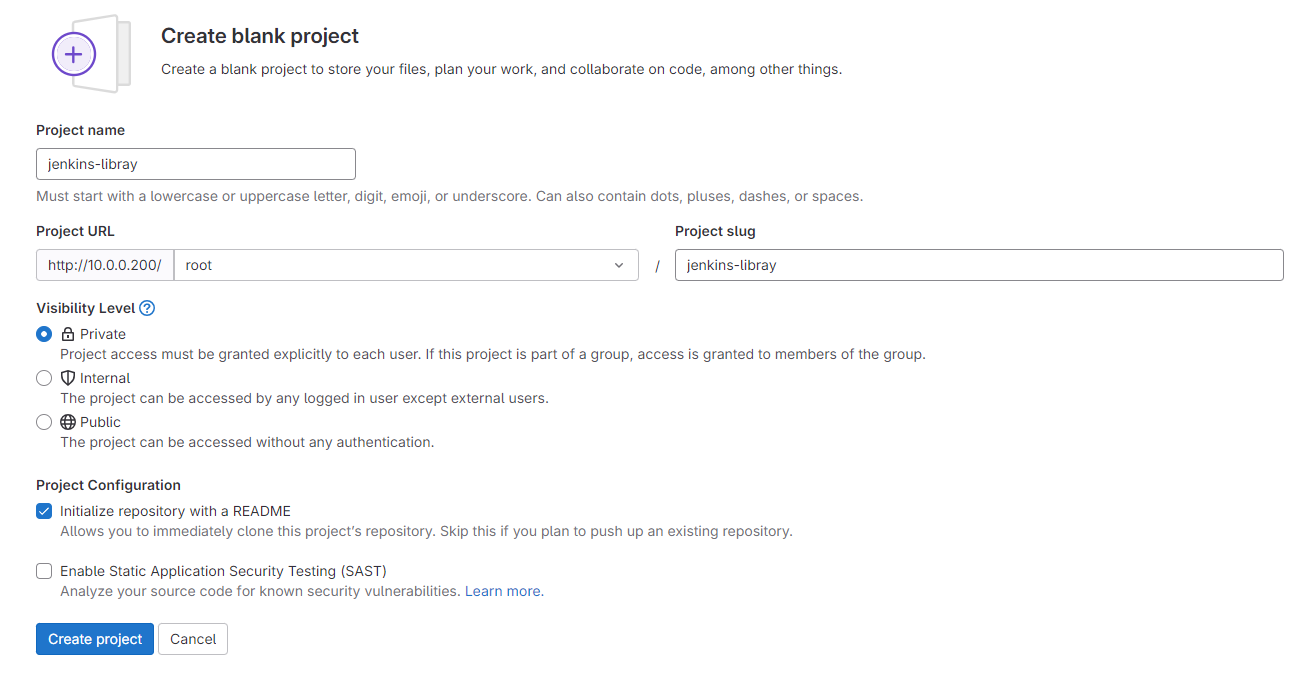

3.创建共享库​


4.编写共享库代码​

Checkout.groovy​

### Checkout.groovy
```groovy
package org.devops

def CheckoutByTag(){
    checkout([$class: 'GitSCM',
                 branches: [[name: "${params.appVersion}"]],
                 userRemoteConfigs: [[url: 'git@10.0.0.200:root/kaoshi.git']]])
}

Artifact.groovy​

### Artifact.groovy
```groovy
package org.devops

def CheckNexusArtifact(){
    POM = readMavenPom file: 'pom.xml'
    env.ARTIFACT_ID = "${POM.artifactId}"
    env.PACKAGING = "${POM.packaging}"
    env.GROUP_ID = "${POM.groupId}"
    env.GROUP_ID_URL = "${POM.groupId}".replace('.', '/')
    env.VERSION = "${POM.version}"
    env.JAR_FILE = "${env.ARTIFACT_ID}-${env.VERSION}.${env.PACKAGING}"

    // 构建 Nexus REST API 的 URL
    def artifactUrl = "${env.NEXUS_URL}/repository/${env.REPO_NAME}/${env.GROUP_ID_URL}/${env.ARTIFACT_ID}/${env.VERSION}/${env.JAR_FILE}"
    env.JAR_URL = "${artifactUrl}"

    // 发送 HTTP 请求到 Nexus
    def status = sh(script: "curl -s -o /dev/null -w '%{http_code}' -u ${env.NEXUS_USER} -I ${artifactUrl}", returnStdout: true).trim()
	env.JAR_STATUS = "${status}"
}

def UploadNexusArtifact(){
	sh """
		/opt/maven/bin/mvn -s settings.xml deploy:deploy-file \
		-DgroupId=${env.GROUP_ID} \
		-DartifactId=${env.ARTIFACT_ID} \
		-Dversion=${env.VERSION} \
		-Dpackaging=${env.PACKAGING} \
		-Dfile=target/${env.ARTIFACT_ID}-${env.VERSION}.${env.PACKAGING} \
		-Durl=${NEXUS_URL}/repository/${RELEASE_NAME}/ \
		-DrepositoryId=releases
	"""
}

def DownloadNexusArtifact(){
	sh "curl -s -u ${NEXUS_USER} -o ${env.JAR_NAME} ${env.JAR_URL}"
}

Sonar.groovy​

### Sonar.groovy
```groovy
package org.devops

def SonarScanner(){
	withCredentials([string(credentialsId: 'sonar-token', variable: 'sonarToken')]) {
		sh """
			/opt/sonar-scanner/bin/sonar-scanner -Dsonar.host.url=${SONAR_URL} \
			-Dsonar.login=${sonarToken} \
			-Dsonar.projectKey=${JOB_NAME} \
			-Dsonar.projectName=${JOB_NAME} \
			-Dsonar.projectVersion=${appVersion} \
			-Dsonar.ws.timeout=30 \
			-Dsonar.projectDescription="luffy ${JOB_NAME}" \
			-Dsonar.links.homepage=${SONAR_URL}/${JOB_NAME} \
			-Dsonar.sources=src \
			-Dsonar.sourceEncoding=UTF-8 \
			-Dsonar.java.binaries=target/classes \
			-Dsonar.java.test.binaries=target/test-classes \
			-Dsonar.java.surefire.report=target/surefire-reports
		"""
	}
}

Deploy.groovy​

### Deploy.groovy
```groovy
package org.devops

def AnsibleDeploy(){
	sh """
	    ansible ${deployHost} -m file -a "path=/opt/app state=directory"
	    ansible ${deployHost} -m copy -a "src=${env.JAR_NAME} dest=/opt/app/"
        ansible ${deployHost} -m copy -a "src=kaoshi-service.sh dest=/opt/app/"
        ansible ${deployHost} -m shell -a "/bin/bash /opt/app/kaoshi-service.sh stop"
        ansible ${deployHost} -m shell -a "/bin/bash /opt/app/kaoshi-service.sh start ${env.VERSION}"
	"""
}

Build.groovy​

### Build.groovy
```groovy
package org.devops

def Build(){
	sh "/opt/maven/bin/mvn -s settings.xml clean package"
}

JenkinsfileCI​

### JenkinsfileCI
```groovy
@Library("devops@main") _

//导入模块
def build = new org.devops.Build()
def sonar = new org.devops.Sonar()
def artifact = new org.devops.Artifact()
def checkout = new org.devops.Checkout()

pipeline{
    agent any

	environment{
		JAVA_HOME = '/opt/jdk8'
		SONAR_URL = 'http://10.0.0.203:9000'
		JOB_NAME = 'kaoshi-maven-service'
		RELEASE_NAME = 'kaoshi-release'
		NEXUS_URL = 'http://10.0.0.202:8081'
		NEXUS_USER = 'admin:admin'
		GIT_URL = 'git@10.0.0.200:root/kaoshi.git'
	}

	parameters {
		gitParameter name: 'appVersion',
			defaultValue: 'origin/main',
			description: '当前代码仓库版本:',
			useRepository: 'git@10.0.0.200:root/kaoshi.git',
			type: 'PT_TAG'
        activeChoice choiceType: 'PT_SINGLE_SELECT',
			description: '是否进行代码扫描?',
			name: 'scanCode',
			randomName: 'choice-parameter-29402868847477',
			script: groovyScript(script: [script: 'return ["true","false"]'])
	}

	stages{
		stage('checkout'){
			steps{
				script{
					checkout.CheckoutByTag()
				}
			}
		}

		stage('check jar'){
			steps{
				script{
					artifact.CheckNexusArtifact()
                    if (env.JAR_STATUS == '200') {
                        input message: '制品已经存在,是否继续构建？', ok: 'ok'
                    }
				}
			}
		}

		stage('build'){
			steps{
				script{
					build.Build()
				}
			}
		}

		stage('sonar'){
            when {
                environment name: 'scanCode', value: 'true'
            }

			steps{
				script{
					sonar.SonarScanner()
				}
			}
		}

        stage("check upload") {
            steps {
                input message: '确定要上传吗？', ok: 'ok'
            }
        }

		stage('upload'){
			steps{
				script{
					artifact.UploadNexusArtifact()
				}
			}
		}
	}
}

JenkinsfileCD​

### JenkinsfileCD
```groovy
@Library("devops@main") _

//导入模块
def artifact = new org.devops.Artifact()
def checkout = new org.devops.Checkout()
def deploy = new org.devops.Deploy()

pipeline{
    agent any

	environment{
		JAVA_HOME = '/opt/jdk8'
		JOB_NAME = 'kaoshi-maven-service'
		RELEASE_NAME = 'kaoshi-release'
		NEXUS_URL = 'http://10.0.0.202:8081'
		NEXUS_USER = 'admin:admin'

	}

	parameters {
		gitParameter name: 'appVersion',
			defaultValue: 'origin/main',
			description: '当前代码仓库版本:',
			useRepository: 'git@10.0.0.200:root/kaoshi.git',
			type: 'PT_TAG'

		activeChoice choiceType: 'PT_SINGLE_SELECT',
			description: '请选择发布方式：',
			name: 'deployType',
			randomName: 	'choice-parameter-87729400405075',
			script: groovyScript(script: [script: 'return ["deploy","rollback"]'])

		activeChoice choiceType: 'PT_SINGLE_SELECT',
			description: '请选择发布环境:',
			name: 'deployEnv',
			randomName: 'choice-parameter-87788334328077',
			script: groovyScript(script: [script: '''return ["TEST","PROD"]'''])

		reactiveChoice choiceType: 'PT_CHECKBOX',
			description: '请选择发布主机：',
			name: 'deployHost',
			randomName: 'choice-parameter-87894284640976',
			referencedParameters: 'deployEnv',
			script: groovyScript(script: [script: '''
				if (deployEnv.equals("TEST")) {
					return ["10.0.0.5","10.0.0.6","TEST"]
				}

				if (deployEnv.equals("PROD")) {
					return ["10.0.0.7","10.0.0.8","PROD"]
				}
			'''])
	}

	stages{
		stage('checkout'){
			steps{
				script{
					checkout.CheckoutByTag()
				}
			}
		}

		stage('check jar'){
			steps{
				script{
					artifact.CheckNexusArtifact()


                    if (env.JAR_STATUS == '200') {
                        echo "制品存在"
                    }
				}
			}
		}

		stage('download'){
			steps{
				script{
					artifact.DownloadNexusArtifact()
				}
			}
		}

		stage('check deploy'){
			steps{
				script{
					input message: '是否部署？', ok: 'ok'
				}
			}
		}

		stage('deploy'){
			steps{
				script{
					deploy.AnsibleDeploy()
				}
			}
		}
	}
}

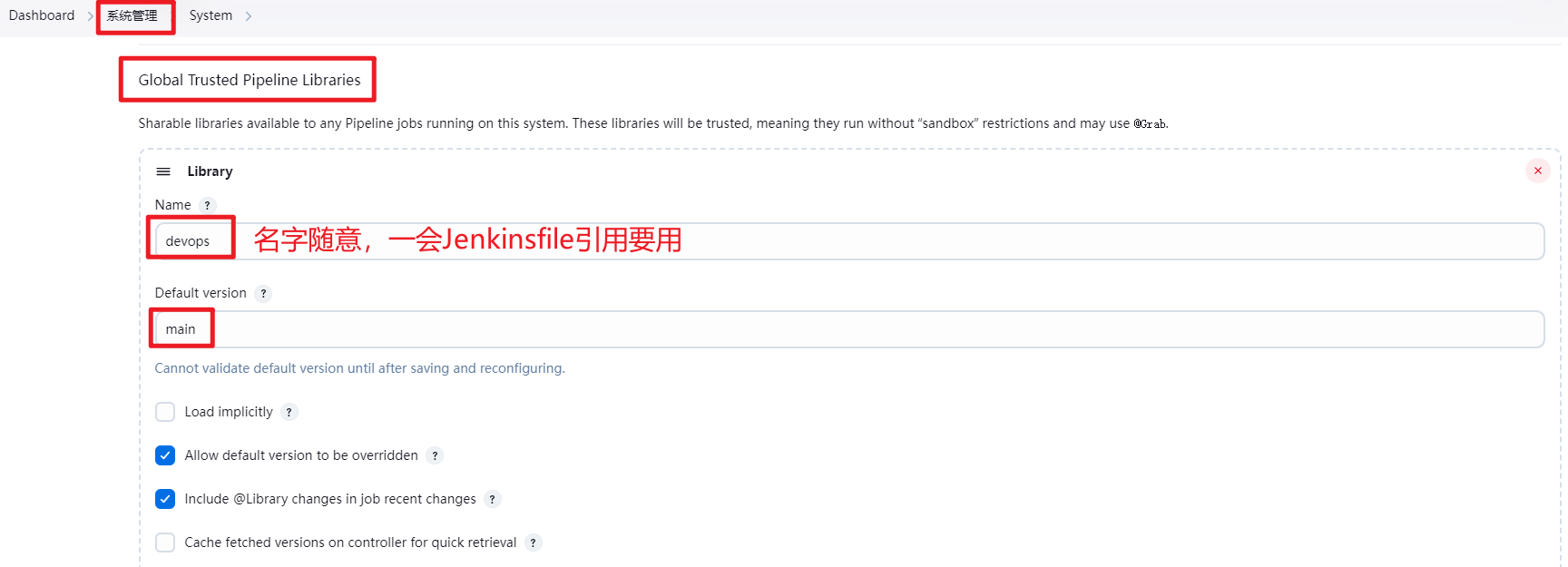

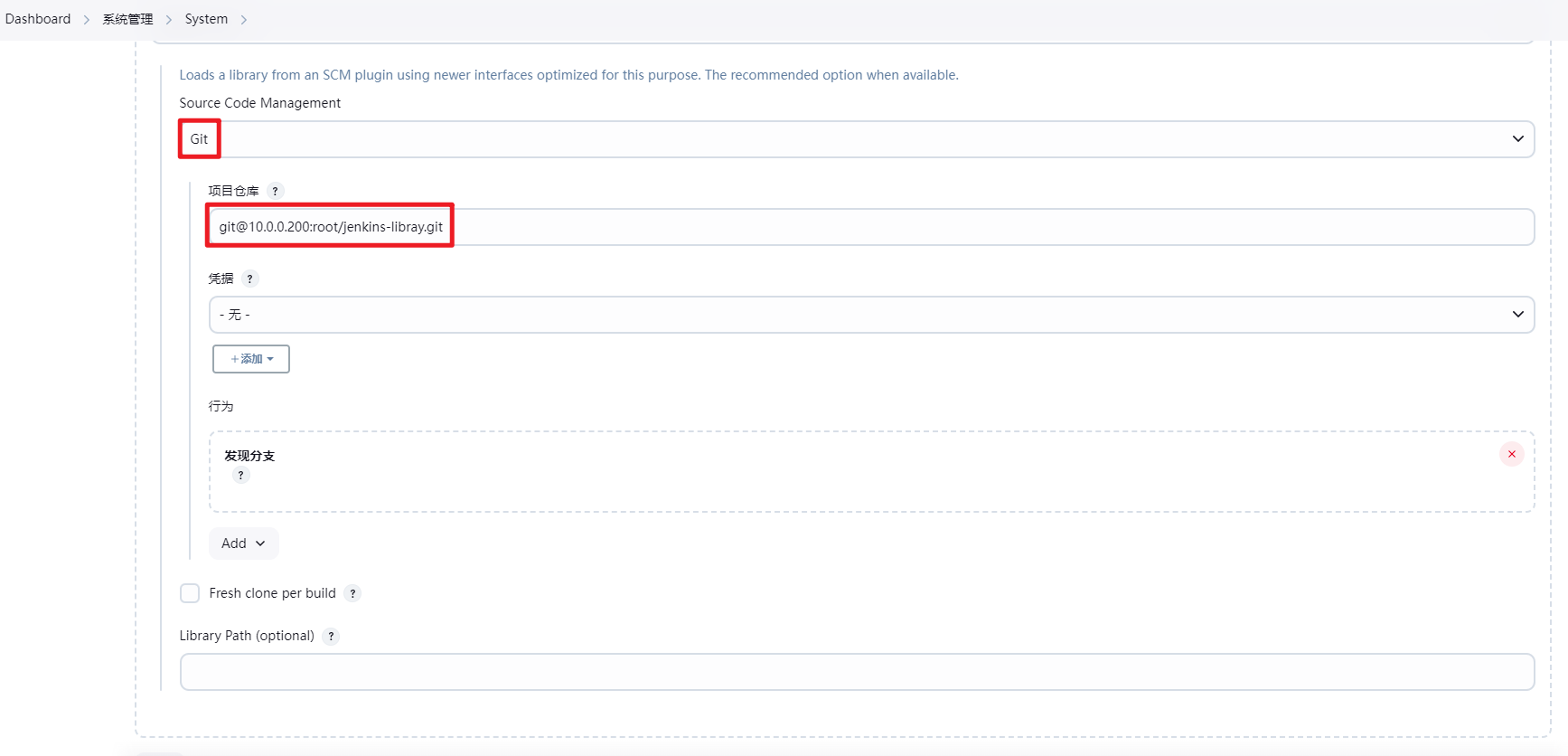

5.Jenkins加载共享库​

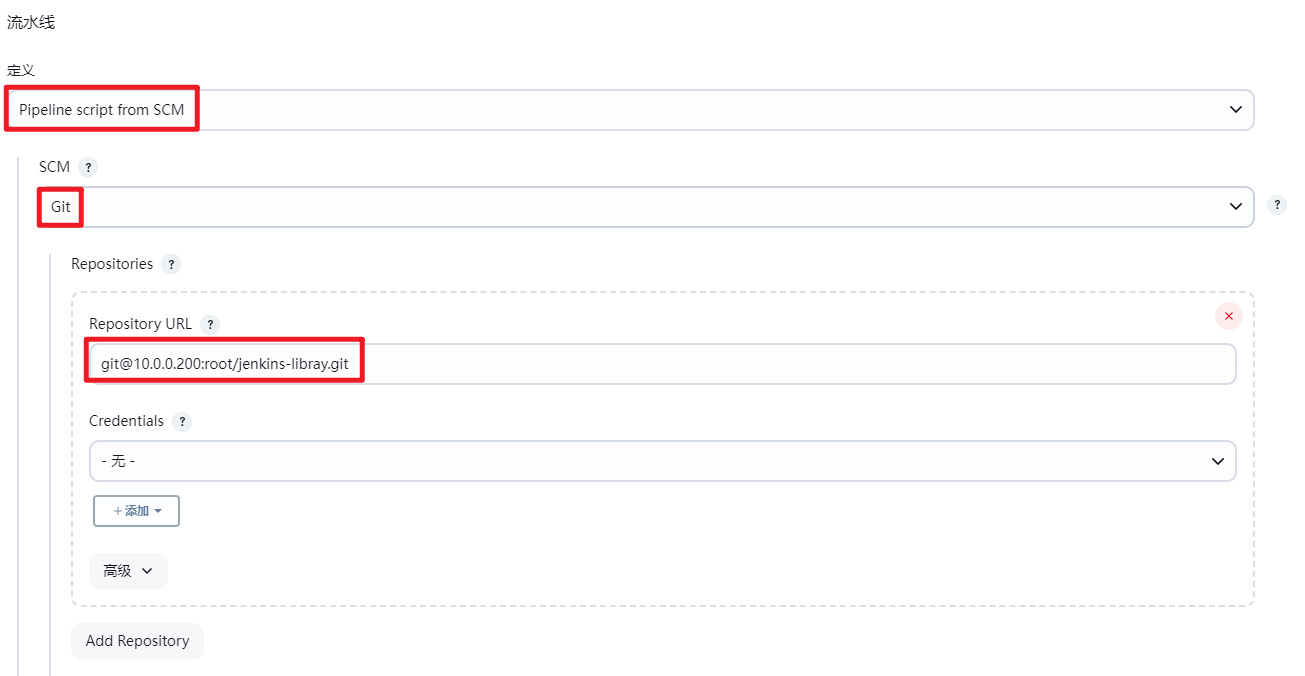

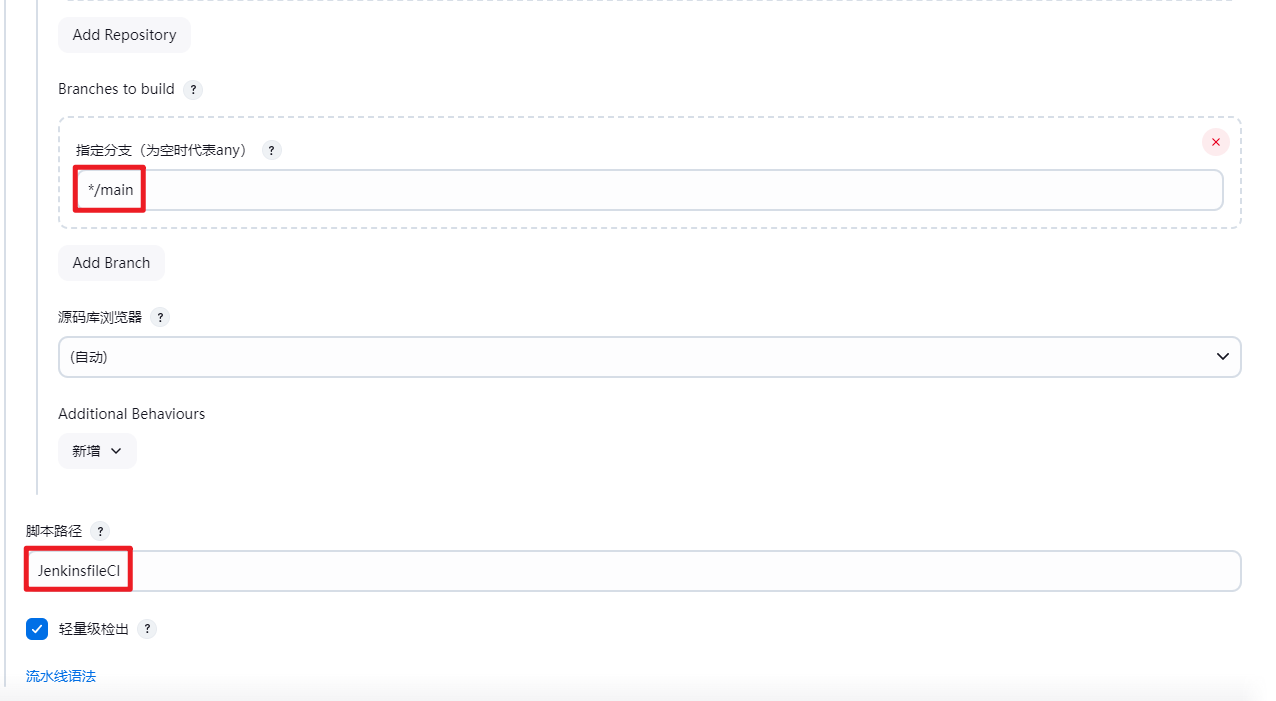

6.Jenkins Pipeline SCM配置​
