第4章 GitLab权限实战

1. 实验说明​

用户-项目组-项目的关系​

权限管理模型
  1. 项目由项目组来创建，而不是由用户创建
  2. 用户通过加入到不同的组，来实现对项目的访问或者提交
  3. 项目可以设置为只有项目组可以查看，所有登录用户可以查看和谁都可以看三种

建议的操作流程​

操作流程
  1. 第一步：创建组 Group
  2. 第二步：基于组创建项目 Project
  3. 第三步：创建用户，分配组，分配权限

实验需求分析​

实验要求

1. 创建 2 个组

  • dev（开发组）
  • ops（运维组）

2. 创建 2 个项目

  • ansible（属于 ops 组）
  • game（属于 dev 组）

3. 创建 3 个用户

  • cto（技术总监）
  • oldya_ops（运维人员）
  • oldya_dev（开发人员）

4. 分配权限

  • cto：对所有组都有权限，拥有合并分支的权限
  • oldya_ops：对 ops 组有所有权限，可以推拉代码；对 dev 组只有拉取代码的权限
  • oldya_dev：对 dev 组有所有权限，可以推拉代码

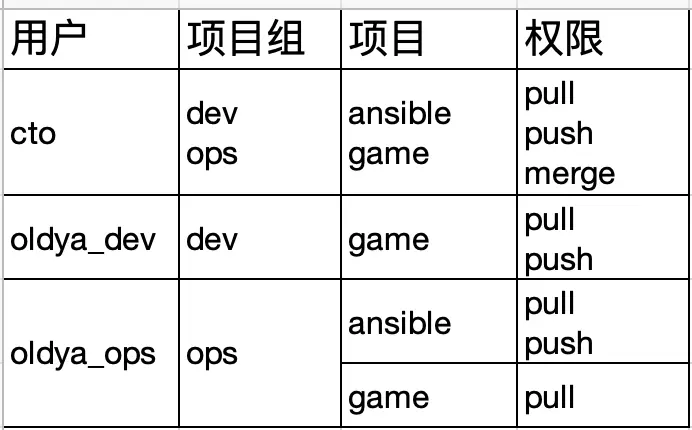

图表版

用户权限描述

2. 创建组​

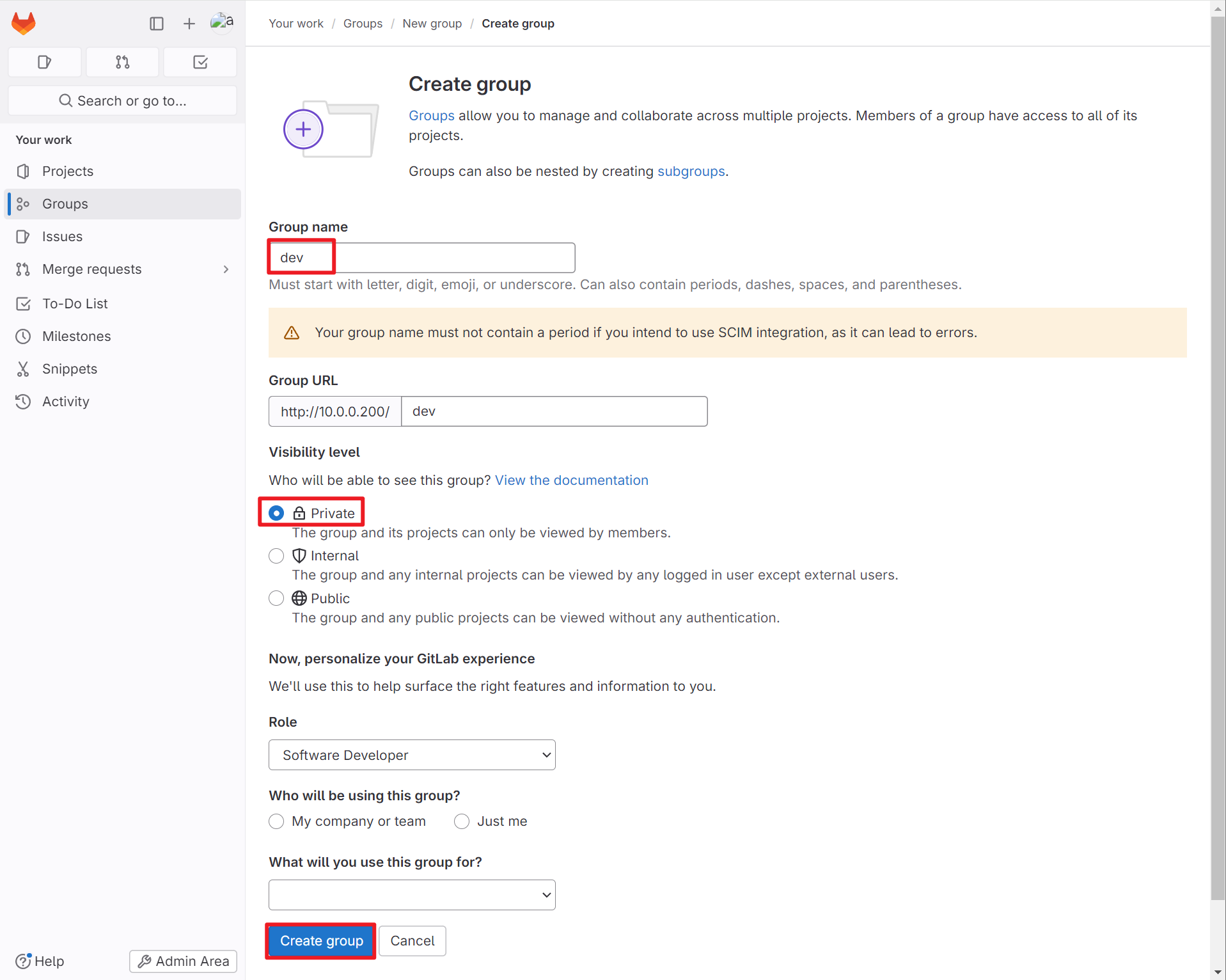

2.1 创建 dev 组​

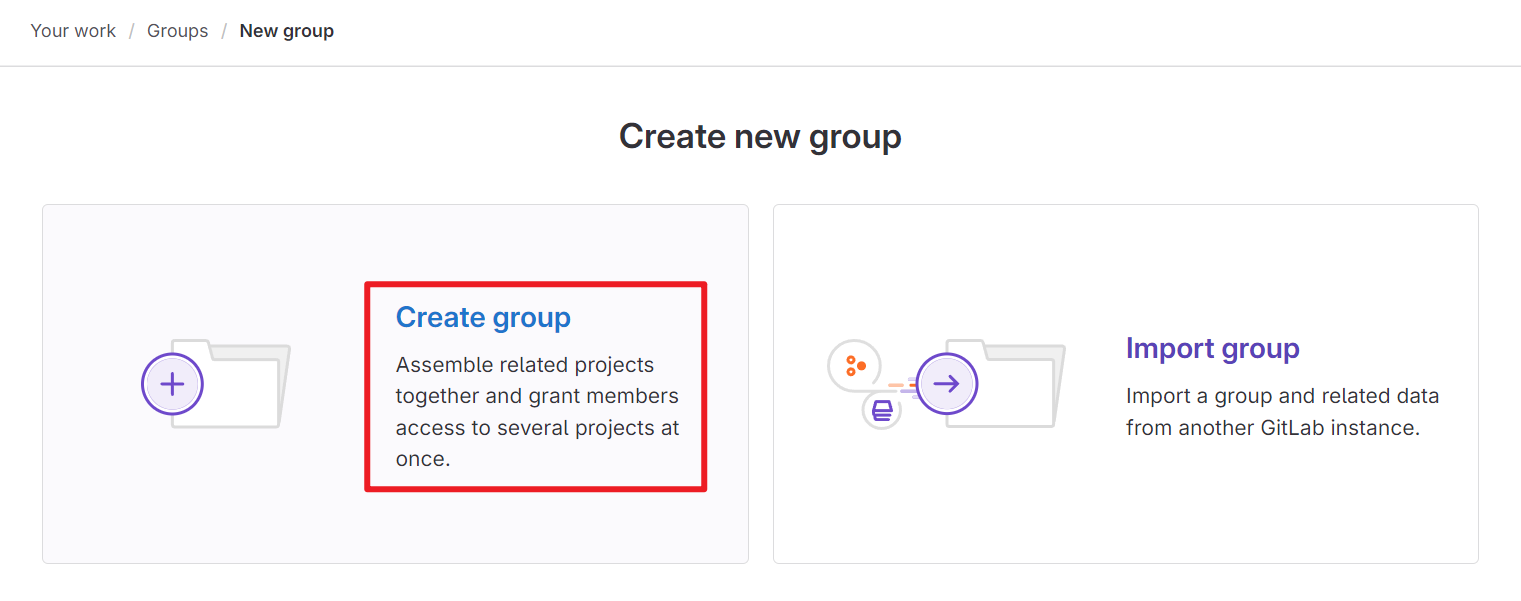

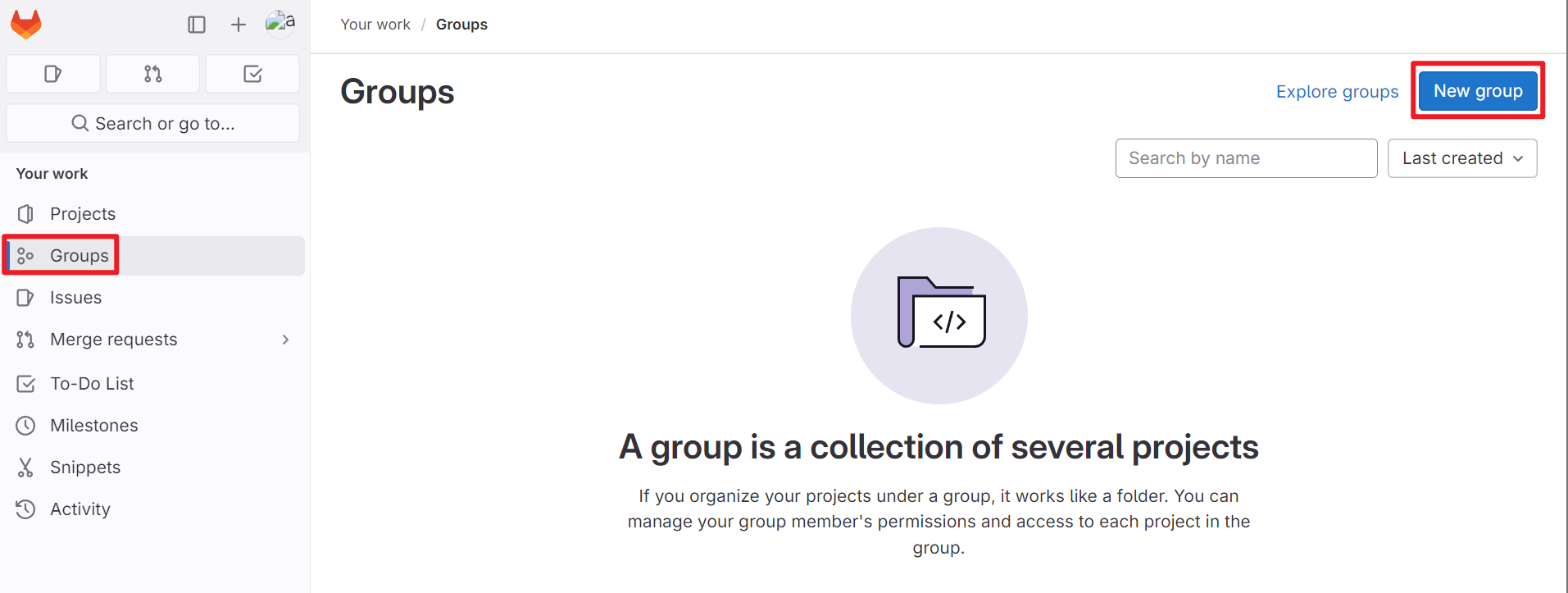

创建组

还是创建组

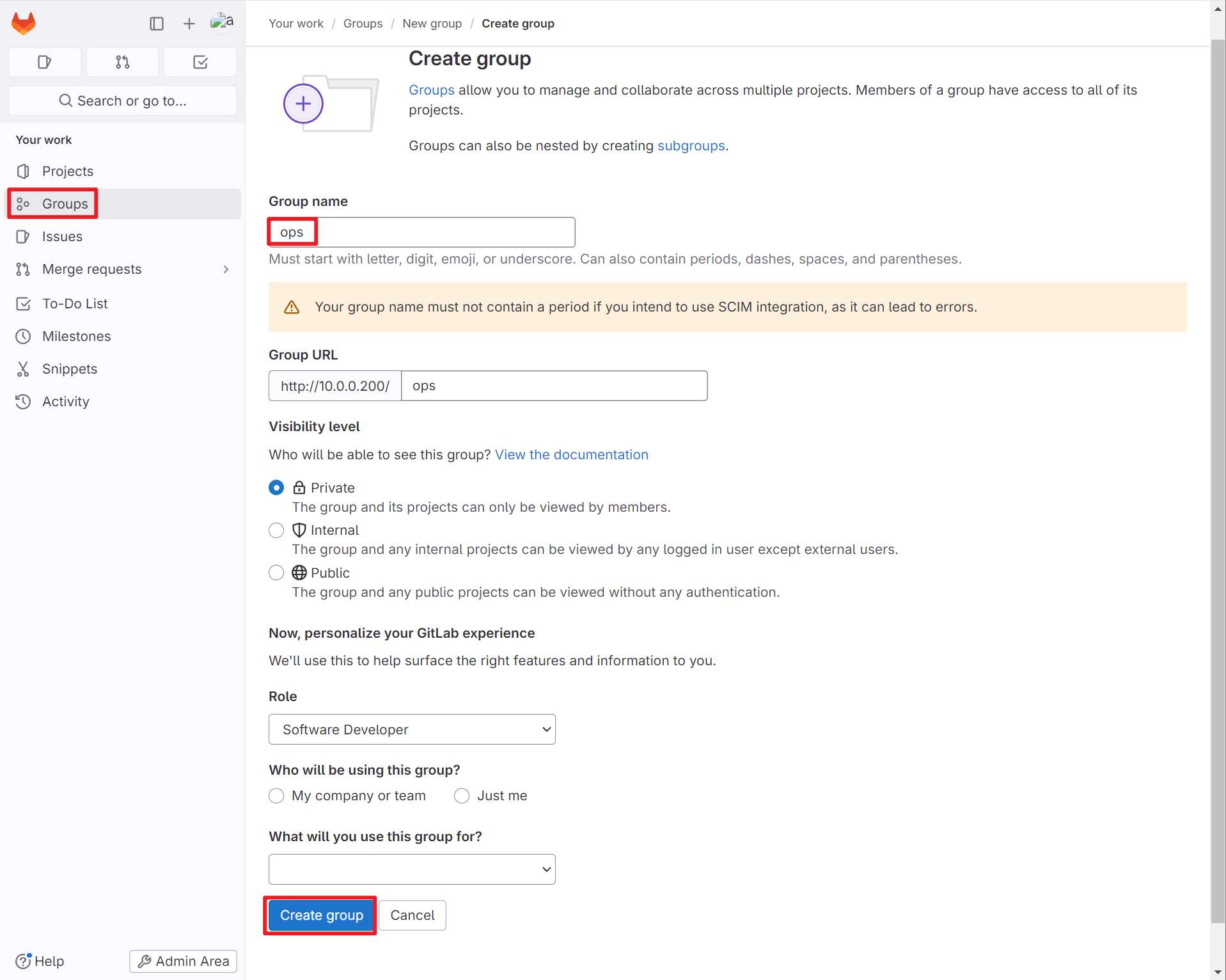

2.2 创建 ops 组​

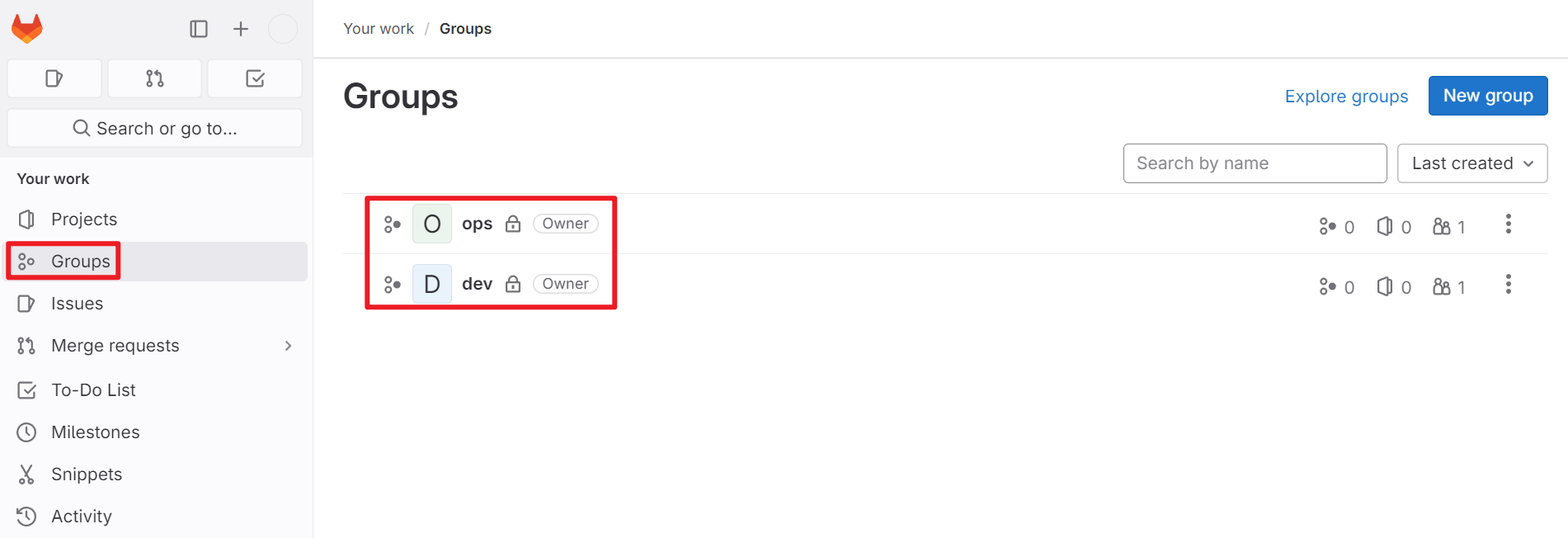

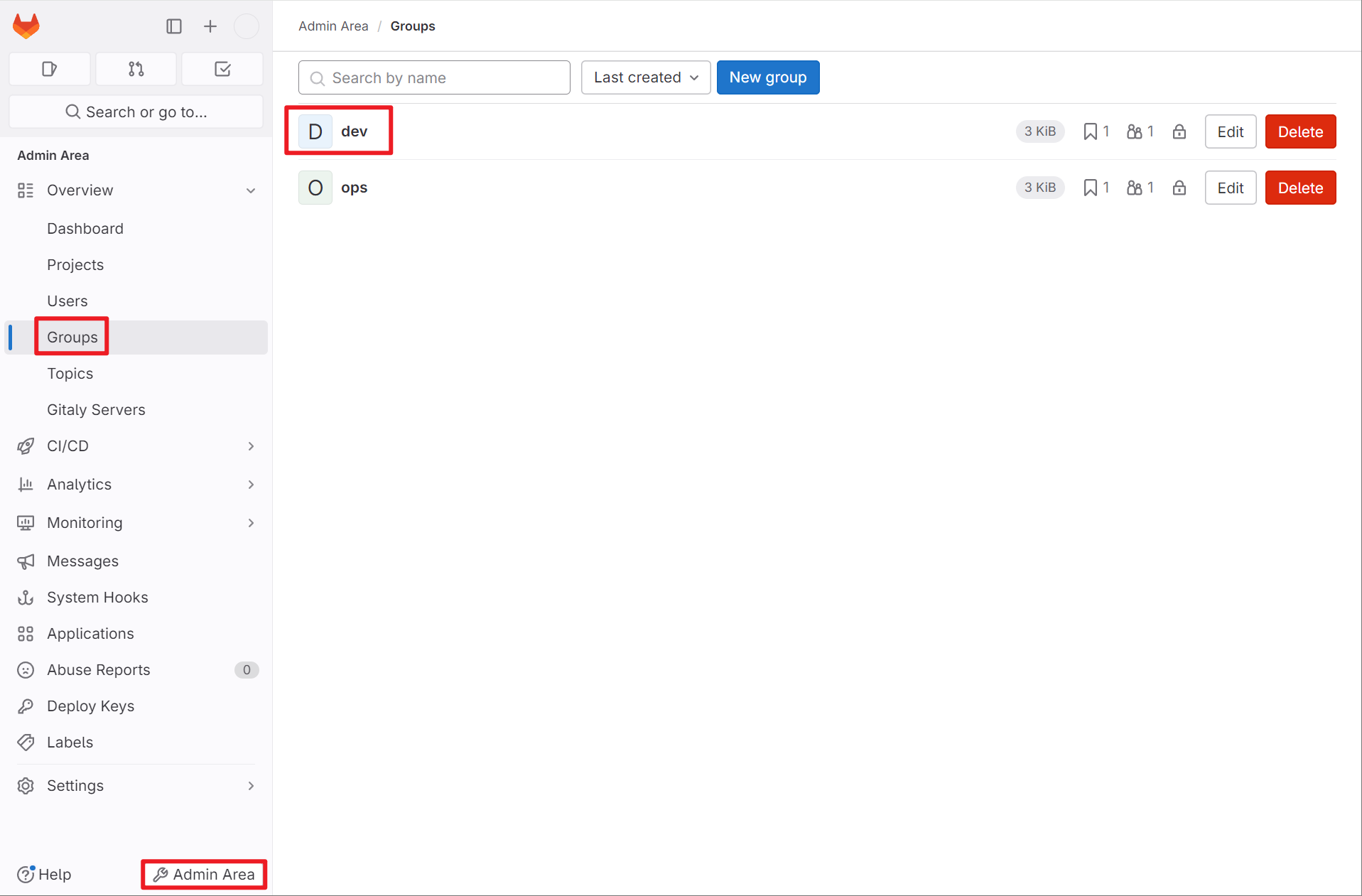

2.3 检查​


3. 创建项目​

3.1 创建 game 项目（属于 dev 组）​

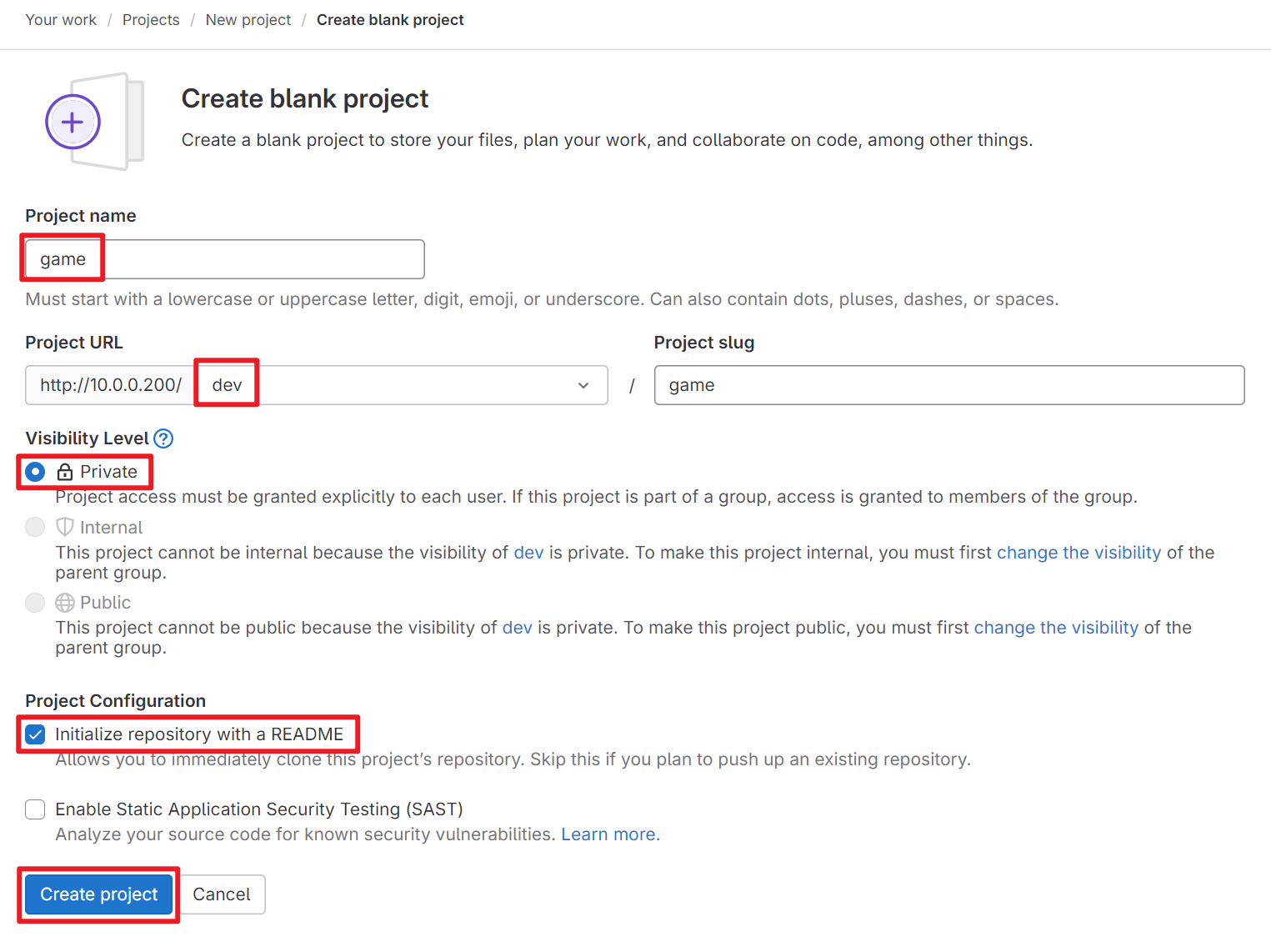

创建game项目

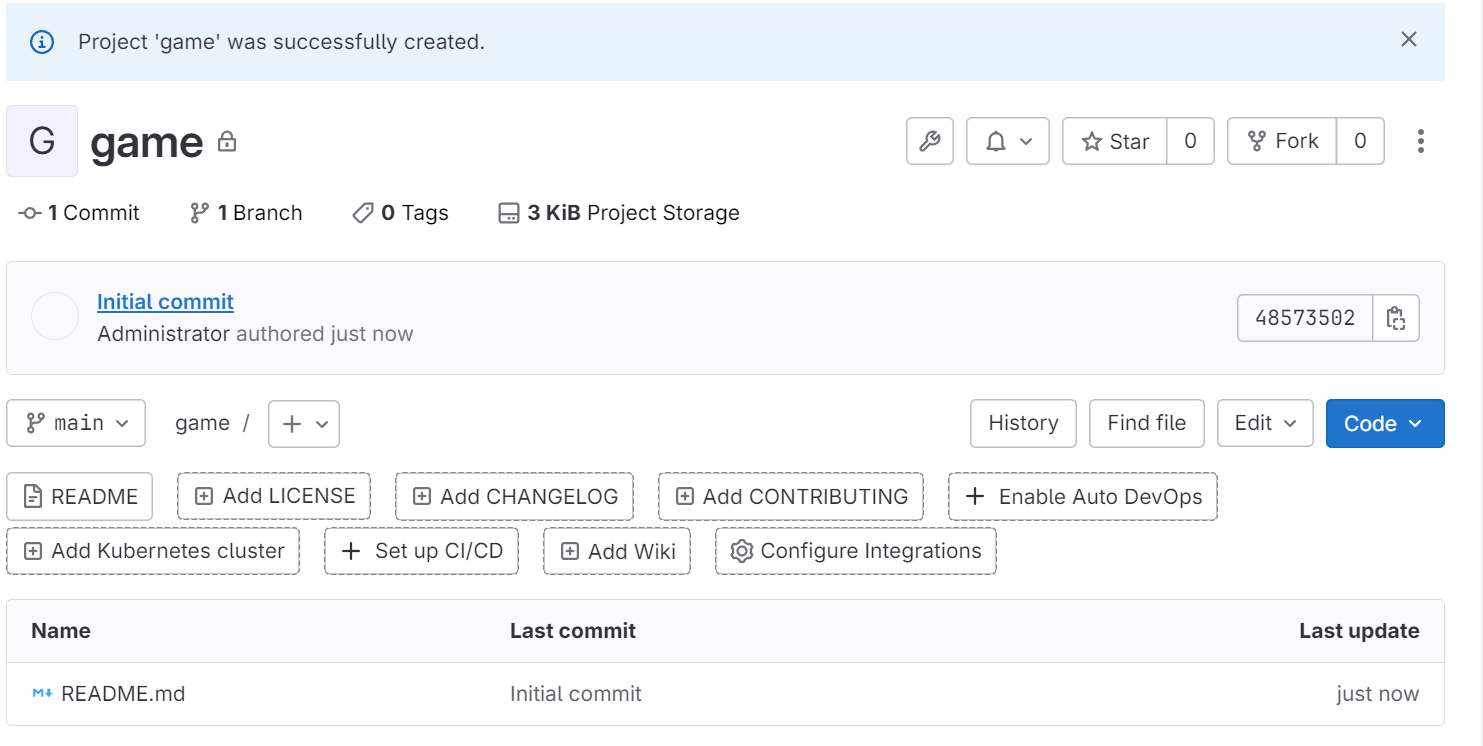

game项目创建成功

3.2 创建 ansible 项目（属于 ops 组）​

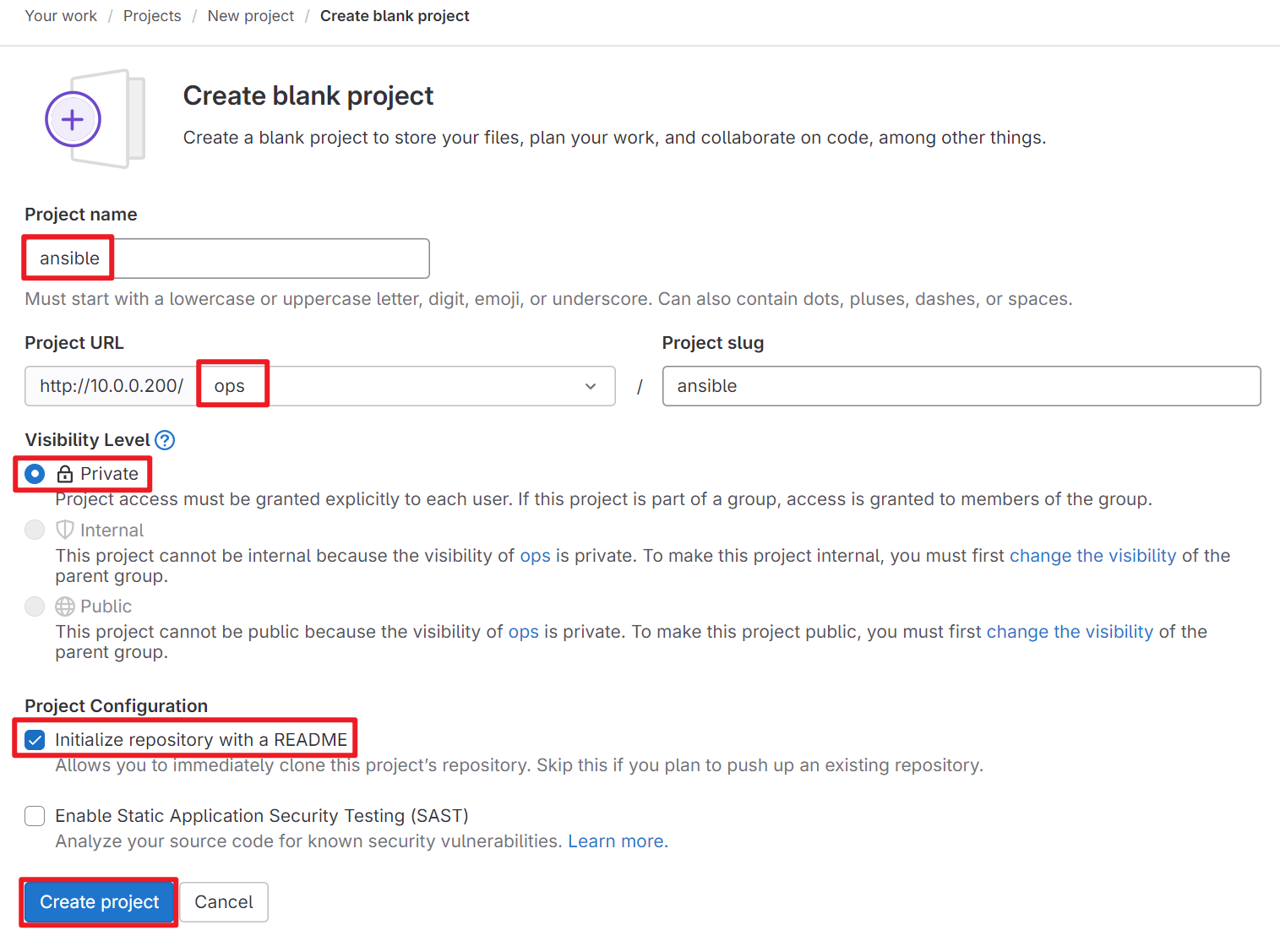

创建ansible项目

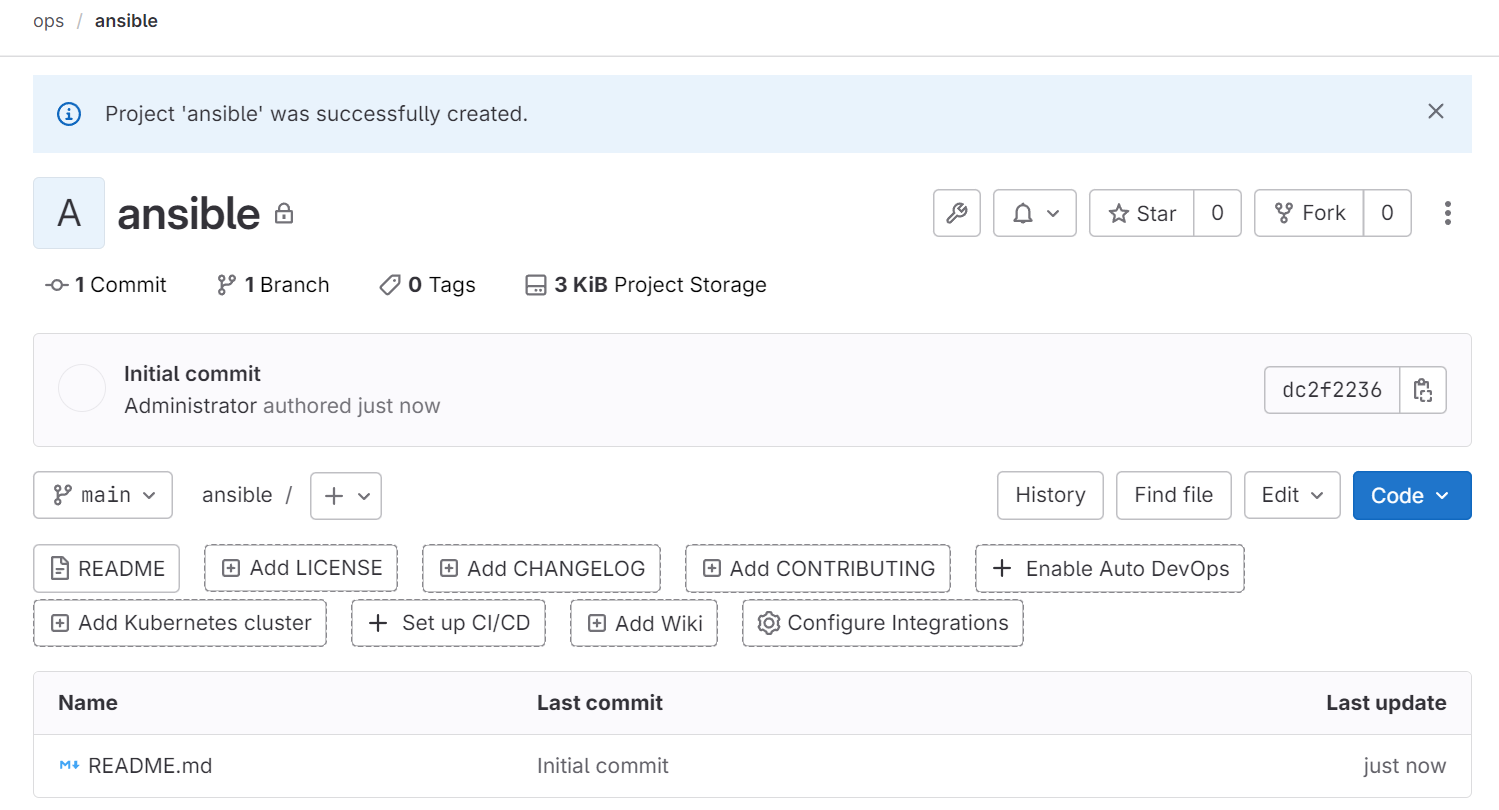

ansible项目创建成功

4. 创建用户​

4.1 创建 cto 用户​

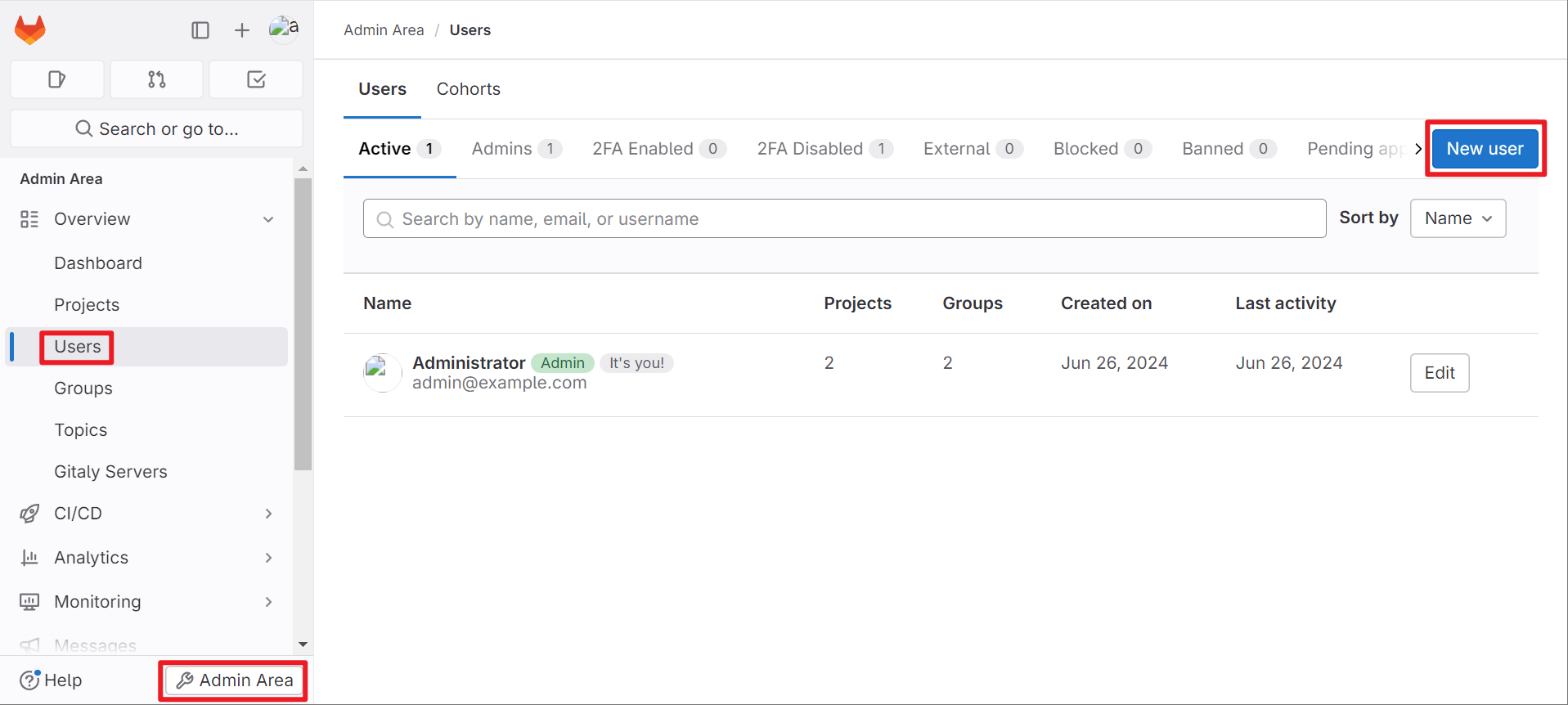

创建用户按钮

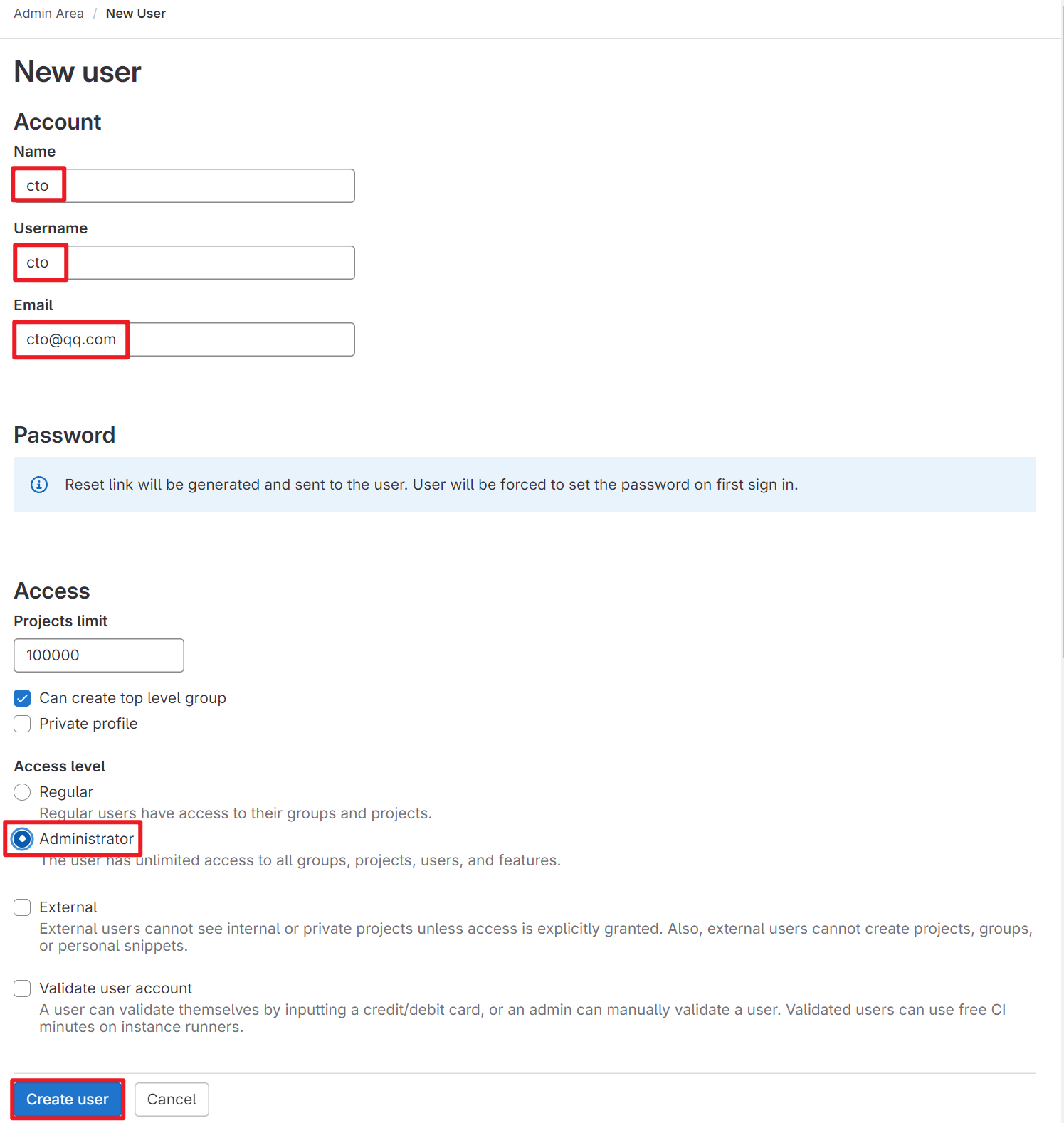

创建CTO用户

修改密码

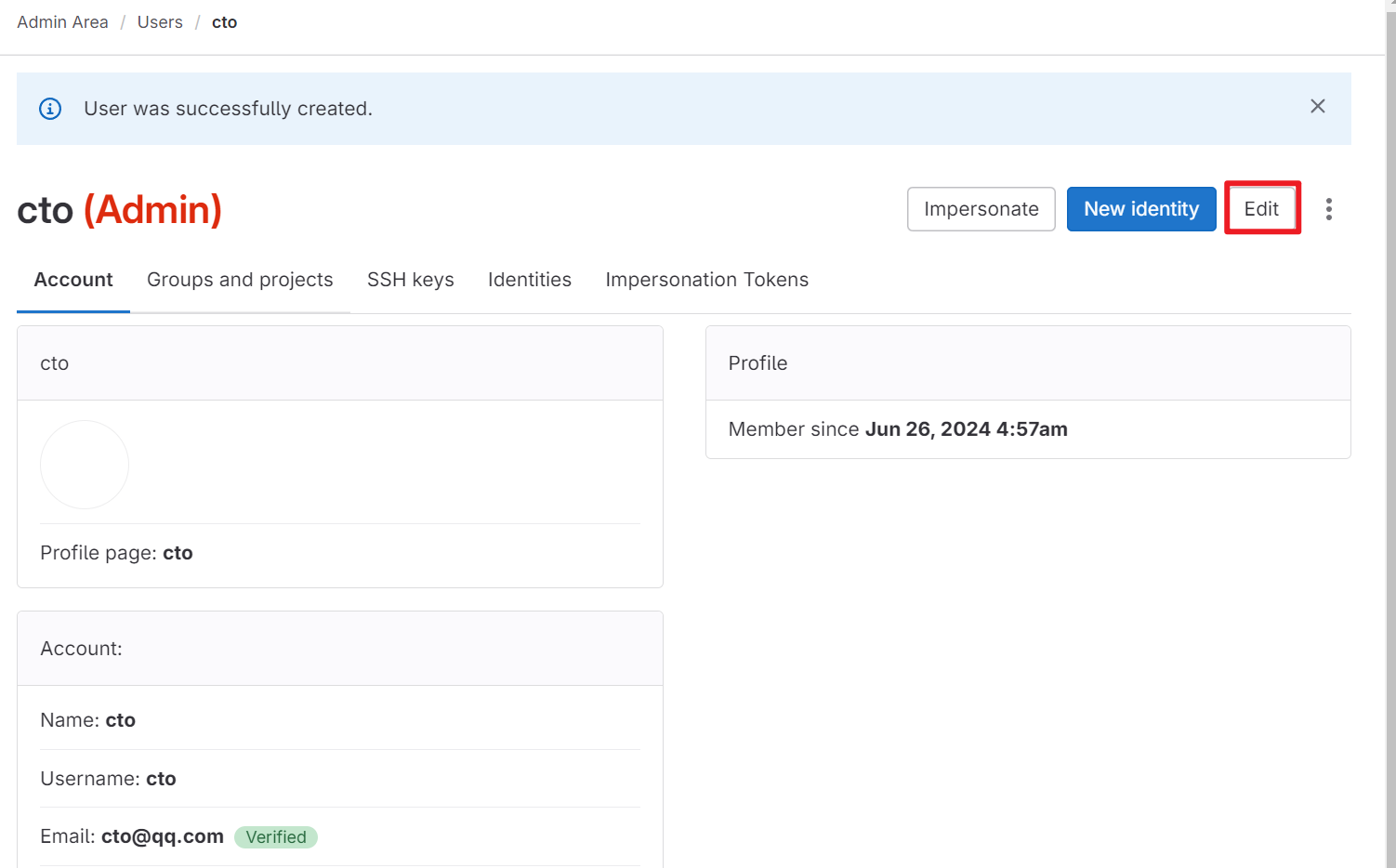

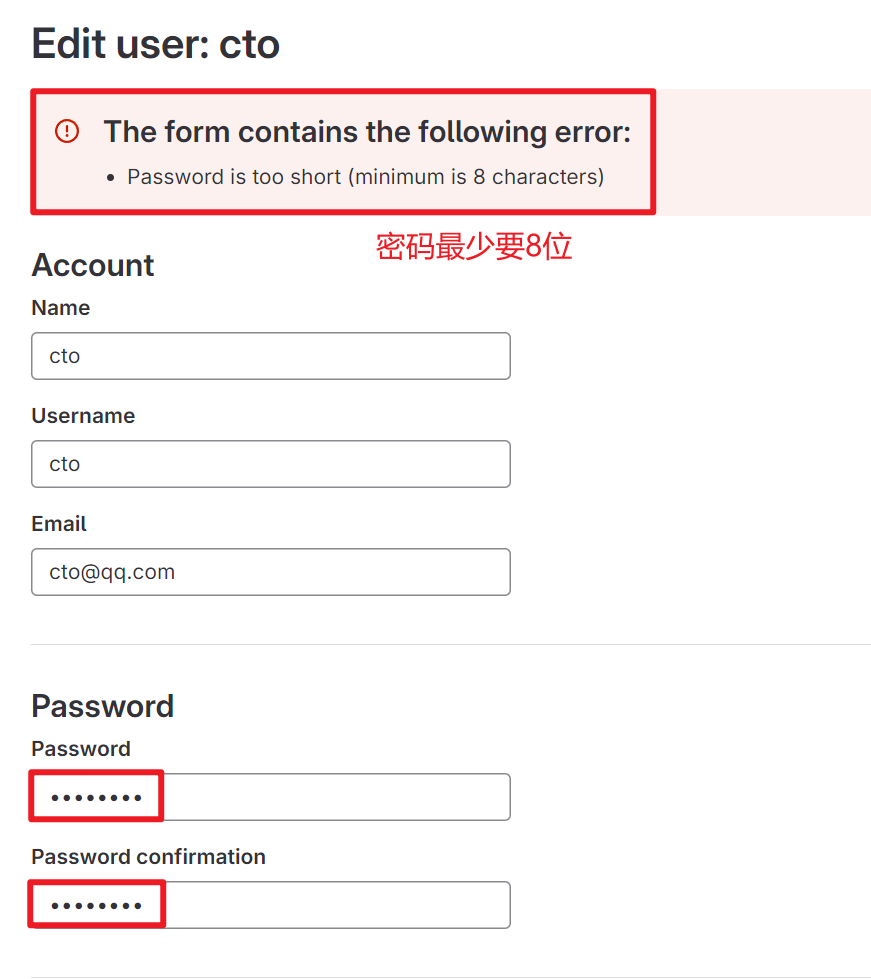

编辑用户

修改密码

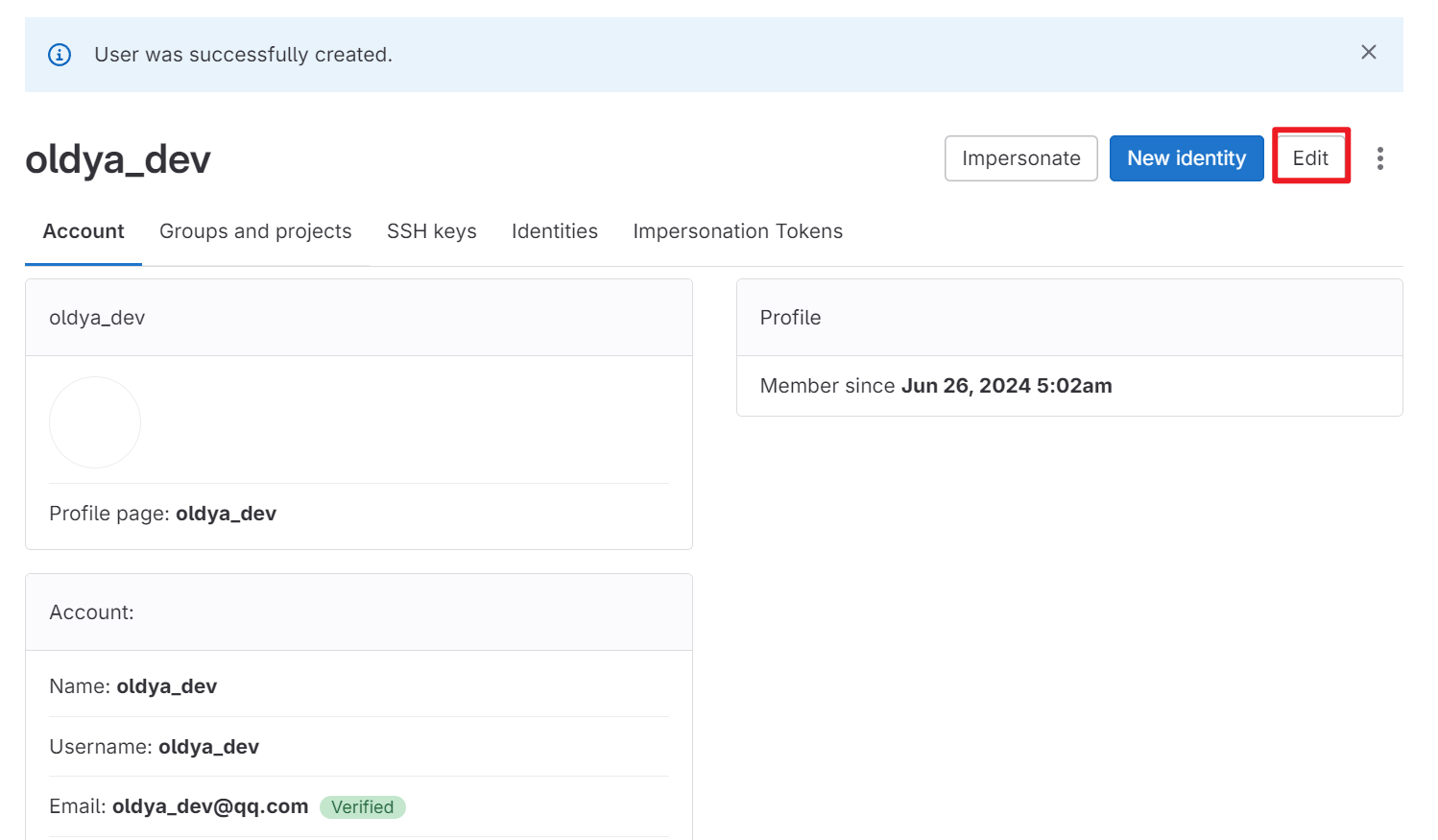

4.2 创建 oldya_dev 用户​

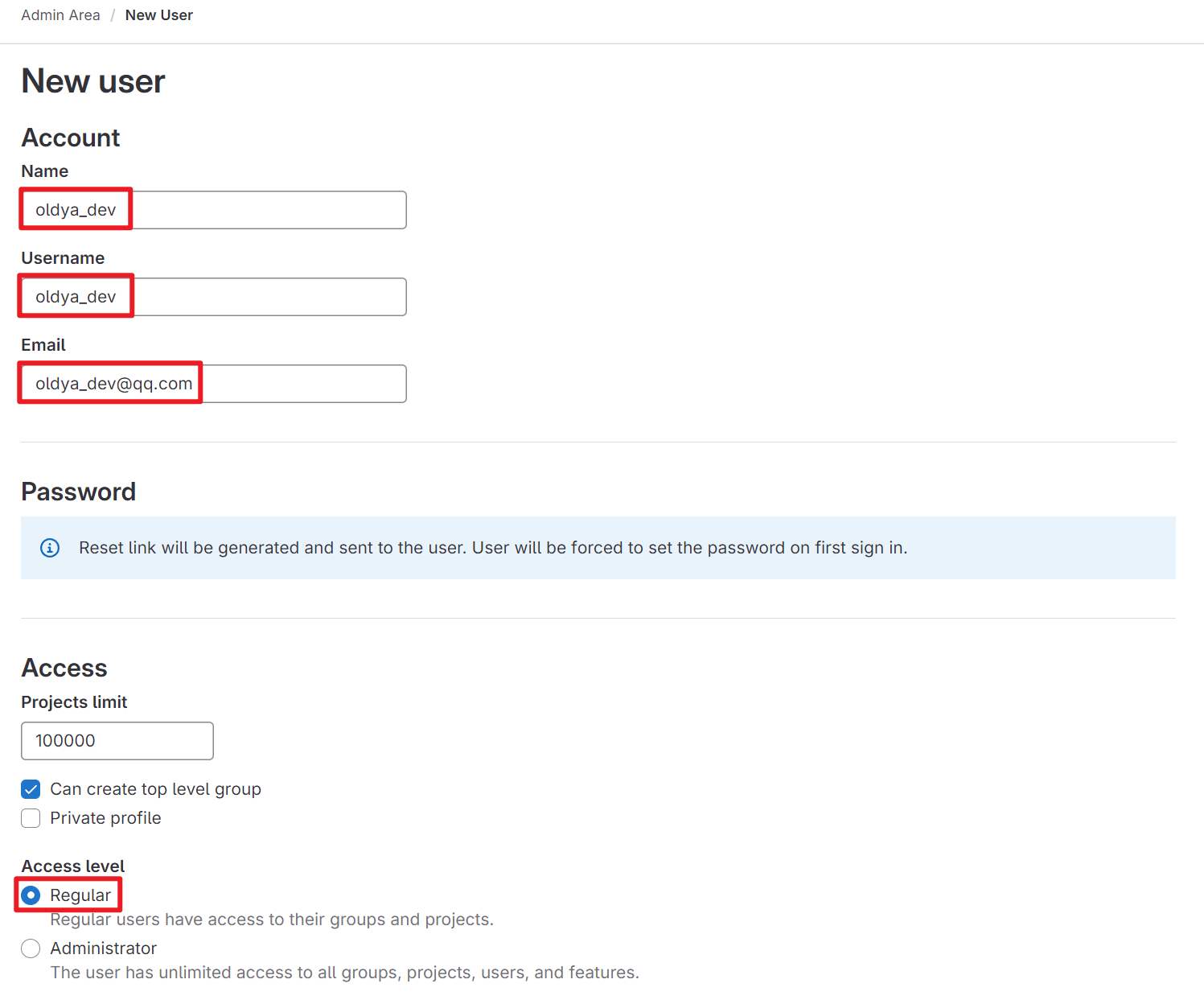

创建普通用户

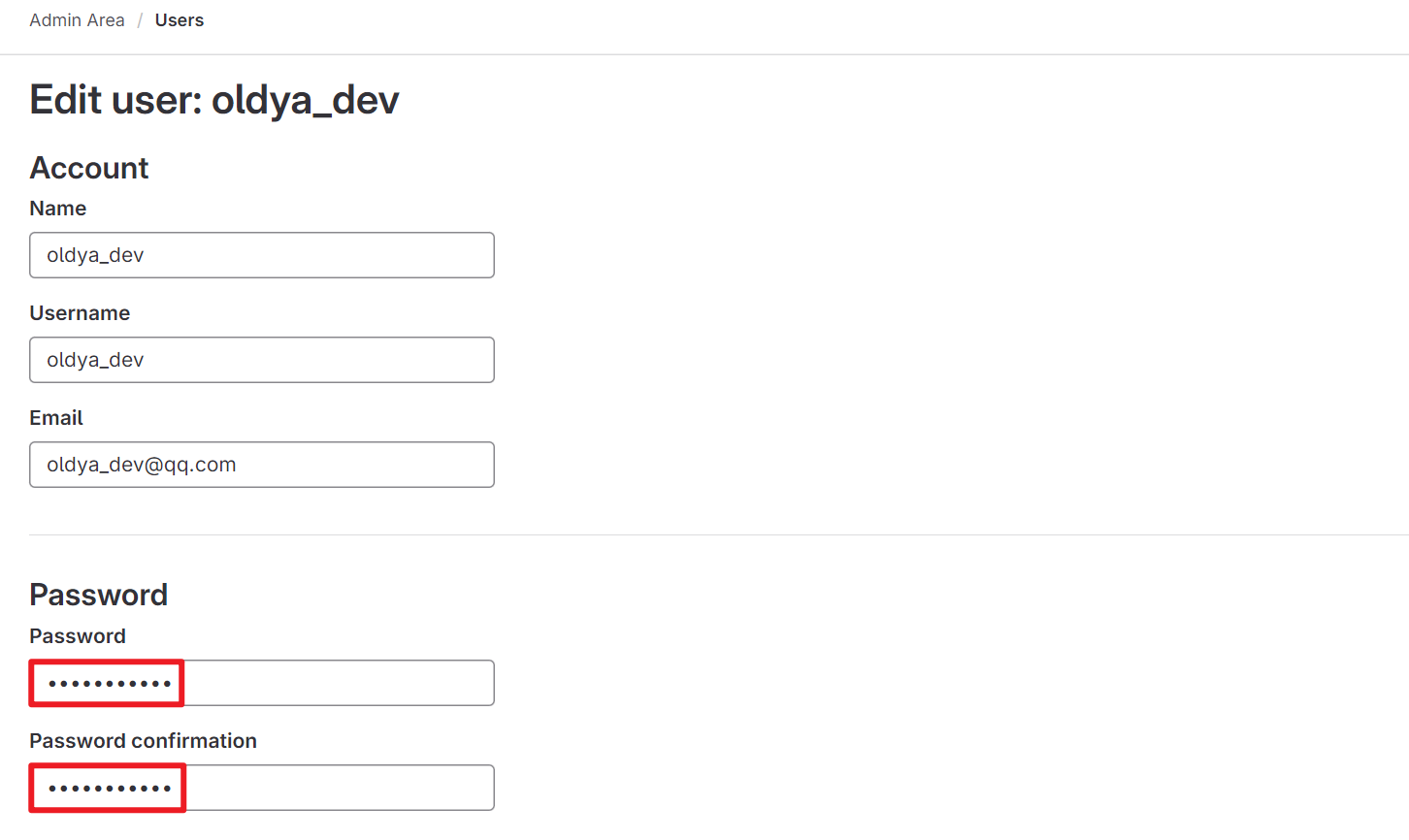

修改密码

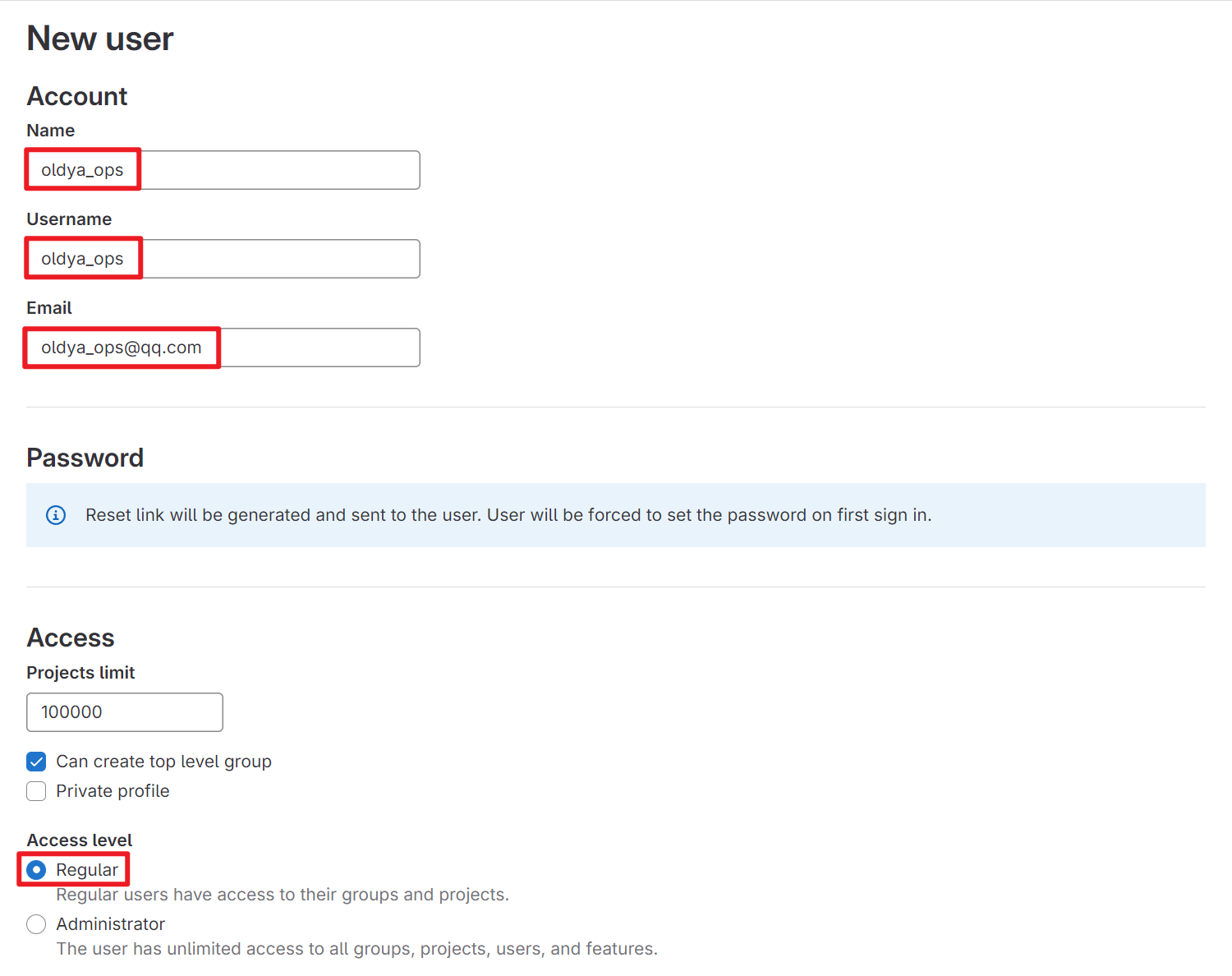

4.3 创建 oldya_ops 用户​

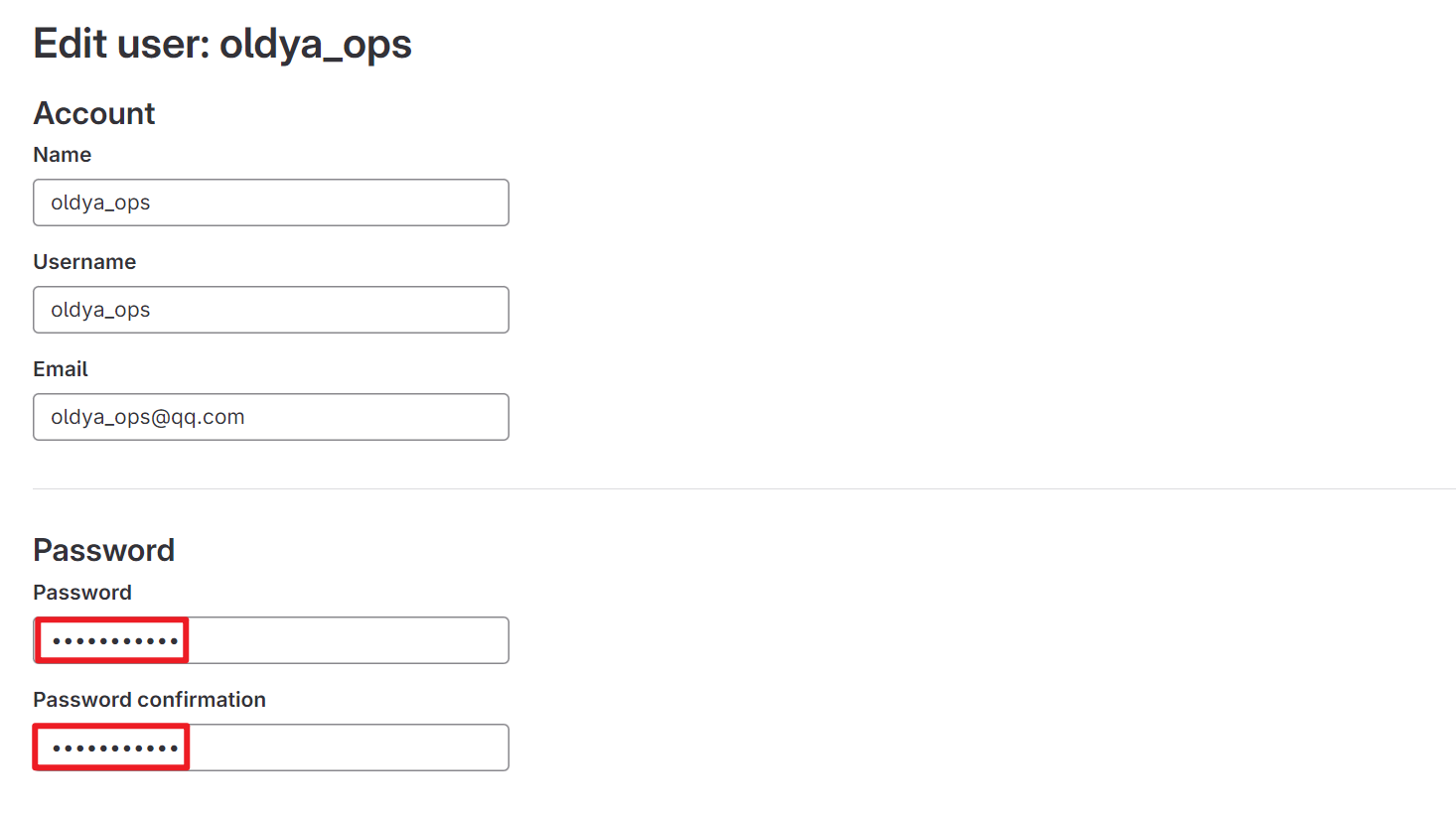

修改密码

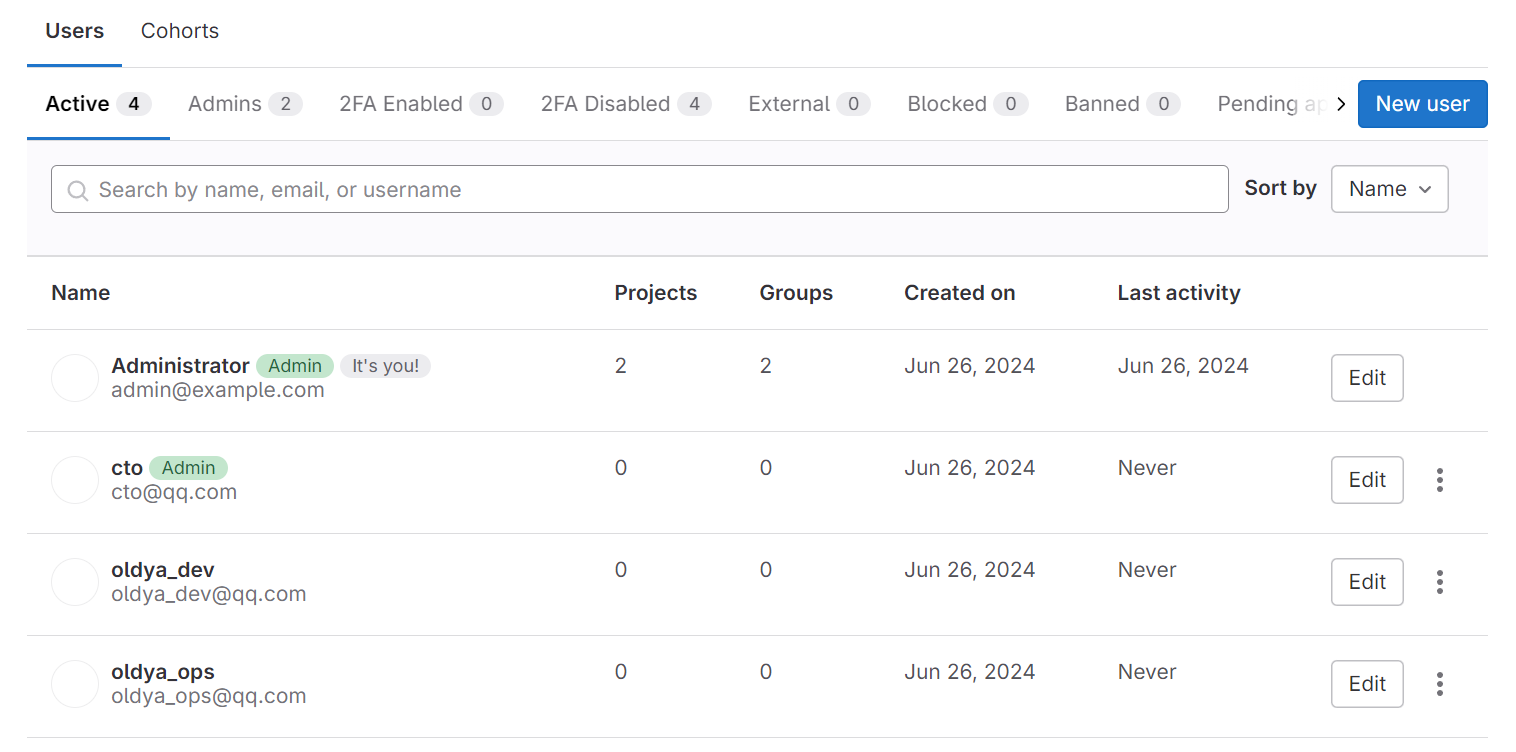

4.4 检查​


5. 授权​

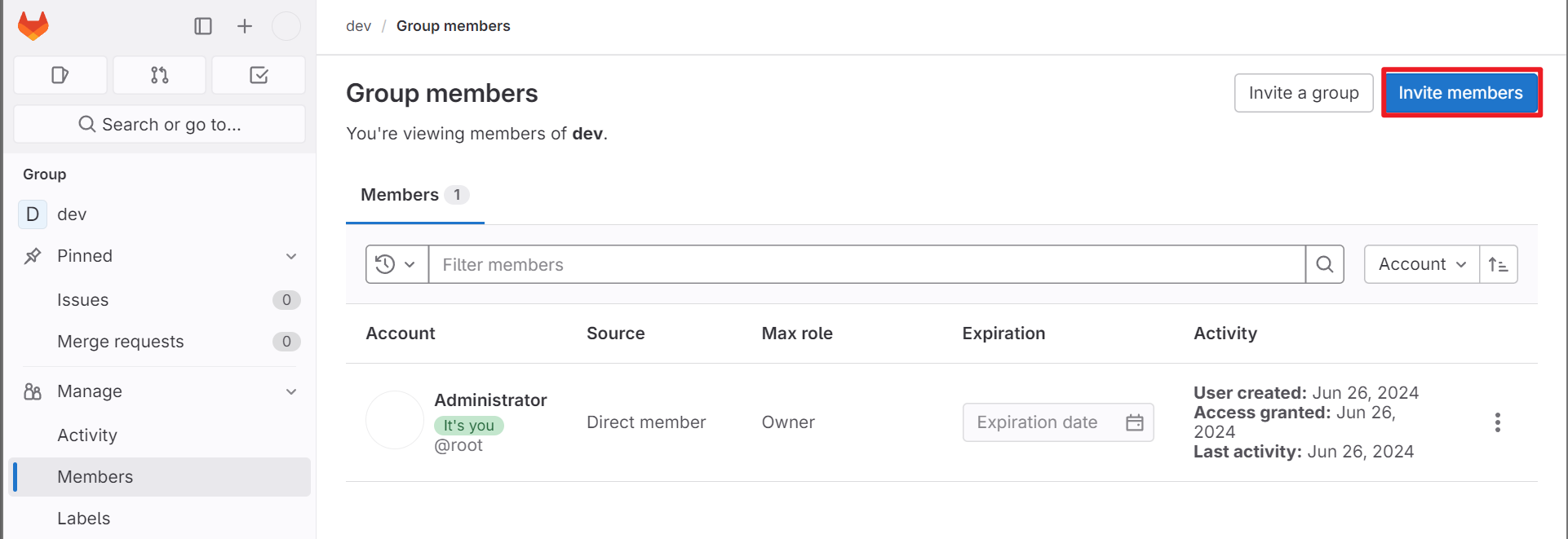

5.1 dev 组添加用户​

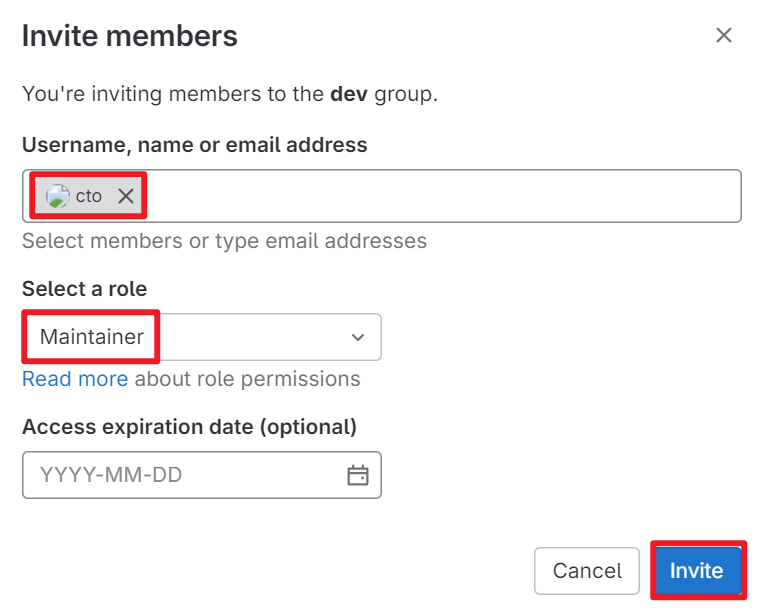

添加 cto 账户

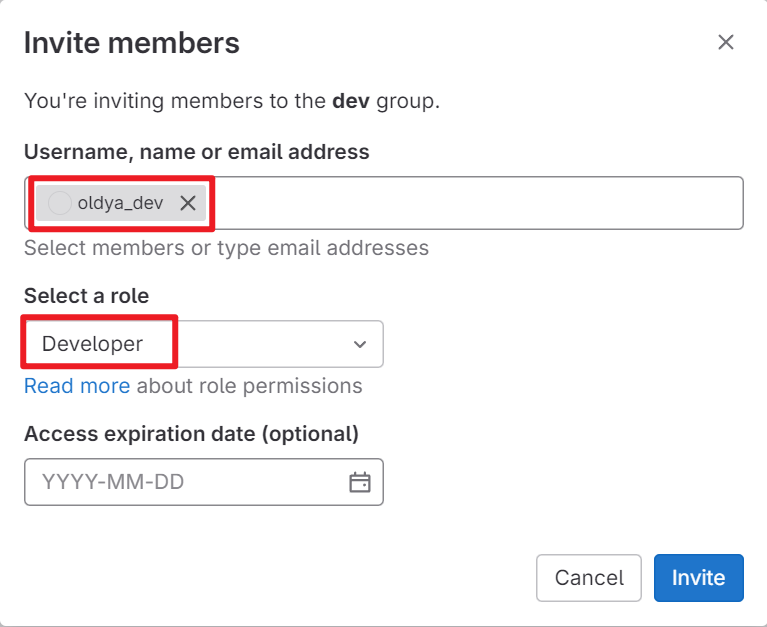

添加 oldya_dev 用户

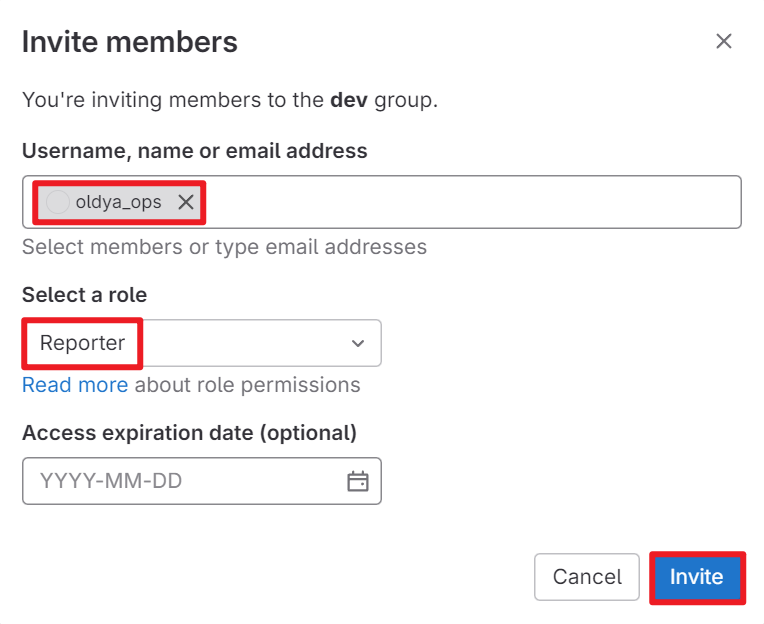

添加 oldya_ops 用户

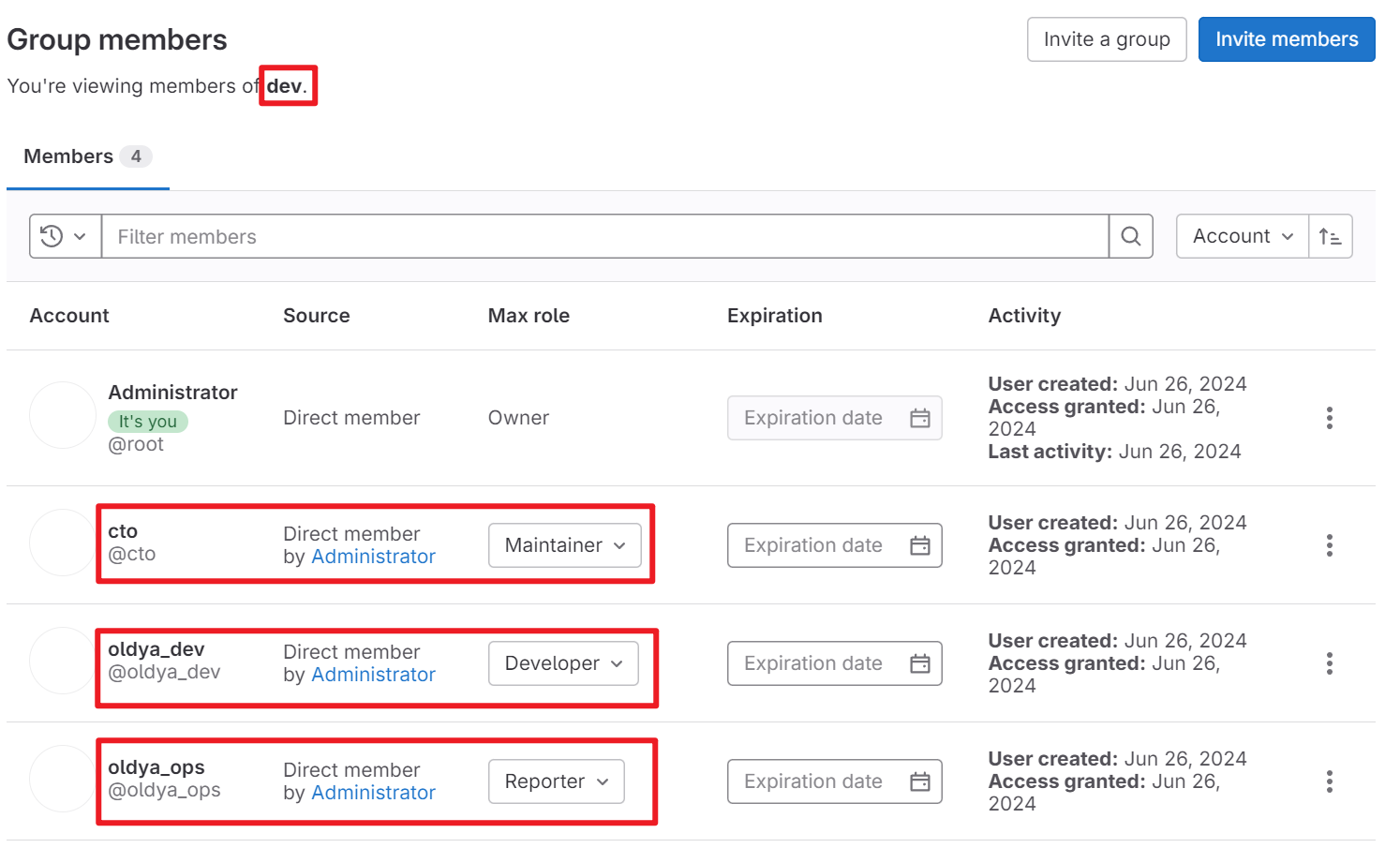

检查

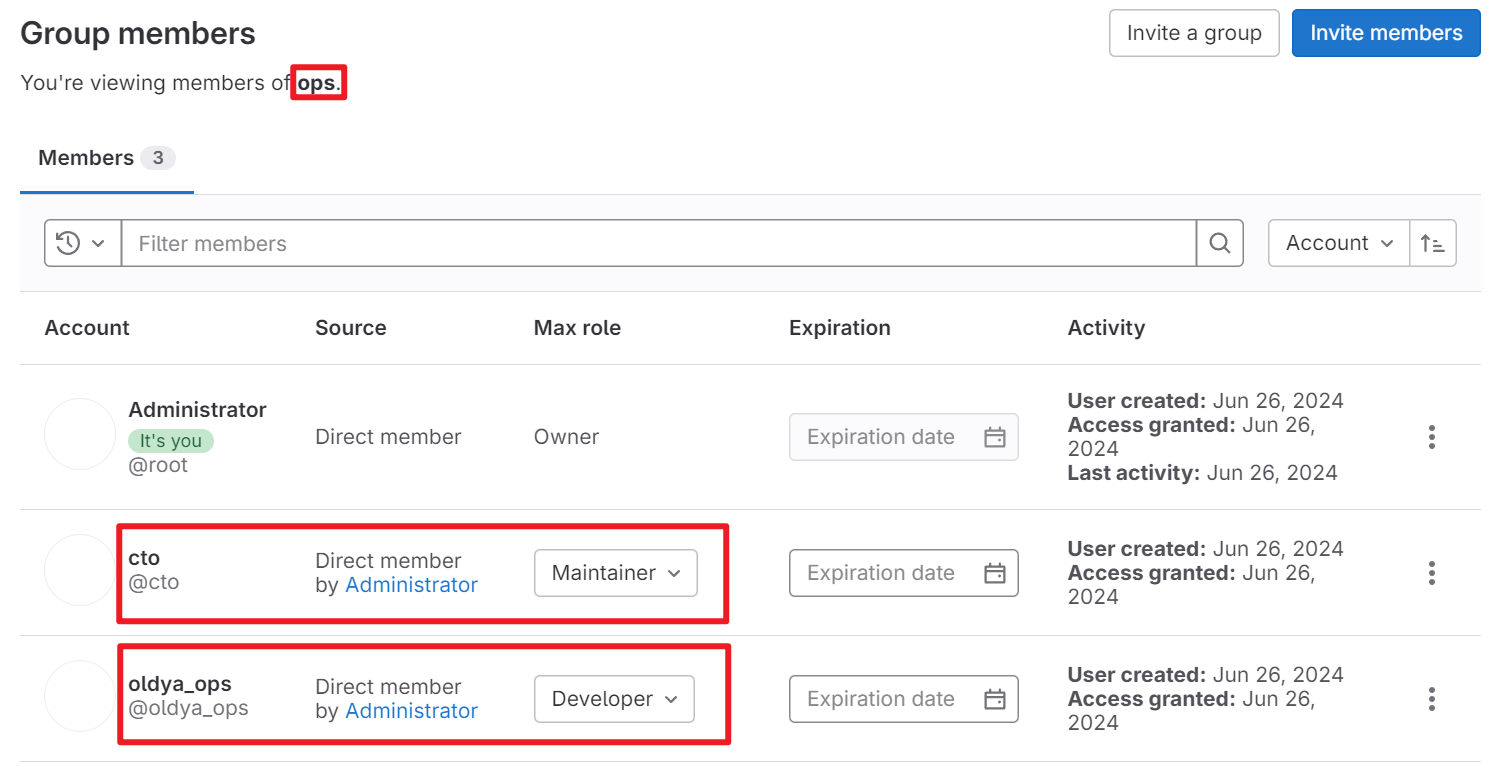

5.2 ops 组添加用户​


6. dev 用户拉取上传测试​

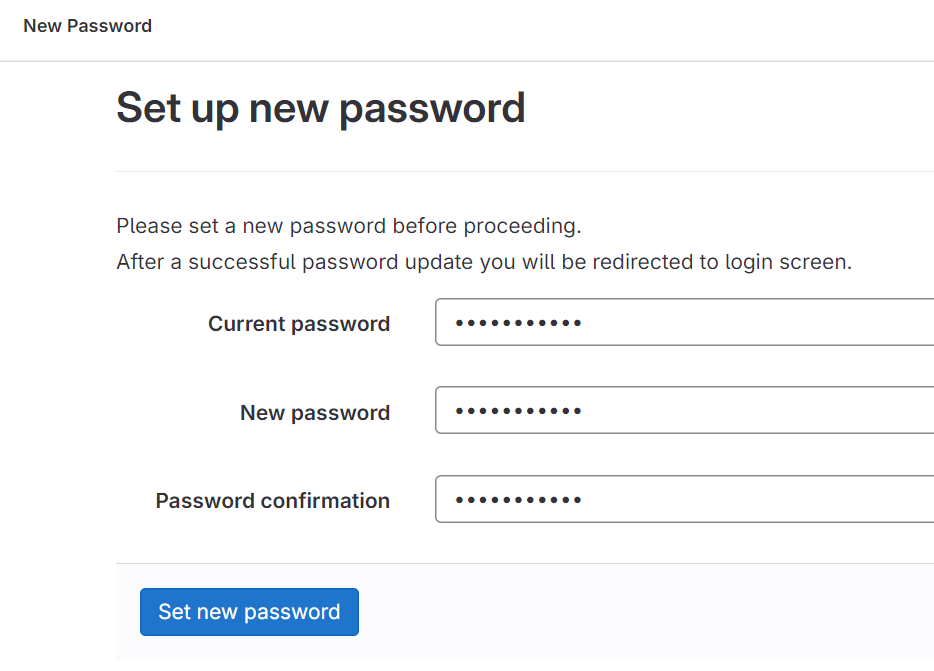

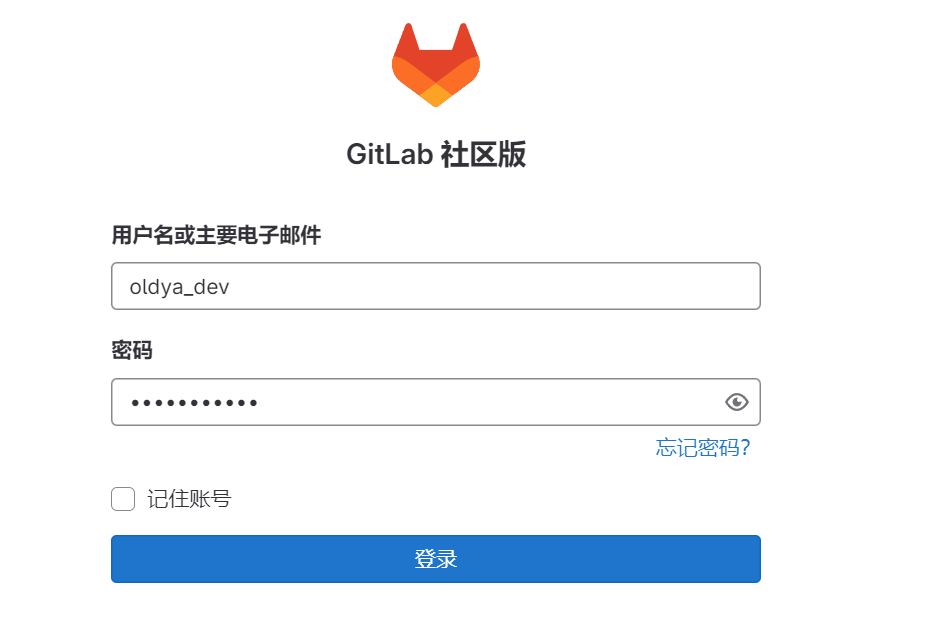

6.1 dev 用户登录并修改密码​




6.2 添加 SSH 公钥​

SSH 密钥说明

要想 dev 用户能免密克隆上传项目，需要将开发者电脑的 SSH 公钥上传到项目的仓库中。我们在 m-61 机器上创建两个普通用户来模拟开发和运维人员。

[root@m-61 ~]# useradd dev
[root@m-61 ~]# useradd ops

切换到 dev 用户并生成 SSH 密钥对：

[dev@m-61 ~]$ ssh-keygen
Generating public/private rsa key pair.
Enter file in which to save the key (/home/dev/.ssh/id_rsa):
Created directory '/home/dev/.ssh'.
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in /home/dev/.ssh/id_rsa.
Your public key has been saved in /home/dev/.ssh/id_rsa.pub.
The key fingerprint is:
SHA256:0/dFTV6uMwOkXZyv/XICFxRWEckdjLBigW6rXkgI/cM dev@m-61
The key's randomart image is:
+---[RSA 2048]----+
|        .. .o.BBX|
|  .    .  .+.++B+|
| . .  .  o..o. .=|
|  . +  o...  ..o.|
|   . E. S . . =+.|
|    . o. . ...o=.|
|     ...     o. .|
|     ..       o o|
|    ..         + |
+----[SHA256]-----+
[dev@m-61 ~]$

复制公钥：

[dev@m-61 ~]$ cat .ssh/id_rsa.pub
ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABAQDAuEIKkorb5uBuUpGuwRMGDLG9sEnLCnMHQkeKzXqCNfmBgboPulxnA9t3SAZunetT86F7lSg2YuzFO5BzTnw/C5D85+jBhmEJFpwv0tK3AhDQVm8U9AL54pWyjT2Hzfvrj5Vr+gMa6hdIApmCfraOvnwlucTzf/v5ry872NStPiuT7H26nikM816L9lEG2LyoU8ctX2JP/o3Py0ES2mA+qd6xODyyMmb+WVtuKrjEx21hMsX5E/O3wXwKV9kWccHcbwIjCwEkfrFiUPHX3M+BQYb7pZKf0SWyr1YZDLSmERYSVEDrc8drflymfuso2AqLpkfRtjEjRIRP4nyyzgqN dev@m-61

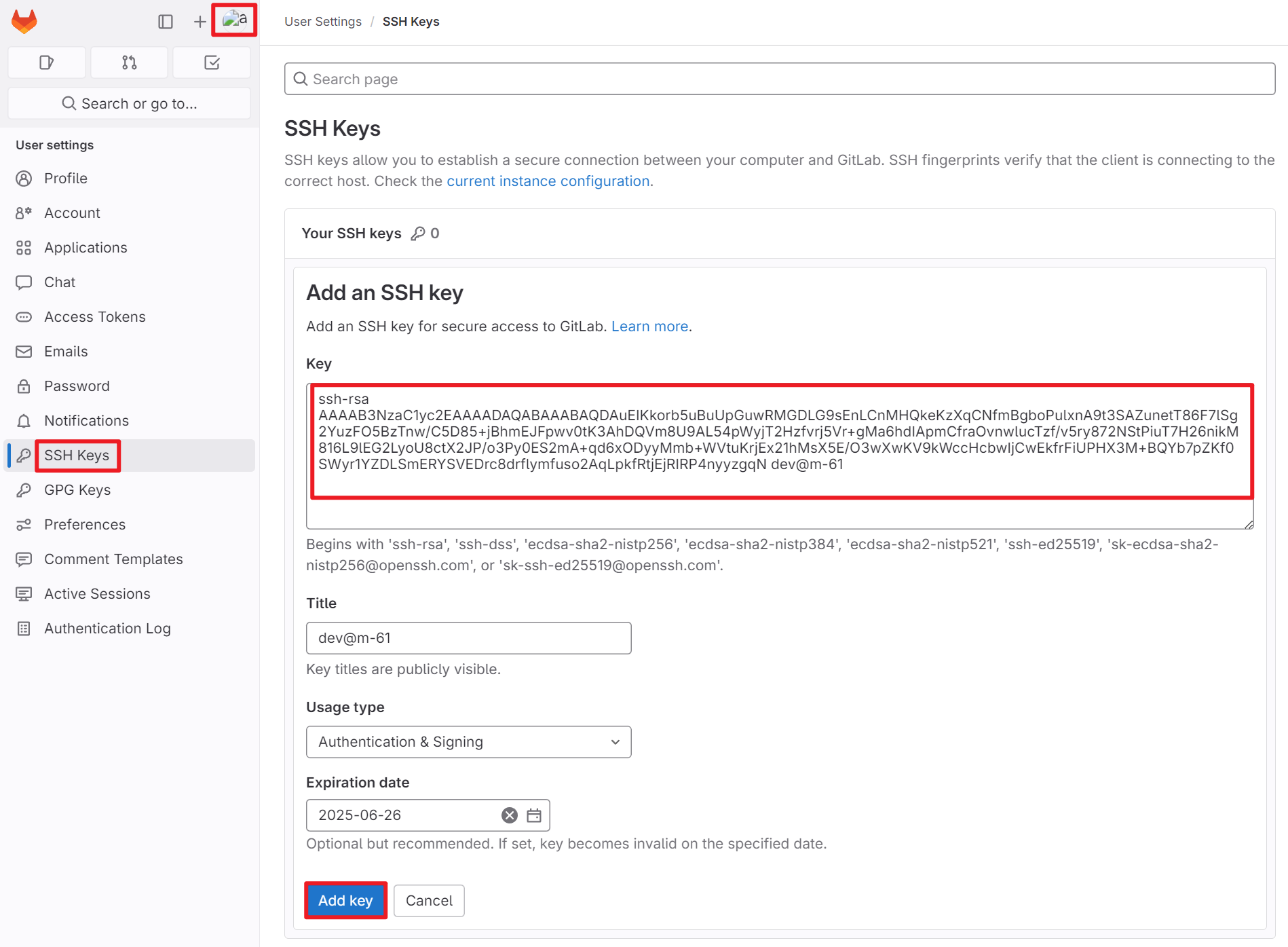

将公钥信息添加到项目里


6.3 克隆项目​

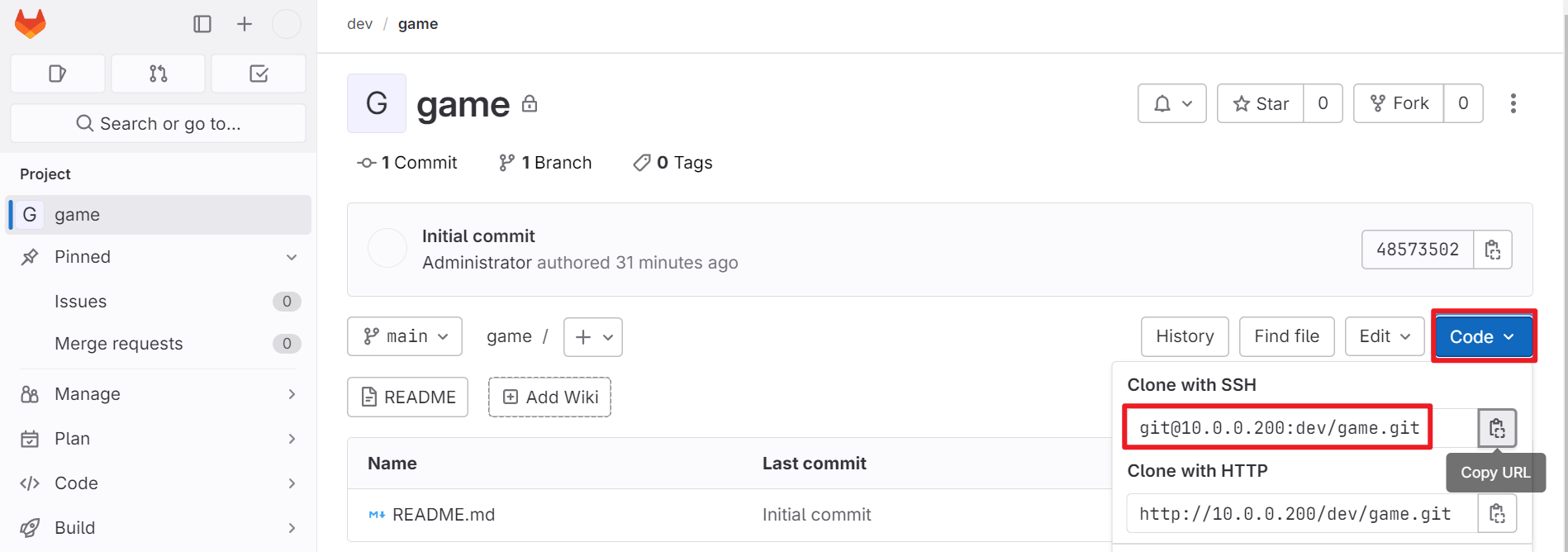

Git 克隆命令

[dev@m-61 ~/game]$ git config --global user.email "dev@qq.com"
[dev@m-61 ~/game]$ git config --global user.name "dev"
[dev@m-61 ~]$ git clone git@10.0.0.200:dev/game.git
Cloning into 'game'...
The authenticity of host '10.0.0.200 (10.0.0.200)' can't be established.
ECDSA key fingerprint is SHA256:4bnum+vhLl+fHDM+WUxdjAs9Jf48mKwMHvpxkKT+FEY.
ECDSA key fingerprint is MD5:8b:cc:8c:66:84:af:09:b7:5c:67:40:17:69:50:3a:73.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added '10.0.0.200' (ECDSA) to the list of known hosts.
remote: Enumerating objects: 3, done.
remote: Counting objects: 100% (3/3), done.
remote: Compressing objects: 100% (2/2), done.
remote: Total 3 (delta 0), reused 0 (delta 0), pack-reused 0
Receiving objects: 100% (3/3), done.

6.4 创建新分支并修改代码提交​

[root@web-7 ~]# cd game/
#创建新分支
[dev@m-61 ~]$ cd game/
[dev@m-61 ~/game]$ git checkout -b dev
Switched to a new branch 'dev'

#创建首页文件
[dev@m-61 ~/game]$ echo v1 > index.html

#提交修改的文件到暂存区
[dev@m-61 ~/game]$ git add .

#提交暂存区记录到本地仓库
[dev@m-61 ~/game]$ git commit -m "add v1"
[dev 4baad00] add v1
 1 file changed, 1 insertion(+)
 create mode 100644 index.html

 #推送到远程仓库的分支
[dev@m-61 ~/game]$ git push origin dev
Counting objects: 4, done.
Compressing objects: 100% (2/2), done.
Writing objects: 100% (3/3), 263 bytes | 0 bytes/s, done.
Total 3 (delta 0), reused 0 (delta 0)
remote:
remote: To create a merge request for dev, visit:
remote:   http://10.0.0.200/dev/game/-/merge_requests/new?merge_request%5Bsource_branch%5D=dev
remote:
To git@10.0.0.200:dev/game.git
 * [new branch]      dev -> dev

6.5 GitLab 创建合并请求​

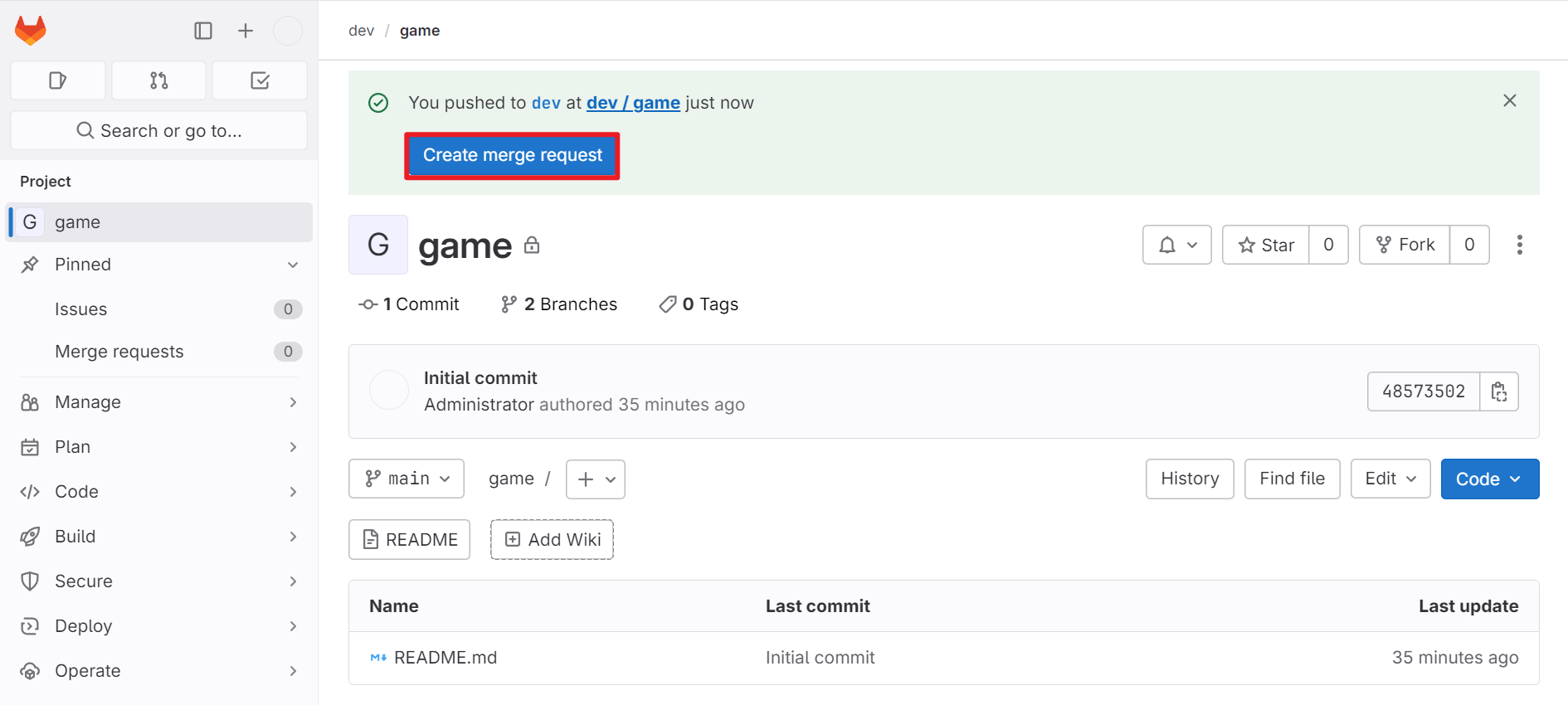

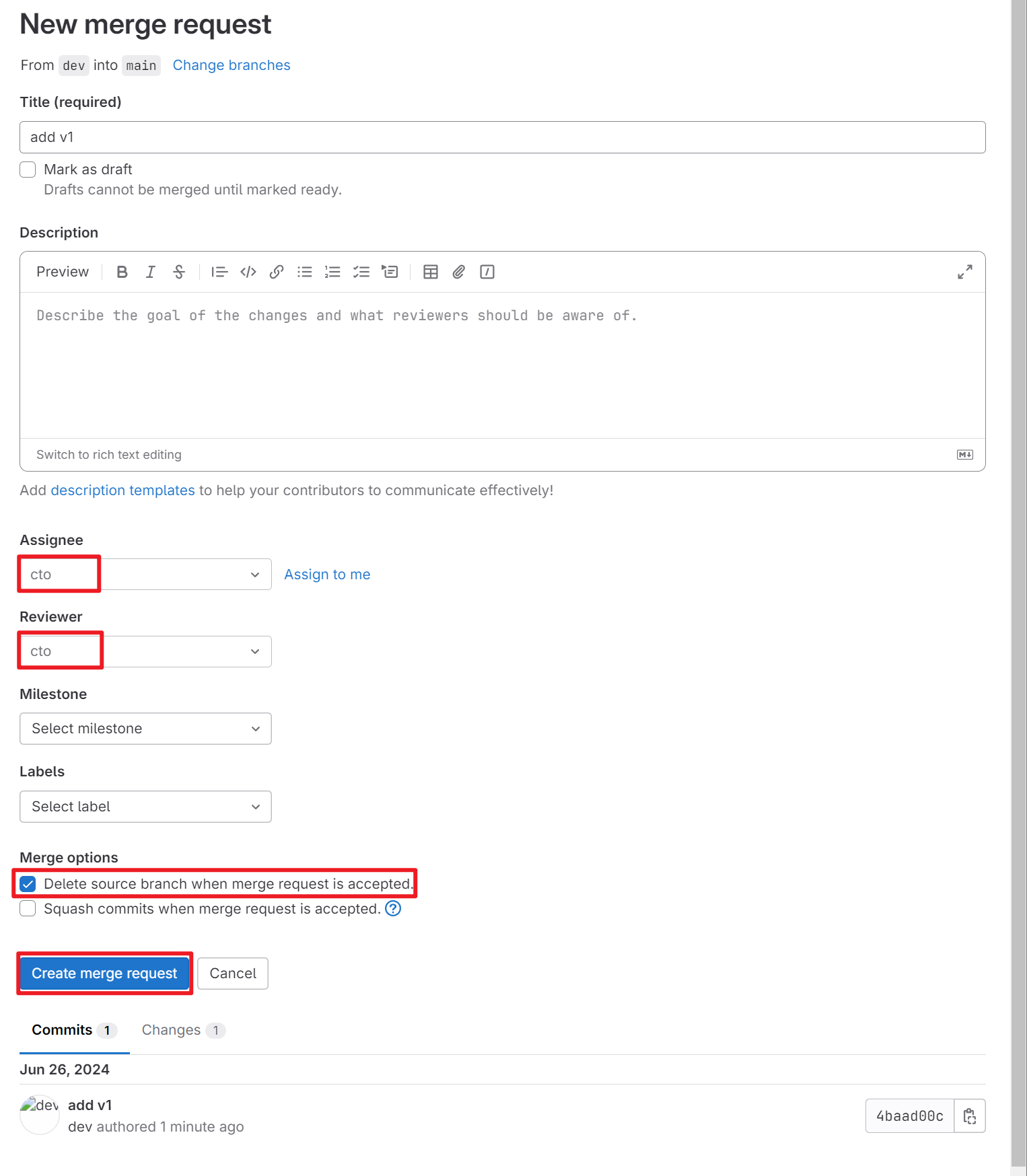

创建合并请求

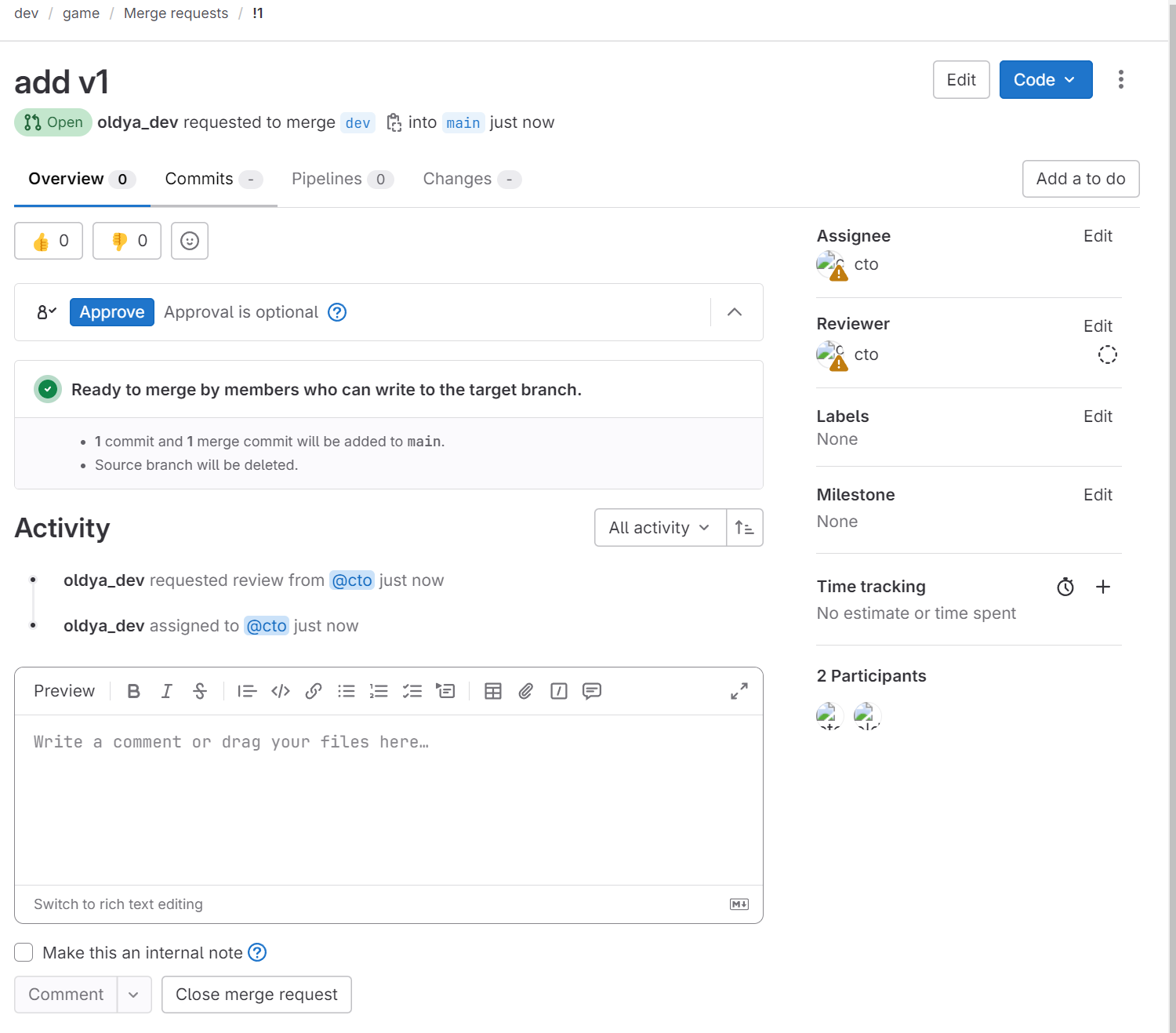

合并请求详情


6.6 cto 用户合并分支​

使用 cto 用户登录，然后将分支合并到 master 主干

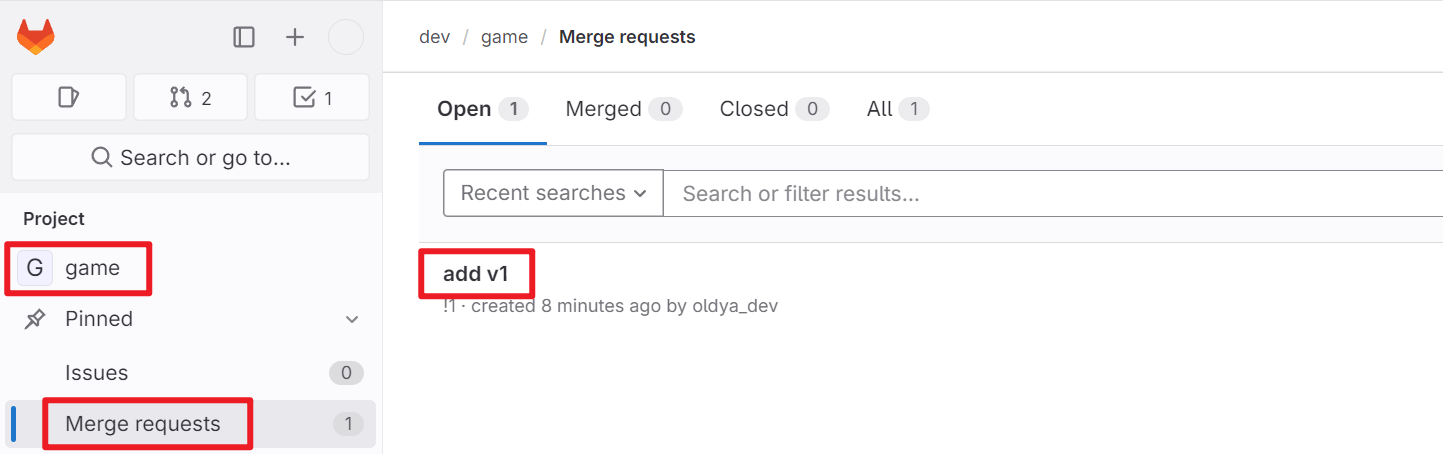

查看合并请求

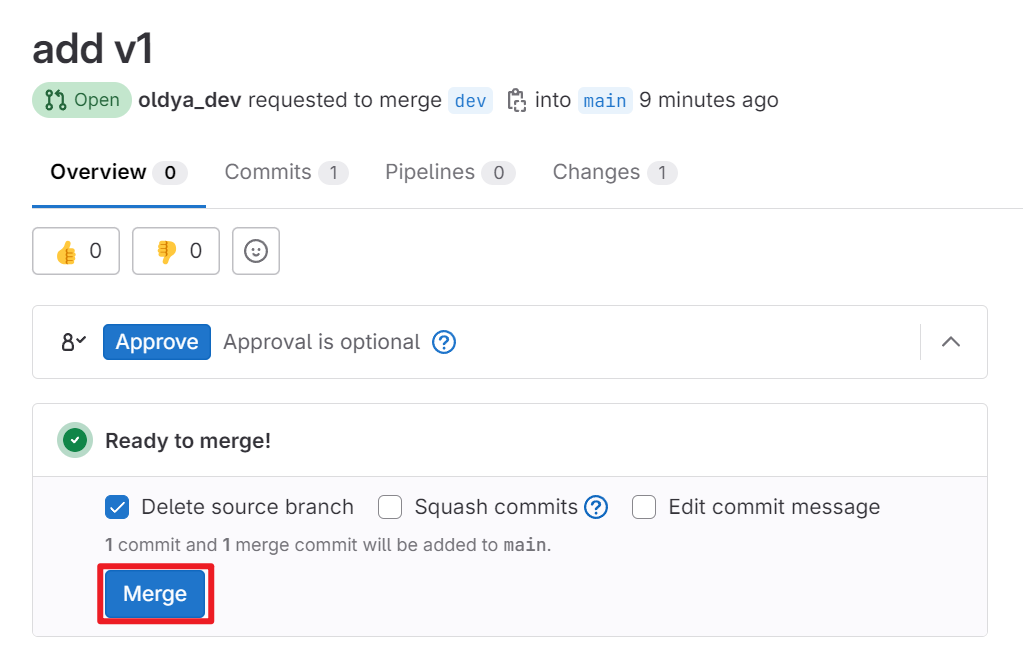

合并操作

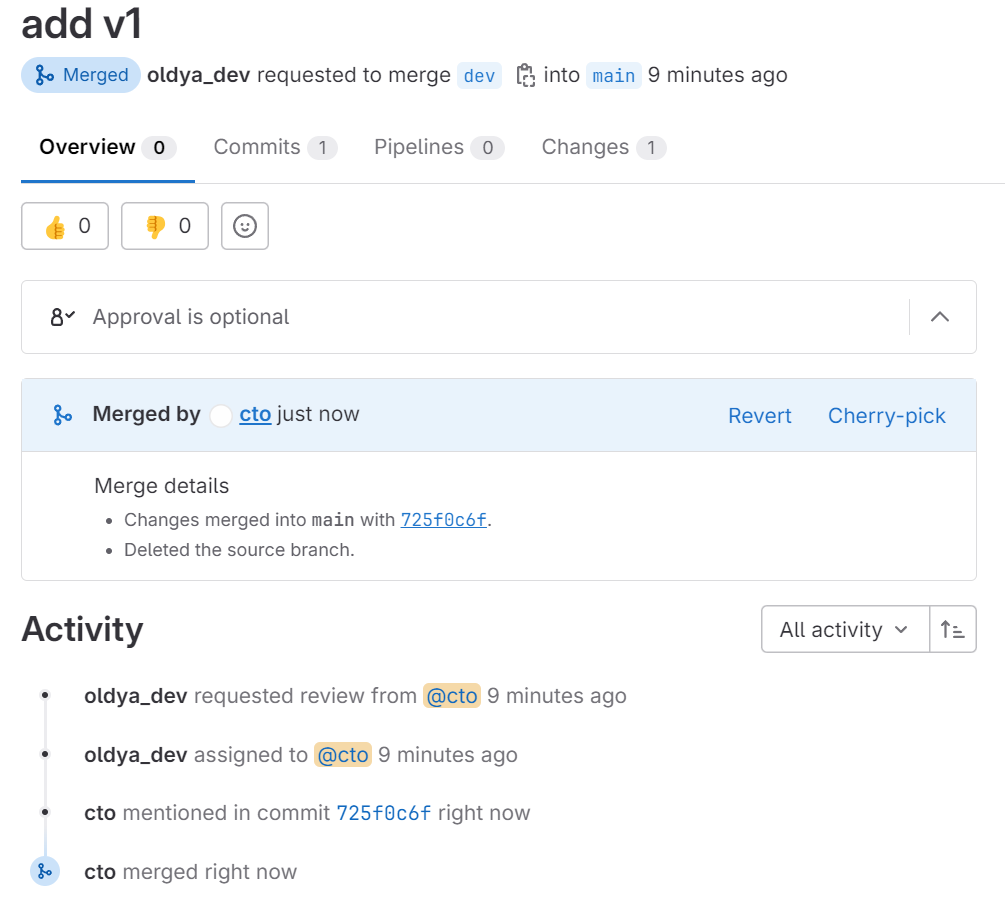

合并完成

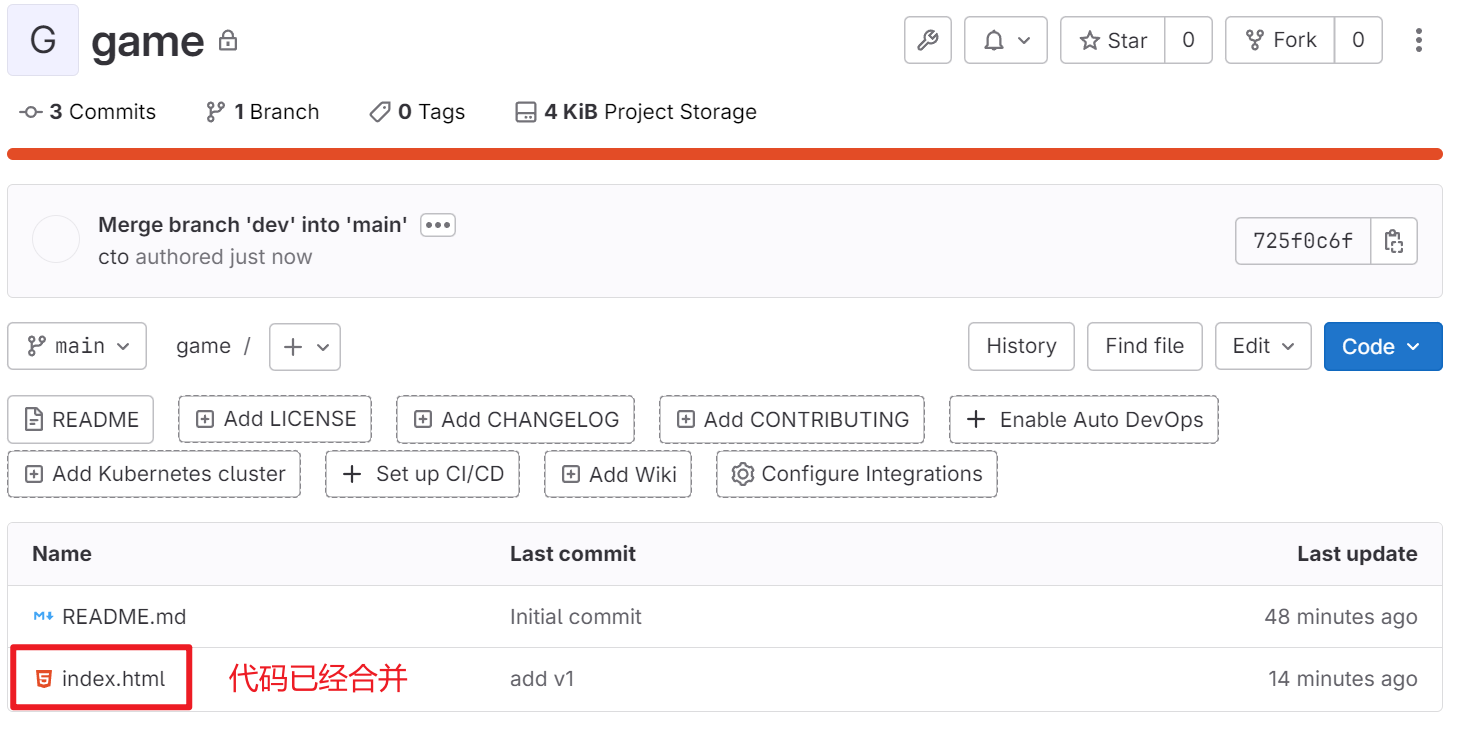

6.7 检查合并结果​


7. ops 用户拉取上传测试​

7.1 oldya_ops 用户创建 SSH 密钥对​

#切换用户
[root@m-61 ~]# su - ops

#创建密钥对
[ops@m-61 ~]$ ssh-keygen
Generating public/private rsa key pair.
Enter file in which to save the key (/home/ops/.ssh/id_rsa):
Created directory '/home/ops/.ssh'.
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in /home/ops/.ssh/id_rsa.
Your public key has been saved in /home/ops/.ssh/id_rsa.pub.
The key fingerprint is:
SHA256:UjH19Fr9xEhxIQoG9JhAPwRvXNIYOfwEm8QxkvOec7E ops@m-61
The key's randomart image is:
+---[RSA 2048]----+
|    .=*@@=. ..ooo|
|     oO*@=.o.o.= |
|      o@=. .. + +|
|      .o.o   o ..|
|      o S o .   .|
|       = E       |
|        o        |
|                 |
|                 |
+----[SHA256]-----+

#查看公钥
[ops@m-61 ~]$ cat .ssh/id_rsa.pub
ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABAQDEWJpC3ke3ZXEmGwc693DvnLDlqnZI/fBIuuZHATjzkwvZ0r652CmvgZegndWII30DW7lsdbn+2+zBeSGBE+M9nQFLUCPb3eIPYXjtny+2OIuc68mXd4wjp7wYNBFzhG+1yHg1TZkqelr1e1cIODgzHu/MhI67D4elEwP9W6F+JBDjE+C2WnMo+dC+Wb9e0jPQL+T/0IPx+PTtOCV2ACRQhmUE4gcp7yqmdrITcKMMjoidnfcCyUop3FEb+cVUL+kdRYEiFXT48Xtfpk+TobqJ/+gdnR+eynKhN/+8eEqdDdeofKXCGcFjtbZgbeqgrDY9gScsoWGzt+Zb5Pdasc/j ops@m-61

7.2 添加公钥信息​

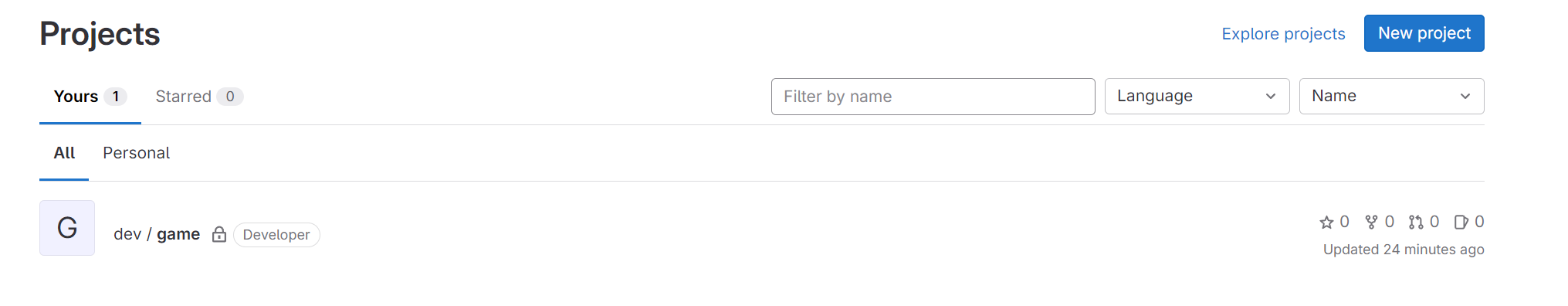

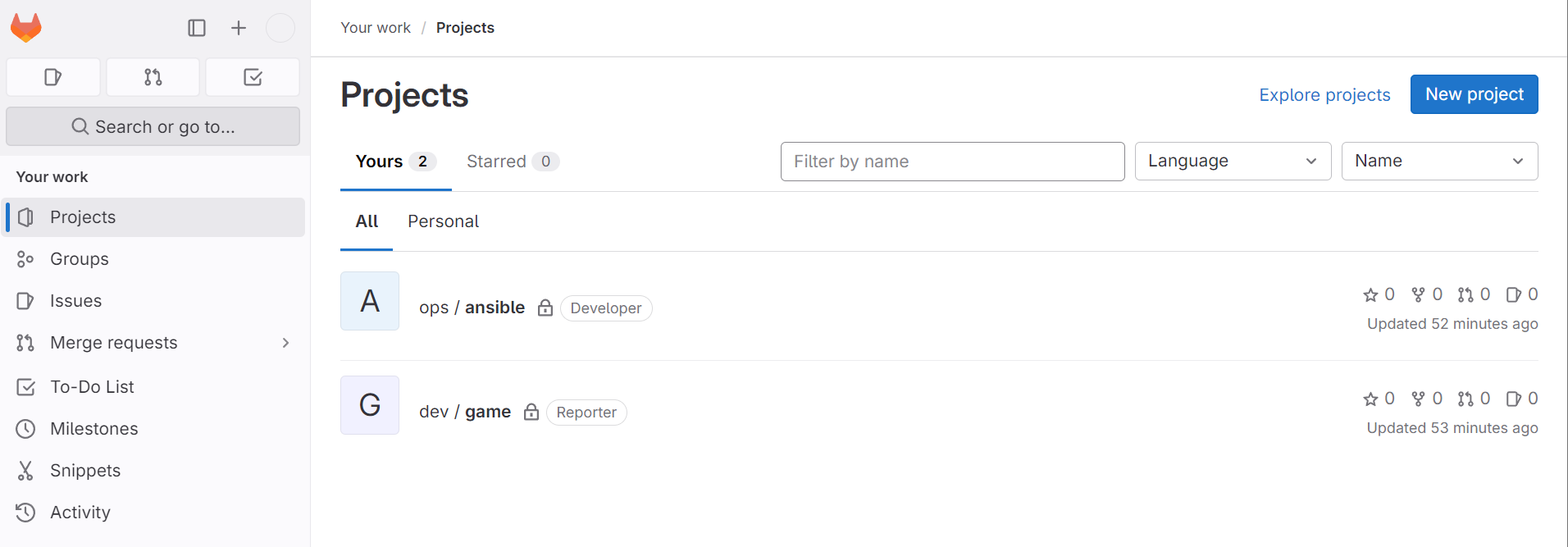

ops角色看到的项目

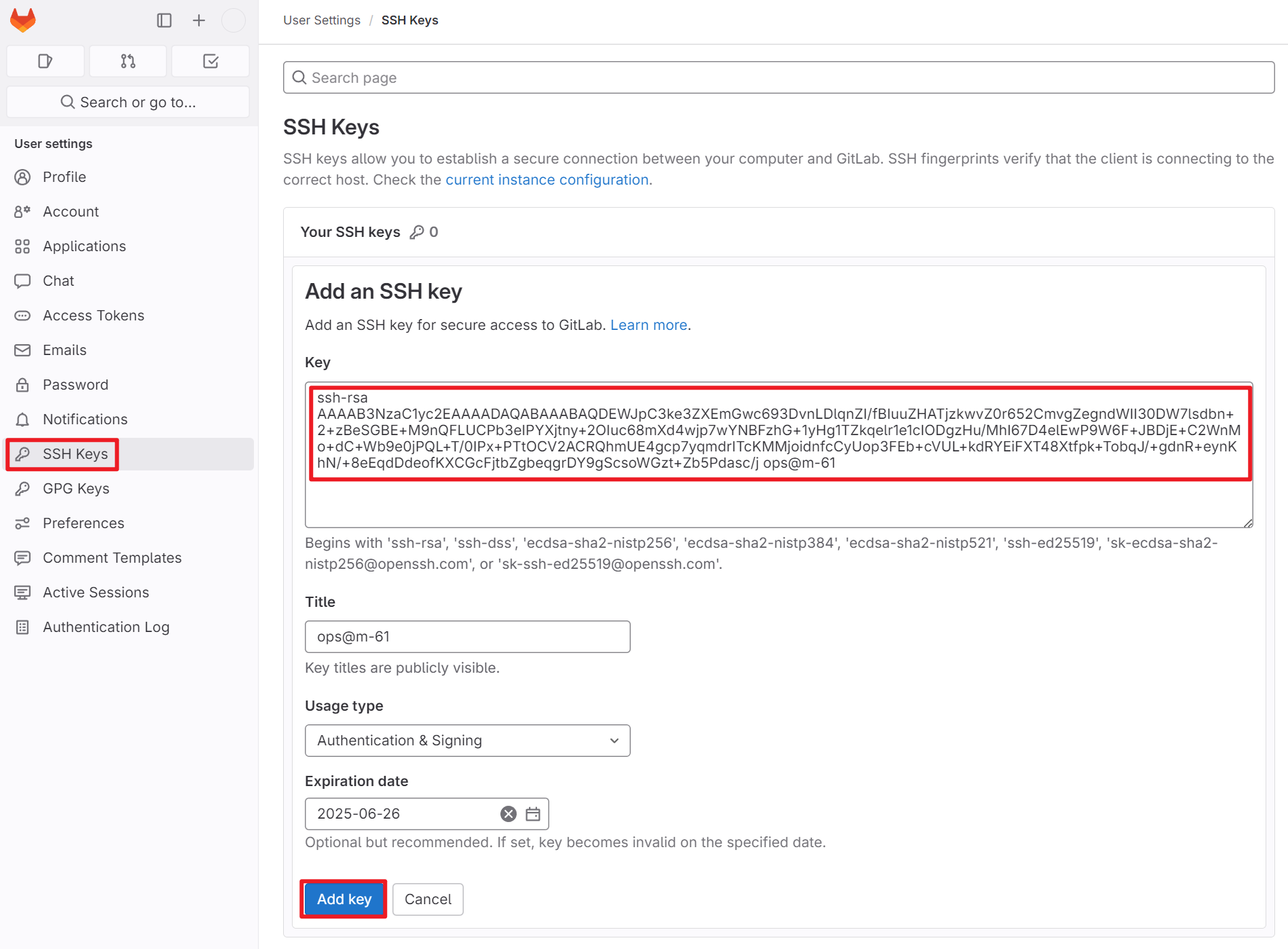

ops用户添加公钥

7.3 克隆项目​

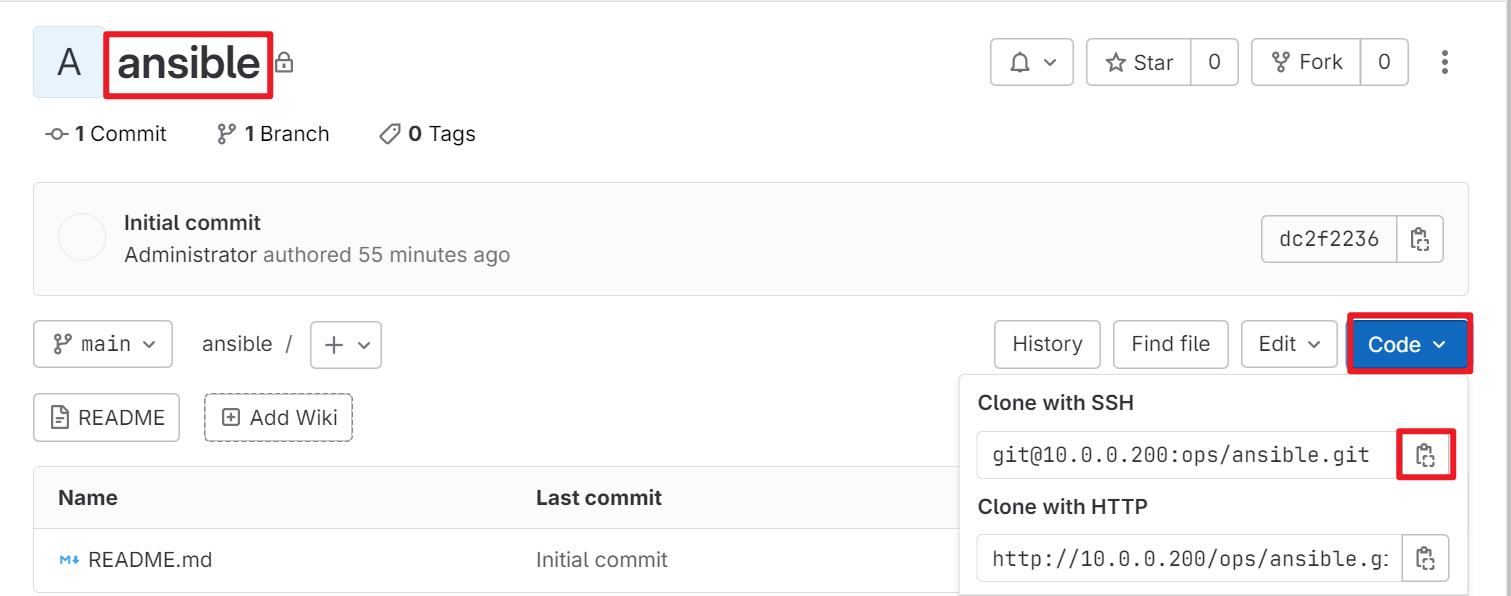

克隆代码


[ops@m-61 ~]$ git clone git@10.0.0.200:ops/ansible.git
Cloning into 'ansible'...
The authenticity of host '10.0.0.200 (10.0.0.200)' can't be established.
ECDSA key fingerprint is SHA256:4bnum+vhLl+fHDM+WUxdjAs9Jf48mKwMHvpxkKT+FEY.
ECDSA key fingerprint is MD5:8b:cc:8c:66:84:af:09:b7:5c:67:40:17:69:50:3a:73.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added '10.0.0.200' (ECDSA) to the list of known hosts.
remote: Enumerating objects: 3, done.
remote: Counting objects: 100% (3/3), done.
remote: Compressing objects: 100% (2/2), done.
remote: Total 3 (delta 0), reused 0 (delta 0), pack-reused 0
Receiving objects: 100% (3/3), done.

7.4 创建新分支并修改代码提交​

[ops@m-61 ~/ansible]$ git config --global user.email "ops@qq.com"
[ops@m-61 ~/ansible]$ git config --global user.name "ops"
[ops@m-61 ~]$ cd ansible/
[ops@m-61 ~/ansible]$ git checkout -b ops
Switched to a new branch 'ops'
[ops@m-61 ~/ansible]$ echo "v1" > init.yaml
[ops@m-61 ~/ansible]$ git add .
[ops@m-61 ~/ansible]$ git commit -m "add v1"
[ops 360d9c2] add v1
 1 file changed, 1 insertion(+)
 create mode 100644 init.yaml
[ops@m-61 ~/ansible]$ git push origin ops
Counting objects: 4, done.
Compressing objects: 100% (2/2), done.
Writing objects: 100% (3/3), 264 bytes | 0 bytes/s, done.
Total 3 (delta 0), reused 0 (delta 0)
remote:
remote: To create a merge request for ops, visit:
remote:   http://10.0.0.200/ops/ansible/-/merge_requests/new?merge_request%5Bsource_branch%5D=ops
remote:
To git@10.0.0.200:ops/ansible.git
 * [new branch]      ops -> ops

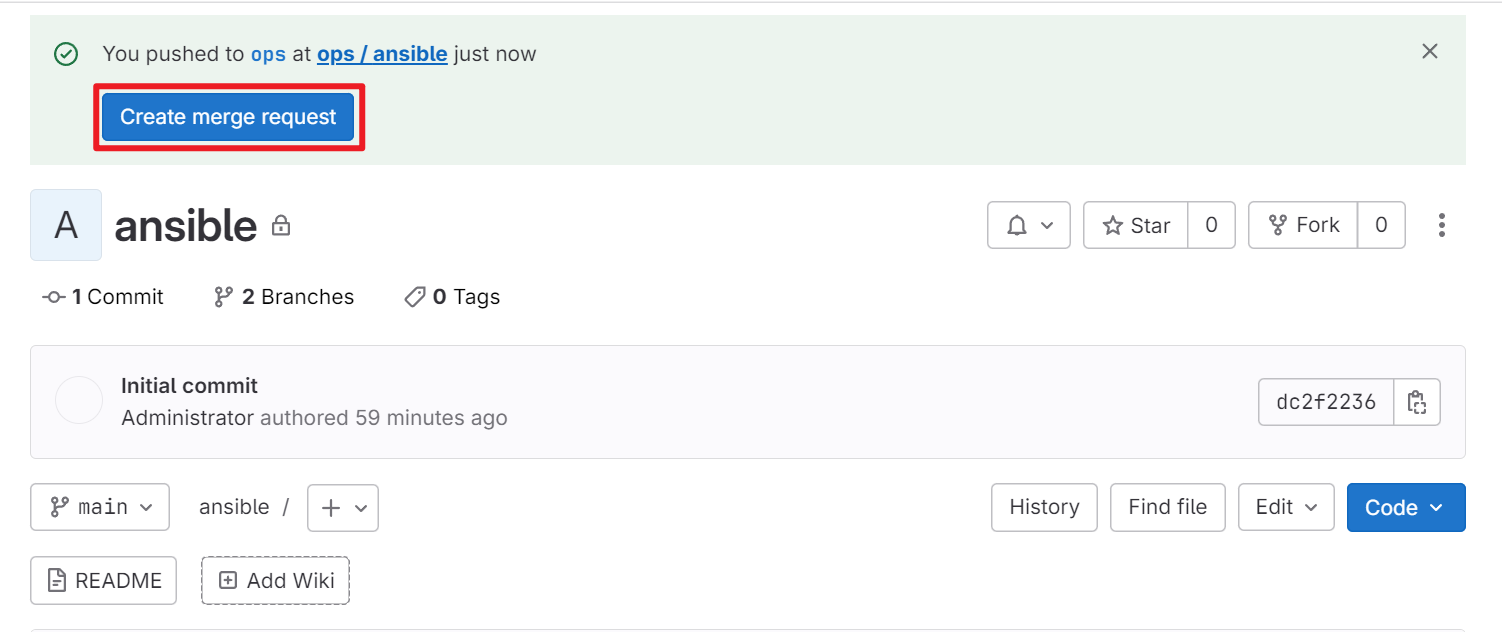

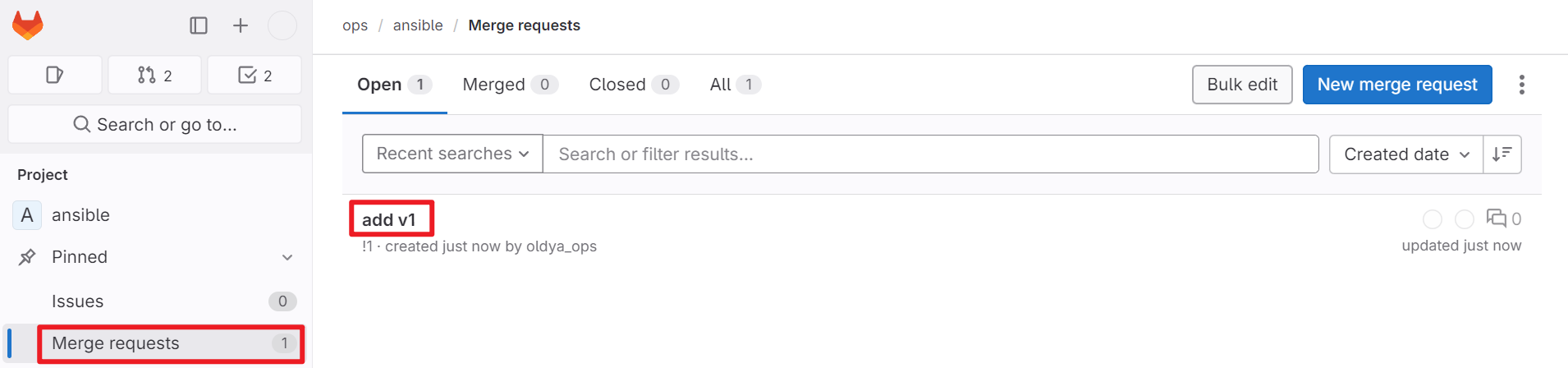

7.5 登录 GitLab 创建合并请求​

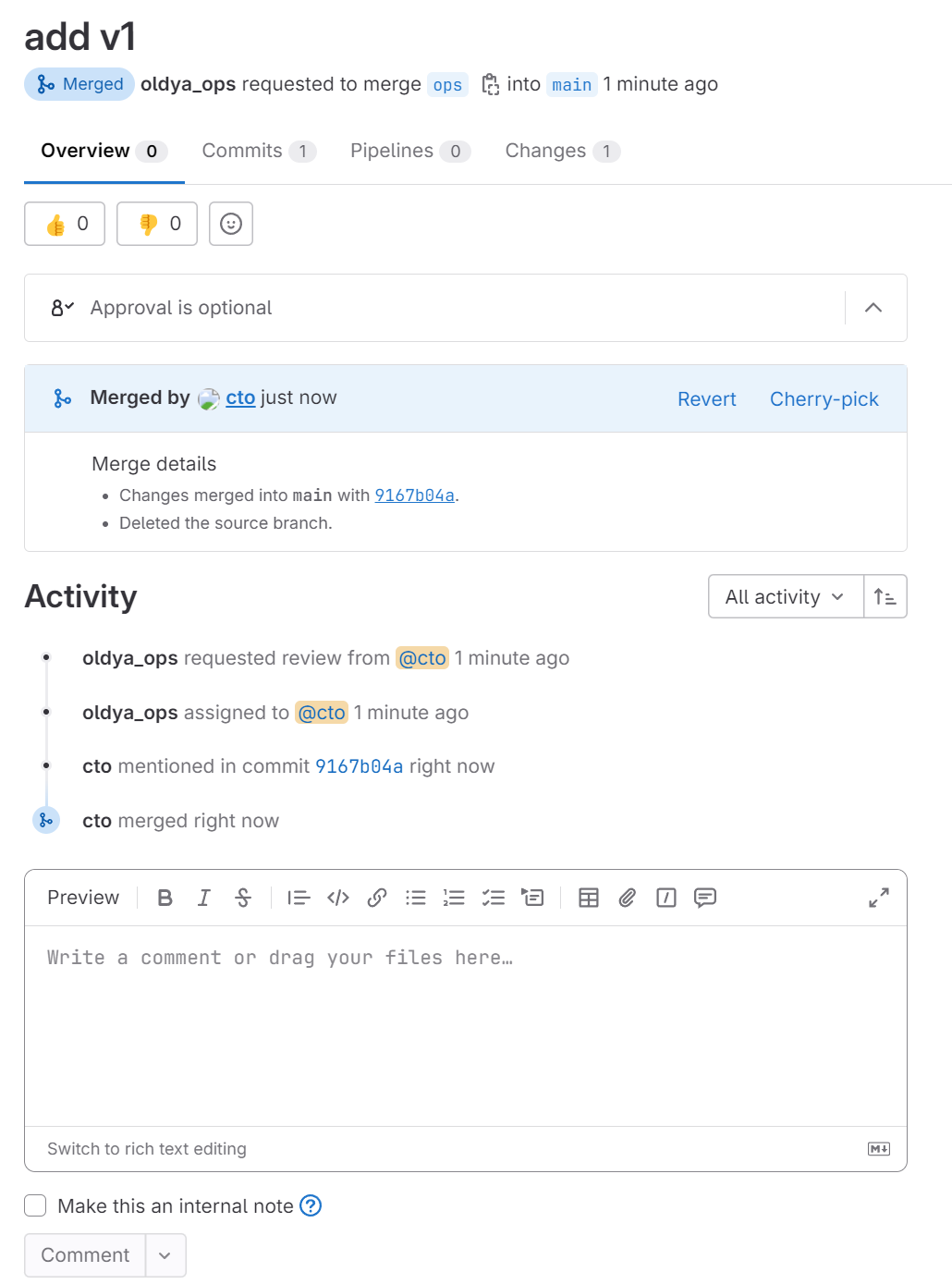

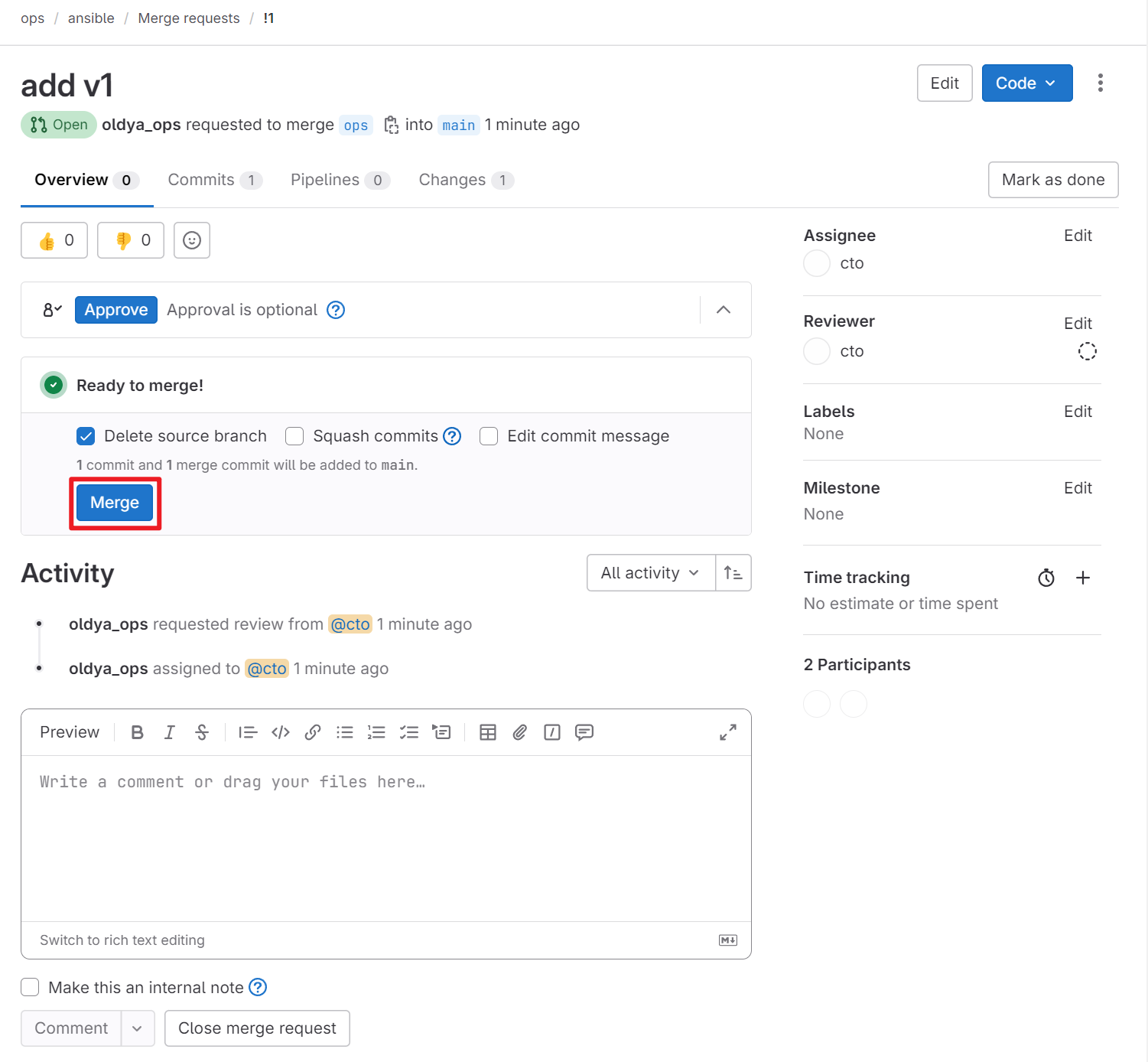

7.6 cto 用户合并分支​

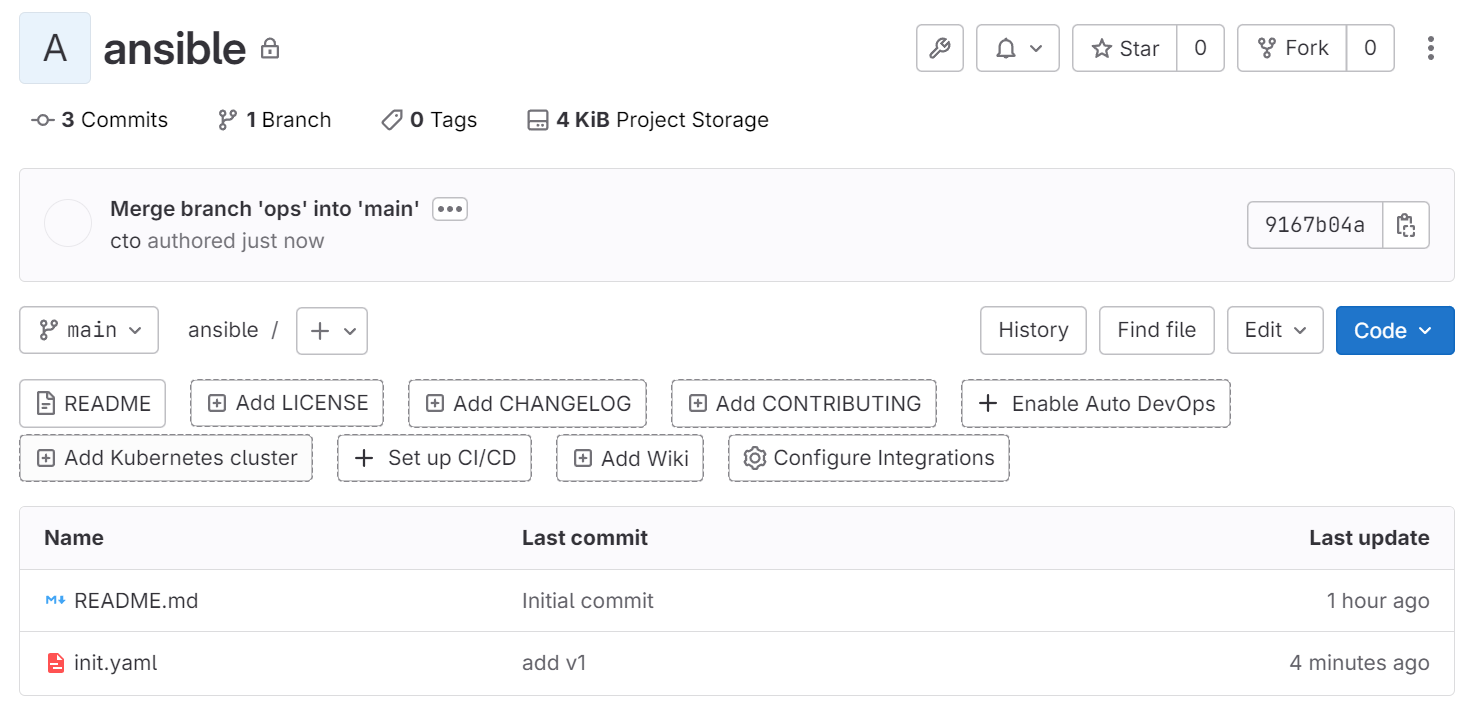

7.7 检查​


7.8 oldya_ops 测试能否修改上传 game 代码​

#ops用户可以正常克隆代码
[ops@m-61 ~]$ git clone git@10.0.0.200:dev/game.git
Cloning into 'game'...
remote: Enumerating objects: 7, done.
remote: Counting objects: 100% (7/7), done.
remote: Compressing objects: 100% (5/5), done.
remote: Total 7 (delta 0), reused 0 (delta 0), pack-reused 0
Receiving objects: 100% (7/7), done.

#进入项目目录
[ops@m-61 ~]$ cd game/

#切换新分支
[ops@m-61 ~/game]$ git checkout -b dev
Switched to a new branch 'dev'

#创建新文件
[ops@m-61 ~/game]$ echo v2 > index.html

#提交暂存区文件到本地仓库
[ops@m-61 ~/game]$ git add .
[ops@m-61 ~/game]$ git commit -m "add v2"
[dev 2848d8b] add v2
 1 file changed, 1 insertion(+), 1 deletion(-)

#提交到远程分支提示报错，没有提交权限
[ops@m-61 ~/game]$ git push origin dev
remote:
remote: ========================================================================
remote:
remote: You are not allowed to push code to this project.
remote:
remote: ========================================================================
remote:
fatal: Could not read from remote repository.

Please make sure you have the correct access rights
and the repository exists.
